Product Overview

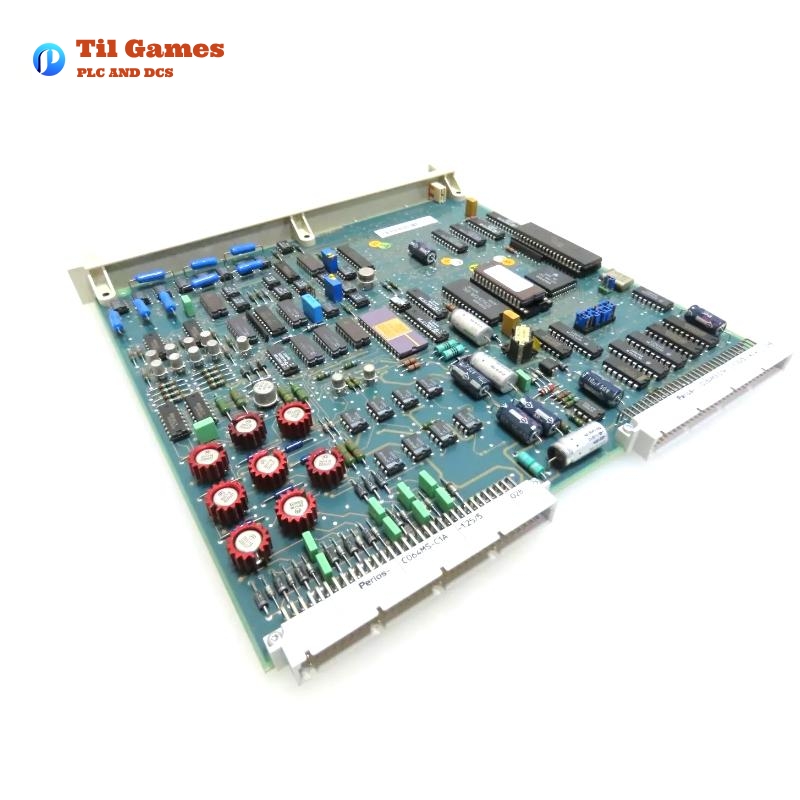

The ABB DSAX 110 (57120001-PC) is a high-precision Analog Input/Output Board designed for industrial automation and control systems. It provides reliable signal conditioning for analog sensors and actuators, ensuring accurate data acquisition and control in demanding environments.
This module is part of ABB’s extensive I/O portfolio, offering flexibility in voltage and current measurement with high resolution and low error margins. Its robust design makes it suitable for power generation, oil & gas, chemical processing, and manufacturing applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | DSAX 110 (57120001-PC) |
| Type | Analog Input/Output Board |
| Input Channels | 8 (single-ended, grounded) |
| Resolution | 12-bit |
| Input Ranges | 0 to +10V, 0 to +20mA, 4 to 20mA |
| Shunt Resistance | 250Ω (0.05% accuracy), 500Ω (0.1% with DSTA 001) |
| Dimensions (W x H x D) | 234 x 324 x 18 mm |
| Weight | 0.5 kg |
| Operating Temperature | -20°C to +70°C |
| Mounting | DIN rail or panel mounting |
| Isolation | Directly grounded inputs |
| Compliance | Industrial EMI/EMC standards |
Key Features
- High Accuracy: 12-bit resolution with 0.05% precision ensures reliable signal conversion.
- Versatile Input Ranges: Supports voltage (0-10V) and current (0/4-20mA) inputs.
- Compact & Lightweight: Slim profile (18mm depth) and 0.5kg weight allow easy integration.
- Robust Construction: Designed for harsh industrial environments with wide temperature tolerance.
- Easy Configuration: Plug-and-play compatibility with ABB control systems.
Advantages
✔ Precision Measurement: Minimizes signal distortion for critical process control.
✔ Flexible Integration: Compatible with multiple signal types (voltage/current).
✔ Low Maintenance: High reliability reduces downtime.
✔ Scalability: Part of a modular I/O system for expandable automation solutions.
Applications
- Process Automation: Monitoring pressure, temperature, and flow rates.
- Power Plants: Analog signal acquisition in turbine control systems.
- Oil & Gas: Level and pressure sensing in refineries.
- Manufacturing: Machine control and feedback systems.
- Water Treatment: pH and conductivity monitoring.
Latest News & Updates
Title: “ABB Enhances Industrial Automation with High-Accuracy DSAX 110 I/O Modules for Smart Manufacturing”
Summary: ABB continues to lead in industrial automation with the DSAX 110’s precision analog signal handling, now adopted in smart factories for real-time process optimization.
Recommended Related Models (ABB Series)
| Model | Type | Channels | Resolution | Input/Output Range | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| DSAI 130 | Analog Input | 16 | 16-bit | ±10V, 0-20mA | 234 x 324 x 18 | 0.6 kg |
| DSDO 120 | Digital Output | 32 | – | 24V DC, 0.5A | 234 x 324 x 18 | 0.55 kg |
| DSAO 140 | Analog Output | 8 | 12-bit | 0-10V, 4-20mA | 234 x 324 x 18 | 0.5 kg |
| DSDI 150 | Digital Input | 32 | – | 24V DC | 234 x 324 x 18 | 0.5 kg |
| DSMX 160 | Mixed Signal I/O | 8 AI, 8 DI | 12-bit AI | 0-10V, 24V DC | 234 x 324 x 18 | 0.65 kg |
| DSPX 170 | High-Speed Counter | 4 | 32-bit | 100kHz | 234 x 324 x 18 | 0.6 kg |
Top 6 ABB Models
| Model | Type | Channels | Resolution | Input/Output Range | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|---|
| DSAI 130 | Analog Input | 16 | 16-bit | ±10V, 0-20mA, 4-20mA | 234 x 324 x 18 | 0.6 kg | High precision, wide voltage range |
| DSAO 140 | Analog Output | 8 | 12-bit | 0-10V, 4-20mA | 234 x 324 x 18 | 0.5 kg | Low drift, industrial-grade |
| DSDI 150 | Digital Input | 32 | – | 24V DC (sink/source) | 234 x 324 x 18 | 0.5 kg | Fast response, high density |
| DSDO 120 | Digital Output | 32 | – | 24V DC, 0.5A per channel | 234 x 324 x 18 | 0.55 kg | Relay & transistor options |
| DSMX 160 | Mixed I/O | 8 AI, 8 DI | 12-bit AI | 0-10V, 24V DC | 234 x 324 x 18 | 0.65 kg | Hybrid analog/digital module |
| DSPX 170 | High-Speed Counter | 4 | 32-bit | Up to 100kHz | 234 x 324 x 18 | 0.6 kg | Encoder/Pulse input support |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the accuracy of the DSAX 110 analog input?
A1: The board offers 0.05% accuracy with a 250Ω shunt (0.1% with 500Ω shunt via DSTA 001).
Q2: Can it handle both voltage and current inputs?
A2: Yes, it supports 0-10V, 0-20mA, and 4-20mA inputs.
Q3: Is the DSAX 110 suitable for hazardous environments?
A3: While robust, it is not intrinsically safe. Additional barriers may be needed for hazardous areas.
Q4: What is the operating temperature range?
A4: It operates between -20°C to +70°C.
Q5: Does it require external signal conditioning?
A5: No, it has built-in signal conditioning for direct sensor connections.
Q6: Can it be used with non-ABB controllers?
A6: Compatibility depends on the communication protocol; consult ABB documentation.
Q7: What is the lifespan of this module?
A7: Designed for long-term use, typically 10-15 years with proper maintenance.
Q8: Is firmware upgradeable?
A8: No, the DSAX 110 is a fixed-function module without firmware updates.
