Product Overview

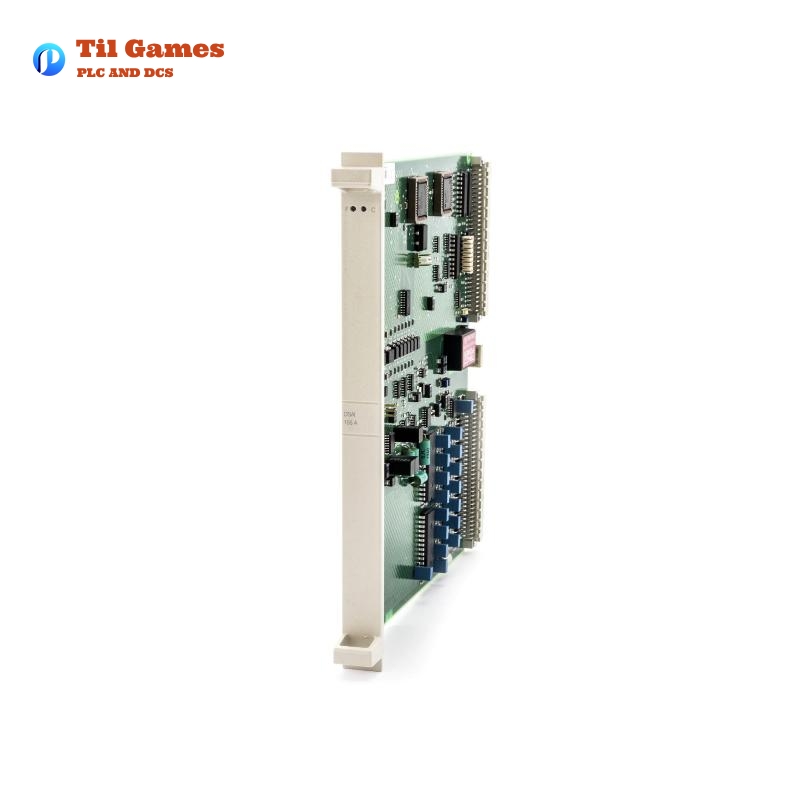

The ABB DSAI 155A 3BSE014162R1 is a high-performance thermocouple module designed for the Advant Master S100 I/O system. It provides precise temperature measurements, ensuring reliability and accuracy in industrial applications. The module is equipped with advanced signal processing capabilities, high disturbance immunity, and comprehensive self-diagnostics, making it ideal for demanding environments.
Product Features
-
High Accuracy & Resolution: Supports 14 measurement channels, 2 reference channels, and 1 compensation channel, offering 12/13-bit resolution with a sign.
-
Broad Thermocouple Support: Compatible with multiple thermocouple types, including B, C, E, J, K, R, S, and T.
-
Robust Electrical Performance: Offers CMV ≤ 16V and CMRR > 100 dB (at 50 Hz) for stable and interference-free operation.
-
Comprehensive Self-Diagnostics: Detects faults in real time with LED indicators and system alarms.
-
Hot-Swappable: Supports online module replacement without disrupting system operations.
-
High Disturbance Immunity: Compliant with EU directives 2014/30/EU and 2014/35/EU, ensuring reliability in harsh industrial environments.
-
Seamless Integration: Designed for Advant Controller 400 series, ensuring smooth communication and efficient data processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSAI 155A 3BSE014162R1 |
| Measuring Channels | 14 measuring, 2 reference, 1 compensation |
| Thermocouple Types | B, C, E, J, K, R, S, T |
| Resolution | 12/13 bits + sign |
| Common Mode Voltage (CMV) | ≤ 16 V |
| Common Mode Rejection Ratio (CMRR) | > 100 dB (at 50 Hz) |
| Module Type | Thermocouple Input |
| Dimensions | 255 x 15 x 363 mm |
| Weight | 0.5 kg |
| Compliance | EU Directives 2014/30/EU, 2014/35/EU |
Product Advantages
-
Reliability: Advanced fault detection and redundancy options ensure continuous operation.
-
Flexibility: Wide thermocouple compatibility allows it to be used in diverse industrial applications.
-
Scalability: Supports easy system expansion with Advant Master S100 I/O.
-
Ease of Maintenance: Hot-swappable feature minimizes downtime during servicing.
-
Enhanced Data Integrity: High noise immunity prevents signal corruption.
Applications
The ABB DSAI 155A module is ideal for industries requiring precise temperature monitoring, including:
-
Power Plants – Used for monitoring turbine and boiler temperatures.
-
Oil & Gas – Essential for process safety and temperature regulation.
-
Chemical Processing – Ensures accuracy in reaction temperature control.
-
Metallurgy – Used in furnaces and heat treatment processes.
-
Pharmaceuticals – Maintains critical temperature conditions for drug production.
Latest Industry News on DSAI 155A
-
“ABB Enhances Advant Master S100 I/O Series for Improved Industrial Automation.”
-
“Next-Generation Thermocouple Modules: ABB’s Answer to High-Accuracy Industrial Temperature Control.”
Related Models in the Same Series
Here are six related models from the ABB S100 I/O series with their key specifications:
| Model | Description | Channels | Input Type | Resolution | Dimensions |
|---|---|---|---|---|---|
| DSAI 130A | Analog Input Module | 16 | ±10V / ±20mA | 12-bit + sign | 255 x 15 x 363 mm |
| DSAI 133A1 | Analog Input Module | 32 | 0–10V / 0–20mA | 12-bit | 255 x 15 x 363 mm |
| DSAI 146 | RTD Temperature Module | 31 + 1 Ref | Pt100, 3-wire | 12-bit + sign | 255 x 15 x 363 mm |
| DSAO 120A | Analog Output Module | 8 | ±10V / ±20mA | 12-bit + sign | 255 x 15 x 363 mm |
| DSAO 130A | Analog Output Module | 16 | 0–20mA | 12-bit | 255 x 15 x 363 mm |
| DSAX 110A1 | Mixed Analog I/O | 8 In, 8 Out | 0–10V / 0–20mA | 12-bit | 255 x 15 x 363 mm |
Popular ABB Models
Here are six popular ABB automation modules used in industrial automation:
| Model | Description | Channels | Application | Dimensions |
|---|---|---|---|---|
| AC800M PM866 | Programmable Controller | Multi | Process Control | 270 x 50 x 300 mm |
| CI854A | Communication Module | Multi | PROFIBUS Connectivity | 255 x 15 x 363 mm |
| DSDI 110AV12 | Digital Input Module | 32 | Signal Processing | 255 x 15 x 363 mm |
| DSDO 115A | Digital Output Module | 32 | High-Speed Control | 255 x 15 x 363 mm |
| DSDP 150 | Pulse Counter Module | 12 | Position Control | 255 x 15 x 363 mm |
| DSDC 111 | Motor Speed Control Module | Multi | Motor Control | 255 x 15 x 363 mm |
FAQ
FAQs for ABB DSAI 155A 3BSE014162R1
Q1: What thermocouple types does the ABB DSAI 155A support?
A1: The module supports B, C, E, J, K, R, S, and T thermocouples.
Q2: Can the module be replaced while the system is running?
A2: Yes, the hot-swappable design allows replacement without shutting down the system.
Q3: What is the resolution of the ABB DSAI 155A module?
A3: The module provides 12/13-bit resolution with a sign for accurate measurements.
Q4: What industries use the ABB DSAI 155A module?
A4: It is widely used in power plants, oil & gas, chemical processing, metallurgy, and pharmaceuticals.
Q5: How does the module handle noise interference?
A5: It features a high Common Mode Rejection Ratio (CMRR > 100 dB at 50 Hz), making it highly resistant to electrical noise.
Q6: What communication system is the module compatible with?
A6: It is designed for Advant Master S100 I/O, ensuring smooth data integration.
Q7: Does the ABB DSAI 155A support redundancy?
A7: Yes, it can be configured for dual redundancy to enhance system availability.
Q8: What is the size and weight of the module?
A8: The dimensions are 255 x 15 x 363 mm, and it weighs 0.5 kg.
