Product Overview

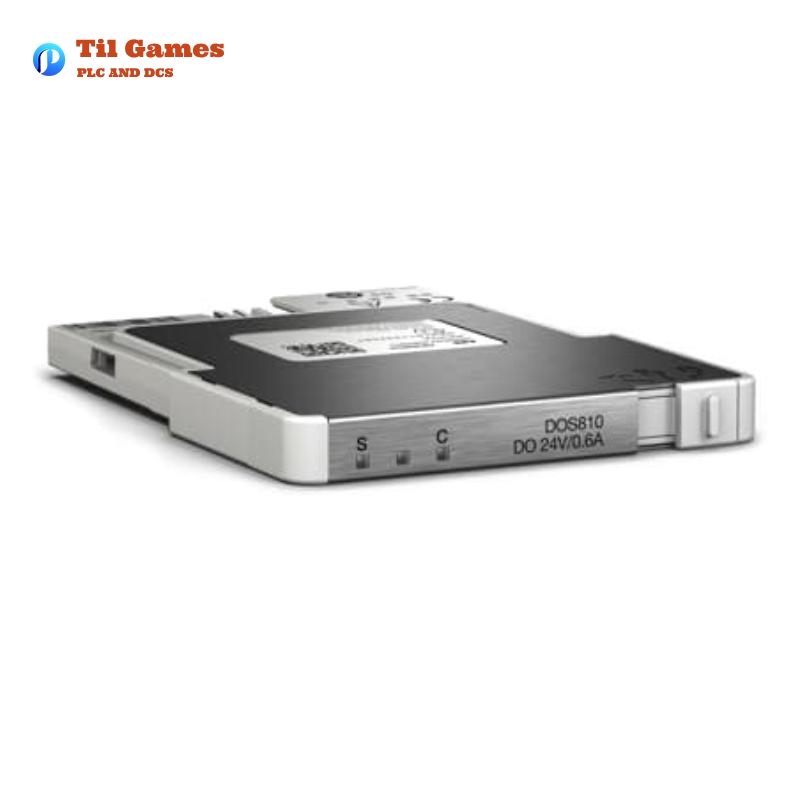

The ABB DOS810 (3BSE078768R1) is a Digital Output Signal Conditioning Module (SCM) designed for the ABB Ability™ System 800xA automation platform. It forms part of the Select I/O system, which provides single-channel granularity for flexible and efficient I/O configuration in industrial automation applications.
This module is specifically engineered for controlling 2-wire field devices with a 24V DC/0.6A current sourcing output. Its compact design, robust features, and advanced diagnostics make it suitable for various industrial environments, including hazardous areas.
Key Features
- Single-channel granularity: Each SCM handles one I/O channel, enabling precise control and easy maintenance.
- High reliability: Built-in diagnostics for loop supervision (open/short circuit), hardware errors, and power supply monitoring.
- Safety features: Short-circuit proof with electronic current limitation (0.6A), galvanic isolation, and protection against wrong wiring.
- Hot-swappable: Supports replacement without system shutdown, minimizing downtime.
- Field disconnect function: Allows galvanic separation for safe commissioning and maintenance.
- Mechanical keying: Prevents incorrect module insertion after commissioning.
- Inductive load suppression: Includes a free-wheeling diode for protecting connected devices.
- Wide operating temperature range: -40°C to +70°C, suitable for harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article Number | 3BSE078768R1 |
| Type | Digital Output Module |
| Channels | 1 |
| Output Signal | 24V DC / 0.6A (current sourcing) |
| Field Device Support | 2-wire |
| Isolation | Galvanic (tested at 3060V DC) |
| Redundancy Support | Yes |
| Hot Swap Support | Yes |
| HART Communication | No |
| SOE (Sequence of Events) | No |
| Input Voltage Range | 19.2V – 30V DC |
| Output Load Range | 40Ω – 5000Ω |
| Max Inductive Time Constant (L/R) | 50 ms |
| Power Dissipation | 0.36 W |
| Field Input Robustness | ±35V between all terminals |
| Dimensions (W × H × D) | 77.9 × 105 × 9.8 mm |
| Weight | 0.073 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Protection Class | IP20 |
| Certifications | CE, UKCA, IEC/EN 61000-6-2/4 |
Advantages
- Project Flexibility: Decouples engineering tasks, allowing late-stage changes without major rework.
- Standardization: Simplifies I/O cabinet design, reducing costs and lead times.
- Enhanced Diagnostics: Real-time monitoring ensures quick fault detection and resolution.
- Hazardous Area Compliance: Suitable for use in demanding industrial environments.
- Maintenance-Friendly: Hot-swappable design and field disconnect improve uptime.
Applications
- Process automation in oil & gas, chemical, and power industries.
- Discrete manufacturing control systems.
- Safety-critical applications requiring reliable digital outputs.
- Remote I/O configurations in distributed control systems (DCS).
Latest News Headline
“ABB Enhances Select I/O System with Advanced Diagnostics in DOS810 Module for Improved Industrial Automation Reliability”
Recommended Related/Alternative Models
ABB Select I/O Series
| Model | Type | Channels | Signal Specification | Key Feature |
|---|---|---|---|---|
| DIA810 (3BSE078769R1) | Digital Input | 1 | 24V DC | Wet/dry contact support |
| AIA810 (3BSE078770R1) | Analog Input | 1 | 0-20mA / 4-20mA | HART communication |
| AOA810 (3BSE078771R1) | Analog Output | 1 | 0-20mA / 4-20mA | High accuracy (±0.1%) |
| DIO810 (3BSE078772R1) | Digital I/O | 1 | 24V DC | Configurable input/output |
| TRA810 (3BSE078773R1) | RTD Input | 1 | Pt100/Pt1000 | 2/3/4-wire RTD support |
| TCA810 (3BSE078774R1) | Thermocouple Input | 1 | J/K/T/E/R/S | Cold junction compensation |
Popular ABB Models
| Model | Description | Key Parameters |
|---|---|---|
| PR6423-100 | Epro Sensor, Pressure Transmitter | 4-20mA, 1-6 bar, Stainless Steel, High Accuracy, Wide Temperature Range |
| BAILEY NIAO01 | Infi 90 I/O Term Module-Analog Output | Analog Output, 16-bit resolution, Redundant Power, Hazardous Area Certification |
| DO810 | Digital Output Module for ABB 800xA System | 24V DC, 0.6 A, Hot Swap, Field Device Protection, Galvanic Isolation |
| DOS820 | Digital Output Module for ABB Select I/O | 24V DC / 1 A, Short Circuit Protection, Diagnostics, Hot Swap |
| ABB 4408 | I/O Module for Industrial Control Systems | 4-20mA Inputs/Outputs, Loop Powered, Robust Design for Harsh Environments |
| ABB 5680 | High-Speed Digital Input/Output Module | 24V DC, 32 Channels, High-Speed I/O, Enhanced EMC Protection |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the DOS810 module suitable for use in hazardous areas?
A1: Yes, it is designed for installation in hazardous locations but does not include intrinsic safety (IS) barriers.
Q2: Can the DOS810 be replaced without shutting down the system?
A2: Yes, it supports hot swapping, allowing replacement during operation.
Q3: What diagnostics are available for this module?
A3: It provides loop supervision (open/short circuit), hardware errors, communication faults, and power supply monitoring.
Q4: Does the DOS810 support HART communication?
A4: No, this module does not support HART.
Q5: What is the maximum inductive load time constant supported?
A5: The module supports up to 50 ms (L/R) for inductive loads.
Q6: How is the module protected against incorrect wiring?
A6: It includes electronic current limitation and galvanic isolation to prevent damage from wiring errors.
Q7: Can the DOS810 be used in redundant configurations?
A7: Yes, it supports redundancy for critical applications.
Q8: What is the purpose of the mechanical locking slider?
A8: It ensures safe removal by cutting power to the field device before extraction.
