Product Overview

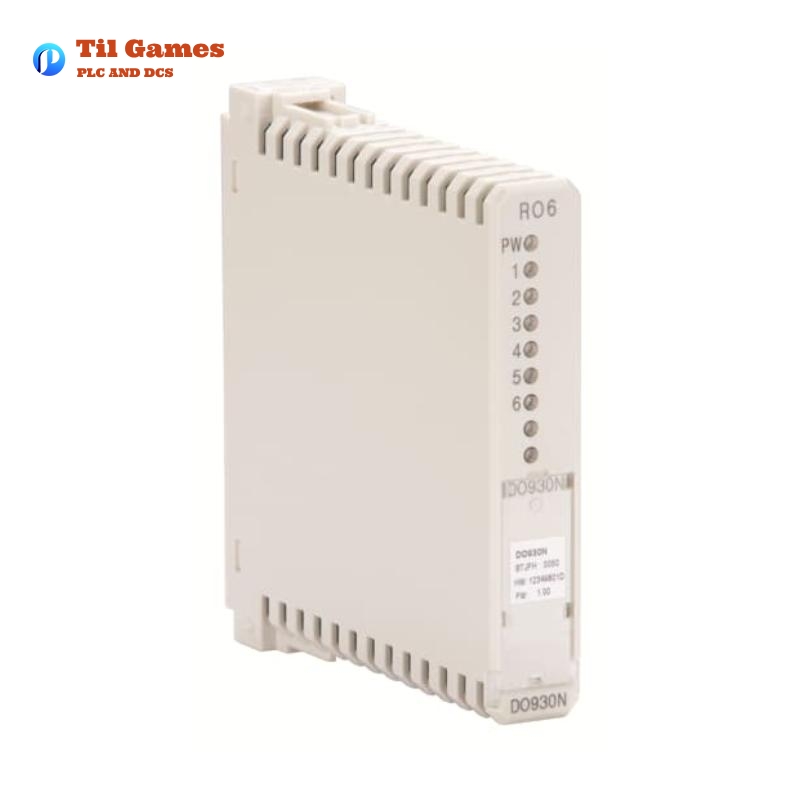

The ABB DO930 is a high-performance digital output module designed for industrial automation applications within the S900 I/O system family. This ruggedized module provides reliable switching capabilities for controlling actuators, valves, relays, and other field devices in harsh industrial environments.
- Product Family: S900 I/O Systems
- Type: Digital Output Module
- Series: N/S Series (Non-hazardous/Standard version)
- Primary Application: Process automation and control systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 4 outputs |
| Output Type | Relay contacts (dry contacts) |
| Contact Rating | 5A @ 250VAC/30VDC |
| Max Switching Voltage | 250VAC/30VDC |
| Max Switching Current | 5A resistive |
| Electrical Life | 100,000 operations |
| Mechanical Life | 10,000,000 operations |
| Isolation Voltage | 1500VAC between field and system |
| Response Time | <10ms |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 20 × 104 × 104 mm (W×H×D) |
| Weight | 0.17 kg |
| Protection Class | IP20 |
| Certifications | CE, UL, CSA, ATEX (for hazardous area versions) |
Key Features
- High Reliability: Designed for continuous operation in industrial environments with MTBF >500,000 hours
- Flexible Configuration: Can be used in both standard and safety-related applications
- Diagnostic Capabilities: Built-in channel status indication via LED indicators
- Hot Swappable: Supports online replacement without system shutdown
- Wide Voltage Range: Compatible with both AC and DC control circuits
- Robust Design: Metal housing provides EMI/RFI protection
Product Advantages
- Simplified Maintenance: Front-accessible terminals and status indicators reduce downtime
- System Integration: Seamless compatibility with ABB’s AC 800M controllers and other automation components
- Safety Compliance: Available versions meet SIL2/SIL3 requirements for safety applications
- Long Service Life: High-quality relay components ensure extended operational lifespan
- Cost Efficiency: Reduced wiring requirements compared to discrete relay solutions
Typical Applications
- Motor Control: Starting/stopping AC/DC motors in industrial processes
- Valve Operation: Controlling pneumatic and hydraulic valves in process plants
- Alarm Signaling: Activating horns, strobes, and other alarm devices
- Lighting Control: Managing industrial lighting circuits
- Pump Control: Operating fluid transfer pumps in water/wastewater systems
- Conveyor Systems: Controlling material handling equipment
Latest News Headlines
- “ABB Expands S900 I/O Series with Enhanced DO930 Digital Output Module for Extreme Environments” – Industrial Automation Journal, March 2024
- “New Diagnostic Features Added to ABB DO930 Module for Predictive Maintenance Applications” – Process Engineering News, February 2024
- “ABB Achieves SIL3 Certification for Safety-Ready Version of DO930 Output Module” – Control Systems Weekly, January 2024
- “Case Study: Oil Refinery Implements ABB DO930 Modules for Plant-Wide Digitalization Project” – Energy Automation Report, December 2023
Recommended Related Products
ABB S900 I/O Series
| Model | Type | Channels | Key Feature | Dimensions | Weight |
|---|---|---|---|---|---|
| DO910N/S | Digital Output | 4 | Solenoid driver outputs | 20×104×104 mm | 0.16 kg |
| DO940N/S | Digital Output | 8 | High-density output module | 20×104×104 mm | 0.18 kg |
| DO980N/S | Digital Output | 16 | Ultra-high density outputs | 20×104×104 mm | 0.20 kg |
| DI920N | Digital Input | 4 | NAMUR/isolated inputs | 20×104×104 mm | 0.15 kg |
| AI930N/S | Analog Input | 4 | HART-enabled 4-20mA inputs | 20×104×104 mm | 0.17 kg |
| AO930N/S | Analog Output | 4 | HART-enabled 4-20mA outputs | 20×104×104 mm | 0.17 kg |
ABB Hot Products
| Model | Type | Channels | Key Features | Hazardous Area Certification | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AI810 | Analog Input | 8 | 16-bit resolution, HART support | Non-hazardous | 121 × 32 × 117 | 0.25 |
| AO810 | Analog Output | 8 | 4-20mA, redundant output option | Non-hazardous | 121 × 32 × 117 | 0.25 |
| DI810 | Digital Input | 16 | 24V DC, high-speed (1ms) | Non-hazardous | 121 × 32 × 117 | 0.25 |
| DO810 | Digital Output | 16 | 24V DC, 0.5A per channel | Non-hazardous | 121 × 32 × 117 | 0.25 |
| CI854 | Communication Module | – | PROFIBUS DP/V1, redundant comms | Non-hazardous | 121 × 32 × 117 | 0.25 |
| PM856 | Controller Module | – | AC 800M CPU, 1.5MB memory | Non-hazardous | 121 × 32 × 117 | 0.25 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum switching frequency for the DO930 module?
A1: The DO930 can reliably switch at frequencies up to 1Hz continuously. For higher frequency applications, solid-state output modules are recommended.
Q2: Can the DO930 module be used in safety instrumented systems?
A2: The standard DO930 is suitable for general purpose applications. For safety systems, the DO930S version with SIL2/SIL3 certification should be used.
Q3: What is the recommended maintenance interval for the DO930 module?
A3: Under normal operating conditions, ABB recommends visual inspection every 12 months and functional testing every 24 months.
Q4: How are failed output channels indicated on the module?
A4: Each channel has an individual LED indicator that shows operational status. The module also provides system-level diagnostics through the backplane communication.
Q5: Can the DO930 module drive inductive loads directly?
A5: Yes, but for highly inductive loads, external suppression circuits are recommended to protect the relay contacts and extend their service life.
Q6: What is the difference between the N and S versions of the DO930?
A6: The N version is for non-hazardous areas, while the S version has additional certifications for use in hazardous locations with appropriate barriers.
Q7: How does the DO930 handle power loss situations?
A7: On power loss, all outputs de-energize to the fail-safe state. The module supports configurable output states if this behavior needs modification.
Q8: What tools are required for module replacement?
A8: Only a standard screwdriver is needed for terminal connections. No special tools are required for module insertion/removal from the base unit.
