Product Overview

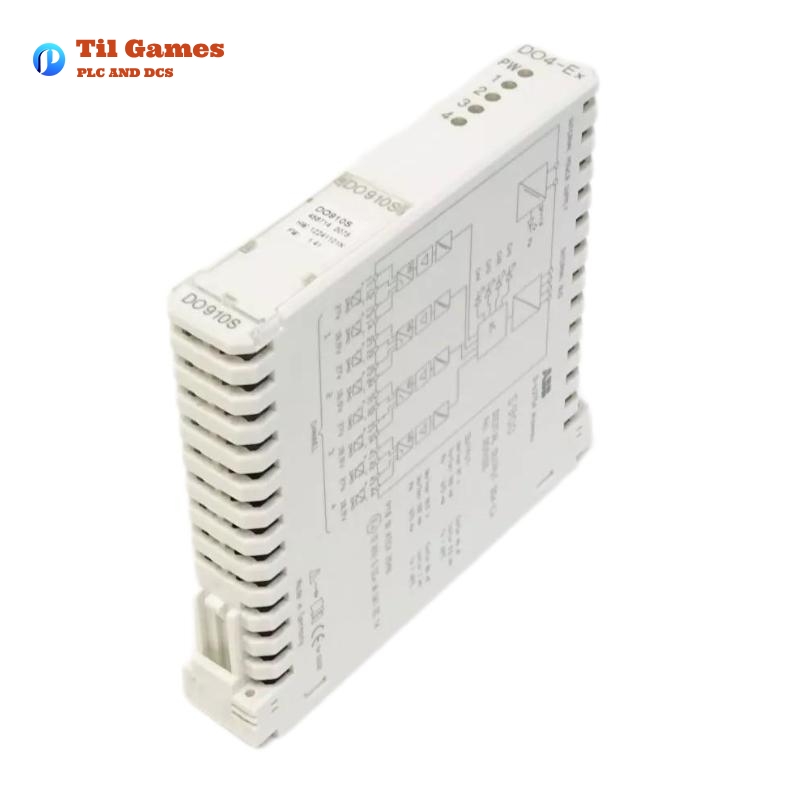

The ABB DO910S (3KDE175321L9100) is a robust Digital Output Module from the S900 I/O system, designed for industrial automation applications in hazardous and non-hazardous environments. It supports intrinsically safe (IS) field devices and is certified for installation in ATEX Zone 1. The module features 4 solenoid driver channels with integrated diagnostics, redundancy support, and hot-swappable functionality, making it ideal for critical process control applications.
Key Features
- ATEX Zone 1 Certified – Safe for use in explosive atmospheres.
- Hot-Swap & Redundancy – Supports power and communication redundancy with live replacement capability.
- Intrinsically Safe Outputs – Drives IS valves/alarms in Zone 0/1/2.
- Advanced Diagnostics – Short-circuit, break detection, and channel-to-channel isolation.
- G3 Coating – Corrosion-resistant for harsh environments (ISA-S71.04 G3 compliant).
- FDT/DTM Support – Simplified configuration and diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article Number | 3KDE175321L9100 |
| Type | Digital Output (Solenoid Driver) |
| Channels | 4 |
| Intrinsic Safety | Yes (Ex ia) |
| Redundancy | No |
| Hazardous Location | ATEX Zone 1 |
| Operating Temperature | -20°C to +60°C |
| Humidity | Up to 93% RH at 40°C |
| Dimensions (H × W × D) | 20 × 104 × 104 mm |
| Weight | 0.135 kg |
| Communication Protocol | PROFIBUS DP |
| Electrical Isolation | Channel-to-channel, output/bus, output/power |
| RoHS/WEEE Compliance | DIRECTIVE/2011/65/EU, DIRECTIVE/2012/19/EU |
| Corrosion Protection | ISA-S71.04 G3 |
Advantages
- Reduced Wiring Costs – Direct field installation eliminates marshalling cabinets.
- High Availability – Hot-swap and redundancy minimize downtime.
- Extended Diagnostics – Real-time fault detection for proactive maintenance.
- Flexible Deployment – Suitable for Zone 0/1/2 with IS barriers.
- Durability – G3 coating ensures longevity in corrosive environments.
Applications
- Oil & Gas – Control of IS valves in hazardous zones.
- Chemical Plants – Solenoid-driven shutdown systems.
- Power Generation – Emergency alarm circuits.
- Pharmaceutical – Safe automation in classified areas.
- Water/Wastewater – Remote actuator control.
Latest News Headline
“ABB S900 I/O System Enhances Safety in Hazardous Areas with DO910S Digital Output Module”
Recommended Related ABB S900 I/O Modules
| Model | Type | Channels | Intrinsic Safety | Key Feature |
|---|---|---|---|---|
| DI910S | Digital Input | 8 | Yes (Ex ia) | Zone 1, Hot-Swap |
| AI920S | Analog Input | 4 | Yes (Ex ia) | HART Support |
| AO920S | Analog Output | 4 | Yes (Ex ia) | Redundant Outputs |
| RTD910S | RTD Input | 4 | Yes (Ex ia) | Pt100/Pt1000 |
| TC920S | Thermocouple Input | 4 | Yes (Ex ia) | J/K/T/E Support |
| PS915 | Power Supply | – | No | Redundant 24V DC |
Top 6 ABB Modules
| Model | Type | Channels | Key Features | Hazardous Area Certification | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AI810 | Analog Input | 8 | 16-bit resolution, HART support | Non-hazardous | 121 × 32 × 117 | 0.25 |
| AO810 | Analog Output | 8 | 4-20mA, redundant output option | Non-hazardous | 121 × 32 × 117 | 0.25 |
| DI810 | Digital Input | 16 | 24V DC, high-speed (1ms) | Non-hazardous | 121 × 32 × 117 | 0.25 |
| DO810 | Digital Output | 16 | 24V DC, 0.5A per channel | Non-hazardous | 121 × 32 × 117 | 0.25 |
| CI854 | Communication Module | – | PROFIBUS DP/V1, redundant comms | Non-hazardous | 121 × 32 × 117 | 0.25 |
| PM856 | Controller Module | – | AC 800M CPU, 1.5MB memory | Non-hazardous | 121 × 32 × 117 | 0.25 |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the DO910S be used in Zone 0?
A1: No, it is certified for Zone 1, but it can control IS devices installed in Zone 0 when used with appropriate barriers.
Q2: Does it support PROFIBUS PA?
A2: No, it uses PROFIBUS DP for communication.
Q3: Is the module hot-swappable?
A3: Yes, it supports Hot-Swap without shutting down the system.
Q4: What is the maximum load per channel?
A4: Refer to the datasheet; typically 2A per channel for solenoid driving.
Q5: Is redundancy possible for DO910S?
A5: The module itself does not support redundancy, but the S900 system allows power/communication redundancy.
Q6: What is the G3 coating?
A6: A corrosion-resistant protection layer compliant with ISA-S71.04 G3 for harsh environments.
Q7: Can it be used in non-hazardous areas?
A7: Yes, it is suitable for both hazardous (Zone 1) and non-hazardous installations.
Q8: Does it require external IS barriers?
A8: No, it has integrated IS protection for connected devices.
