Technical Specifications
| Parameter | Value |
|---|---|

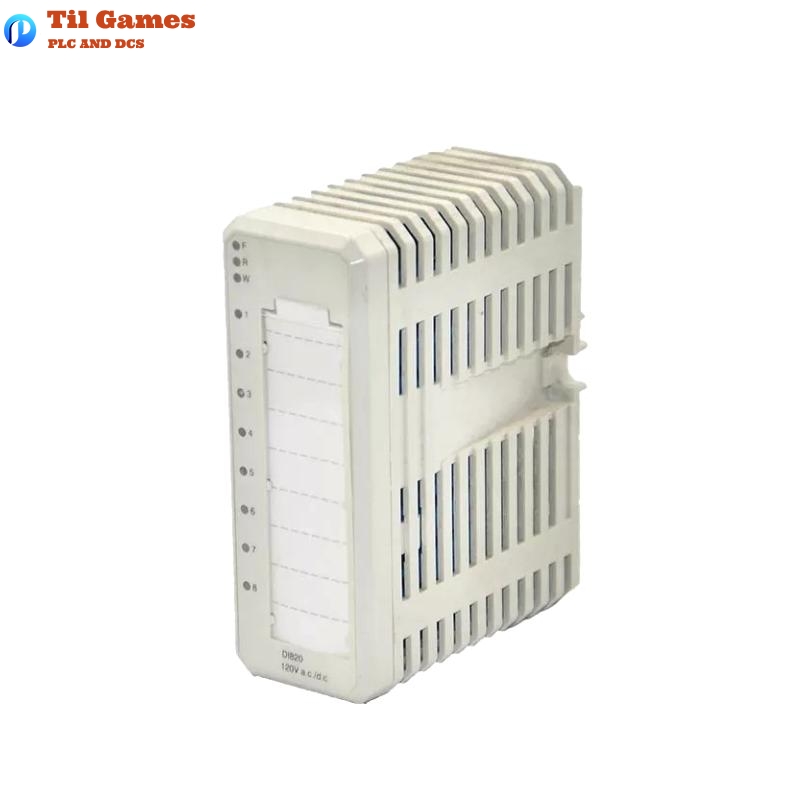

| Module type | Digital Input Module |
| Part number | 3BSE008512R1 |
| System | S800 I/O |
| Number of channels | 8 |
| Rated voltage | 120 V AC / 110 V DC |
| Input voltage range “1” | 77–130 V AC / 75–145 V DC |
| Input voltage range “0” | 0–30 V AC / 0–20 V DC |
| Nominal input current | 10 mA at 120 V AC / 2.8 mA at 110 V DC |
| Frequency range | 47–63 Hz (AC) |
| Input impedance | 12 kΩ (AC), 39 kΩ (DC) |
| Isolation | Individually isolated channels |
| Dielectric test voltage | 2000 V AC |
| Insulation voltage | 250 V |
| Process voltage supervision | Channel 1 and 8 |
| Filter time (selectable) | 2, 4, 8, 16 ms (digital) |
| Analog filter (on/off delay) | 5 ms / 18 ms |
| Max. field cable length | 200 m (AC), 600 m (DC) |
| Current consumption | 50 mA @ 5 V (ModuleBus) |
| Power dissipation | 2.8 W (typical at 70% active channels) |
| MTU compatibility | TU811, TU813, TU831, TU839, TU851 |
| MTU keying code | AB |
| Protection rating | IP20 (IEC 60529) |
| Dimensions (W x H x D) | 45 x 102 x 119 mm |
| Weight | 0.18 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the typical application of the DI820 module?
A1: The DI820 is used in industrial automation systems for detecting digital signals such as switch positions or alarms operating at 120 V AC or 110 V DC.
Q2: How many input channels does the DI820 have?
A2: It has 8 individually isolated digital input channels.
Q3: What MTUs are compatible with this module?
A3: It supports TU811, TU813, TU831, TU839, and TU851 module termination units.
Q4: Can the DI820 module detect input voltage supervision?
A4: Yes, channels 1 and 8 can be used for input voltage supervision of channels 2–4 and 5–7 respectively.
Q5: Is channel isolation provided in this module?
A5: Yes, each input channel is individually isolated to ensure signal integrity and protection.
Q6: What filtering capabilities does this module support?
A6: It offers selectable digital filter times of 2, 4, 8, or 16 ms, along with analog filtering.
Q7: What are the dimensions and weight of the module?
A7: It measures 45 x 102 x 119 mm and weighs 0.18 kg.
Q8: What is the operating frequency range for AC signals?
A8: The acceptable frequency range for AC inputs is 47 to 63 Hz.
