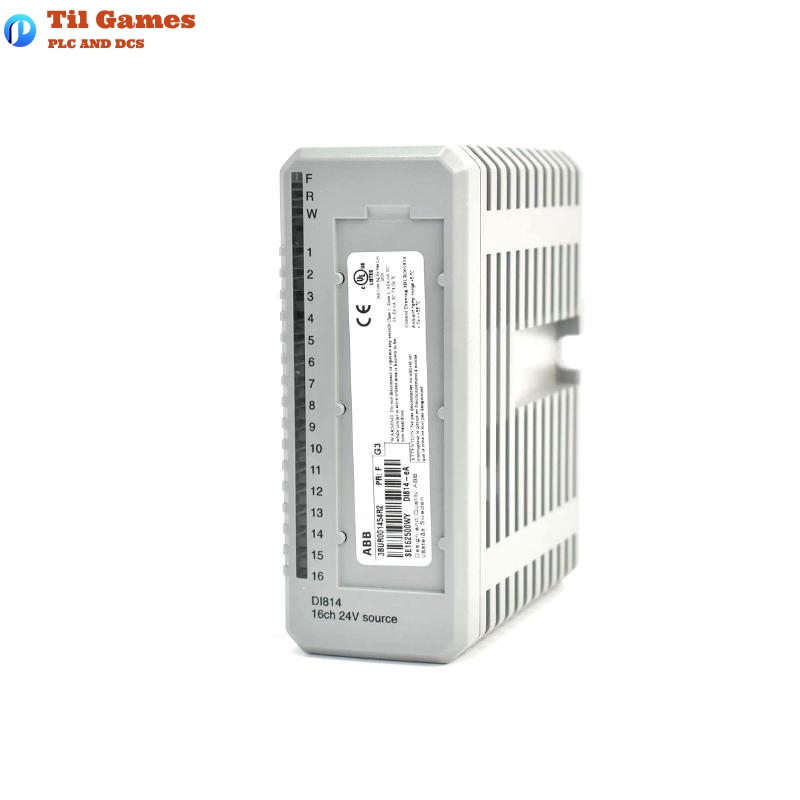

Technical Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 16 (2 groups of 8), current sourcing |
| Rated Voltage | 24 V DC (range: 18 to 30 V DC) |
| Input Voltage Range (“1”) | 15 to 30 V DC |
| Input Voltage Range (“0”) | -30 to +5 V DC |
| Nominal Input Channel Current | 6 mA @ 24 V DC |
| Input Current (“1”) | > 3.0 mA |
| Input Current (“0”) | < 1.0 mA |
| Input Impedance | 3.5 kΩ |
| Digital Filter Times | Selectable: 2, 4, 8, 16 ms |
| Voltage Supervision | 2 channels (1 per group) |
| Current Consumption (5 V, Modulebus) | 50 mA |
| Power Dissipation | 1.8 W |
| Isolation | Groupwise isolated from ground |
| Module Termination Units (MTU) | TU810, TU812, TU814, TU830, TU838 |
| MTU Keying Code | BE |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Maximum Field Cable Length | 600 meters |
| Protection Class | IP20 (IEC 60529) |
| Module Dimensions (W × H × D) | 127.5 × 186 × 59 mm |
| Module Weight | 0.15 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of digital input does the DI814 module support?
A1: It supports 24 V DC digital inputs with current sourcing type.
Q2: How many channels does the DI814 module provide?
A2: It offers 16 channels, split into two isolated groups of 8.
Q3: What is the input current level required to register a logical “1”?
A3: An input current greater than 3.0 mA is required.
Q4: Is the module protected against noise or transient signals?
A4: Yes, digital filtering is available with selectable filter times of 2, 4, 8, or 16 ms.
Q5: Can the module detect loss of field voltage?
A5: Yes, it includes voltage supervision per group and reports errors via ModuleBus.
Q6: What is the power dissipation of the module?
A6: The module dissipates 1.8 W under normal operating conditions.
Q7: What types of MTUs can be used with DI814?
A7: Compatible MTUs include TU810, TU812, TU814, TU830, and TU838.
Q8: What is the physical size and weight of the DI814 module?
A8: The module measures 127.5 × 186 × 59 mm and weighs 0.15 kg.
