Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Digital Input Module |

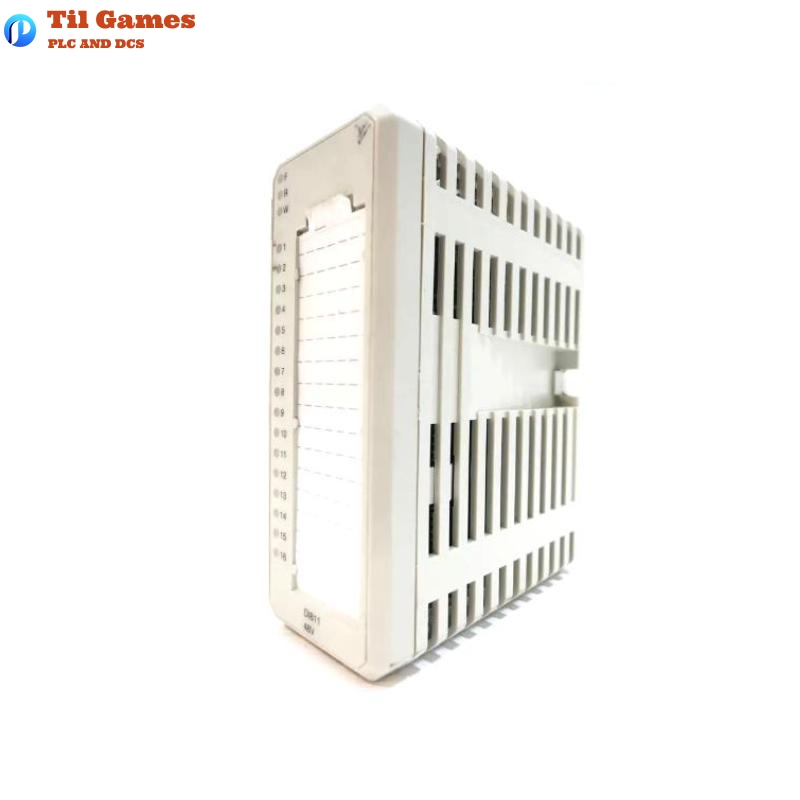

| Model | DI811 |
| Number of Channels | 16 channels (2 groups of 8 each) |
| Input Type | Current sinking |
| Rated Voltage | 48 V DC (Operating range: 36 to 60 V DC) |
| Input Signal Voltage “1” | 30 to 60 V DC |
| Input Signal Voltage “0” | -60 to +10 V DC |
| Nominal Input Channel Current | 4 mA @ 48 V DC |
| Input Current “1” | > 2.0 mA |
| Input Current “0” | < 0.5 mA |
| Input Impedance | 11 kΩ |
| Max Field Cable Length | 600 meters (656 yards) |
| Filter Times (Selectable) | 2, 4, 8, 16 ms |
| Process Voltage Supervision | 2 channels (1 per group) |
| Power Consumption (5V) | 50 mA (Modulebus) |
| Power Dissipation | 2.7 W (70% of channels active @ 48 V DC) |
| Isolation | Groupwise isolated from ground |
| MTU Compatibility | TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850 |
| MTU Keying Code | BD |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Dimensions (W x D x H) | 45 x 102 x 119 mm |
| Weight | 0.24 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range of the DI811 module?
A1: The input voltage range is 36 to 60 V DC, with 48 V DC recommended.
Q2: What is the current per input channel?
A2: Nominal input current is 4 mA at 48 V DC.
Q3: What are the available filter times?
A3: Filter times can be set to 2, 4, 8, or 16 milliseconds.
Q4: Does the DI811 module provide voltage supervision?
A4: Yes, it includes two supervision channels, one per input group.
Q5: What is the maximum field cable length supported?
A5: Up to 600 meters.
Q6: Which MTU types are compatible with DI811?
A6: TU810, TU812, TU814, TU818, TU830, TU833, TU838, and TU850.
Q7: How are the input channels grouped and isolated?
A7: The 16 channels are divided into 2 groups of 8, with isolation between groups and from ground.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 45 x 102 x 119 mm, and the weight is 0.24 kg.
