Technical Specifications
| Item | Description |
|---|---|

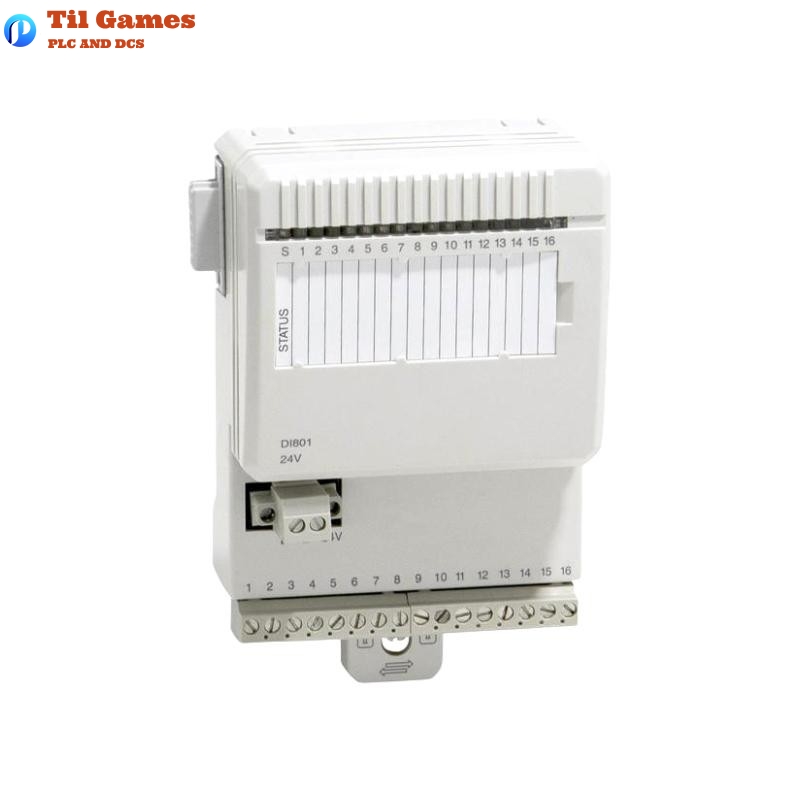

| Model | DI801 |
| Type | Digital Input Module |
| Rated Voltage | 24 V DC |
| Input Type | Current Sinking |
| Input Channels | 16 digital input channels |
| Signal Type | 24 V DC digital signal |
| Input Current | 7 mA (@ 24 V DC) |
| Electrical Isolation | Two isolated groups of 8 channels each |
| Channel Indicators | One LED per channel showing signal state |
| EMC Protection | Yes, each channel is EMC protected |
| Optical Isolation | Yes, between channels and ModuleBus |
| Voltage Supervision | One channel can be used for sensor voltage monitoring |
| Mounting Method | DIN rail mounting |
| Dimensions | 86.1 × 58.5 × 110 mm |
| Weight | 0.24 kg |
| Status LEDs | FAULT (red), RUN (green), WARNING (yellow) |
| System Compatibility | ABB S800L I/O systems |
| ModuleBus Address | Automatically assigned without jumper or switch |
FAQ
Frequently Asked Questions (FAQ – English)
Q1: Is the DI801 a sourcing or sinking input module?
A1: The DI801 is a current sinking input module.
Q2: How many input channels does the DI801 provide?
A2: It provides 16 digital input channels.
Q3: Do all channels have LED status indicators?
A3: Yes, each input channel includes an LED for status indication.
Q4: Does the DI801 have optical isolation?
A4: Yes, optical isolation is provided between the channels and the ModuleBus.
Q5: How is the DI801 module mounted?
A5: It is mounted directly on a standard DIN rail.
Q6: What are the input voltage and current specifications?
A6: The input voltage is 24 V DC, and the input current is approximately 7 mA.
Q7: Is sensor voltage supervision supported?
A7: Yes, one input channel can be configured for sensor voltage supervision.
Q8: What control systems is the DI801 compatible with?
A8: The DI801 is compatible with ABB’s S800 I/O systems, including the 800xA system.
