Product Specifications
| Parameter | Description |
|---|---|

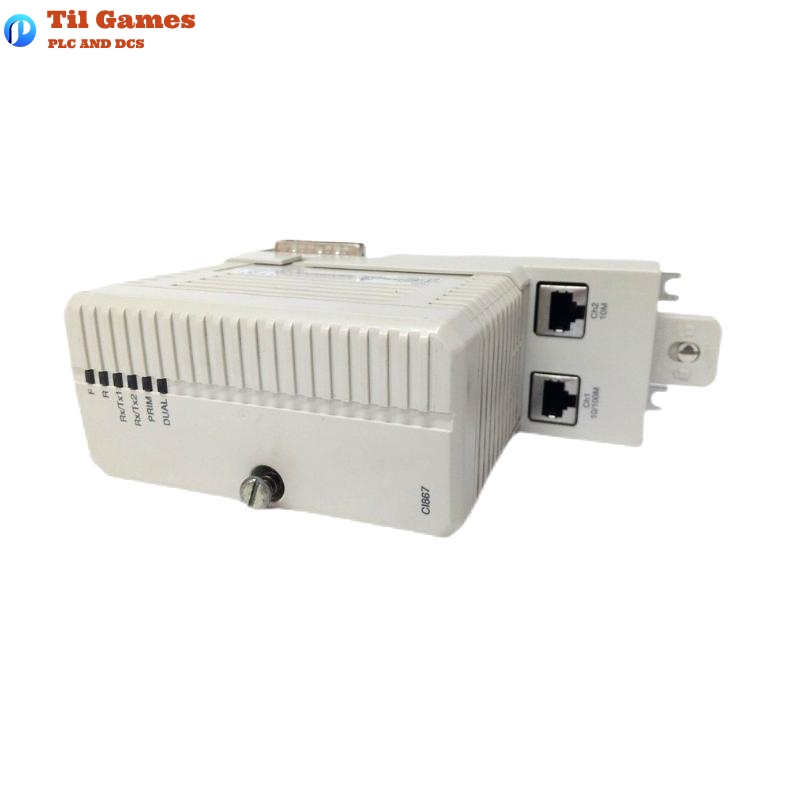

| Model | CI867AK01 3BSE092689R1 |
| Type | AC 800M Communication Interface Module |
| Communication Protocol | MODBUS TCP |
| Max Units on CEX Bus | 12 |
| Transmission Speed | 10/100 Mbit/s |
| Current Consumption | Typ 160 mA |
| Protection Class | IP20 (according to EN60529, IEC 529) |
| Dimensions | Width: 58mm, Height: 186mm, Depth: 135mm |
| Weight | 0.7 kg |
| Operating Conditions | Operating Temperature: +5 to +55°C, Storage Temperature: -40 to +70°C, Relative Humidity: 5-95%, non-condensing |
| Certification | CE, UL508, UL60079-15 (Class 1 Zone 2) certified |
FAQ
FAQ
Q1: What communication protocols does the CI867AK01 module support?
A1: The module supports the MODBUS TCP protocol.
Q2: What controllers is the CI867AK01 module compatible with?
A2: The module is compatible only with 800xA versions 6.0.3.3 and 6.1.1, Compact Control Builder versions 6.0.0-3 and 6.1.1, and later versions.
Q3: What is the maximum number of units supported by the CI867AK01 module?
A3: The CI867AK01 module supports up to 12 units on the CEX bus.
Q4: What is the current consumption of the CI867AK01 module?
A4: The typical current consumption is 160 mA.
Q5: Does the CI867AK01 module support hot swapping?
A5: Yes, the module supports hot swapping.
Q6: What is the protection class of the CI867AK01 module?
A6: The CI867AK01 module has a protection class of IP20, according to EN60529 and IEC 529 standards.
Q7: What is the operating temperature range of the CI867AK01 module?
A7: The operating temperature range is +5 to +55°C, and the storage temperature range is -40 to +70°C.
Q8: What is the weight of the CI867AK01 module?
A8: The CI867AK01 module weighs 0.7 kg.
