Technical Specifications
| Parameter | Specification |
|---|---|
| Protocol | PROFIBUS DP-V1 |

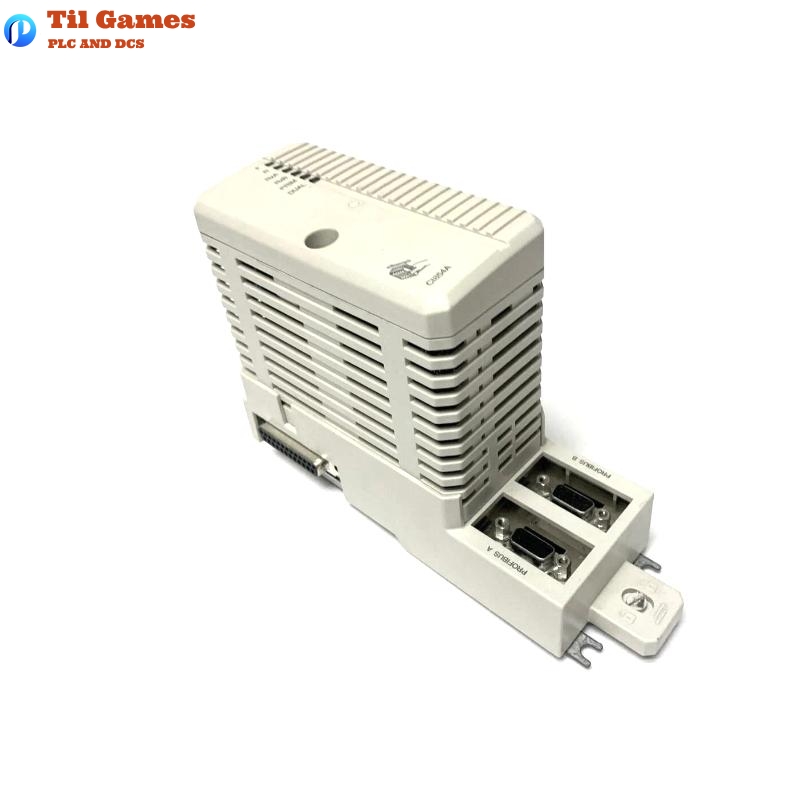

| Article Number | 3BSE030220R1 (CI854AK01) |
| Life Cycle Status | Classic |
| Master or Slave | Master |
| Number of Channels | 2 |
| Transmission Speed | 9.6 – 12,000 kbit/s |
| Line Redundancy | Yes |
| Module Redundancy | Yes |
| Hot Swap | Yes |
| Max Units on CEX Bus | 12 |
| Connector | DB female (9-pin) |
| Power Consumption | Typ. 190 mA |
| Operating Temperature | +5°C to +55°C (+41°F to +131°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (EN60529, IEC 529) |
| CE Mark | Yes |
| Marine Certificates | BV, DNV-GL, LR |
| RoHS Compliance | No |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
| Dimensions | Height 185 mm, Width 59 mm, Depth 127.5 mm |
| Weight | 700 g (including base) |
FAQ
FAQ
Q1: What communication protocol does the CI854A module support?
A1: The CI854A module supports the PROFIBUS DP-V1 protocol.
Q2: How many communication channels does the CI854A module have?
A2: The CI854A module has two communication channels.
Q3: Does the CI854A module support module redundancy?
A3: Yes, the CI854A module supports module redundancy.
Q4: What is the operating temperature range of the CI854A module?
A4: The operating temperature range of the CI854A module is +5°C to +55°C.
Q5: Does the CI854A module support hot swapping?
A5: Yes, the CI854A module supports hot swapping.
Q6: What is the maximum number of CEX bus units for the CI854A module?
A6: The maximum number of CEX bus units for the CI854A module is 12.
Q7: Is the CI854A module CE and RoHS certified?
A7: The CI854A module is CE certified but not RoHS certified.
Q8: What is the weight of the CI854A module?
A8: The weight of the CI854A module is 700 grams (including the base).
