Technical Specifications
| Parameter | Specification |
|---|---|

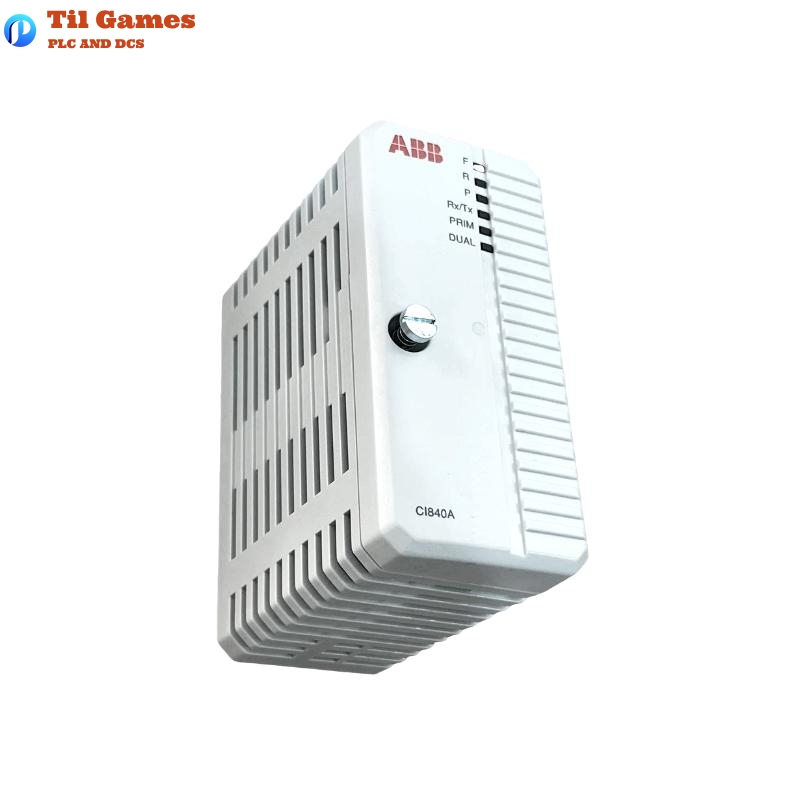

| Module Type | CI840A |
| Part Number | 3BSE041882R1 |
| Supported Fieldbus | PROFIBUS-DPV1 |
| Communication Mode | Redundant and Single PROFIBUS |
| Power Supply Voltage | 24 V DC (range: 19.2 – 30 V DC) |
| Rated Isolation Voltage | 50 V |
| Address Setting | Two rotary switches on the front panel |
| Service Ports | Two ports via TU846/TU847 |
| Status Indication | LED indicators for diagnostics and status |
| PROFIBUS Connectors | 2 × 9-pin D-sub connectors (for redundancy) |
| Mounting Base | TU846 (redundant I/O), TU847 (non-redundant I/O) |
| Supported Functions | Hot Configuration in Run (HCIR), HART pass-through |
| Optical ModuleBus Support | Yes, via TB806, TB842, or TB846 |
| ModuleBus Type | Optical and Electrical ModuleBus |
| Redundant Operation | Supported (module and bus level) |
| G3 Compliance | Available (CI840Z) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Class | IP20 (IEC 529) |
| Installation | DIN rail mounting |
| Dimensions (W x H x D) | 54 × 119 × 96 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the CI840A module?
A1: The CI840A acts as a Fieldbus Communication Interface (FCI) that connects S800 I/O modules to a PROFIBUS-DPV1 network, supporting both single and redundant communication configurations.
Q2: Can CI840A be used in redundant configurations?
A2: Yes, CI840A supports redundant communication and is typically mounted on the TU846 (for redundant I/O) or TU847 (for non-redundant I/O).
Q3: Does the CI840A support Hot Configuration in Run (HCIR)?
A3: Yes, CI840A supports HCIR, allowing configuration changes without stopping I/O operations.
Q4: Is HART protocol supported with CI840A?
A4: Yes, CI840A supports HART pass-through communication, enabling diagnostics and configuration of HART field devices.
Q5: What power supply range is required for CI840A?
A5: The module requires a 24 V DC supply, within an acceptable range of 19.2 to 30 V DC.
Q6: What is the function of the ModuleBus in CI840A?
A6: The ModuleBus is used for internal communication with S800 I/O modules, and it can be electrical or optical depending on the system design.
Q7: What optical components are compatible with the CI840A for ModuleBus expansion?
A7: TB806, TB842, or TB846 are used for optical ModuleBus connections with the CI840A.
Q8: Can CI840A be used in environments with stringent environmental requirements?
A8: Yes, the CI840Z version of this module complies with G3 environmental requirements according to ISA-S71.04.
