Technical Specifications
| Parameter | Details |
|---|---|

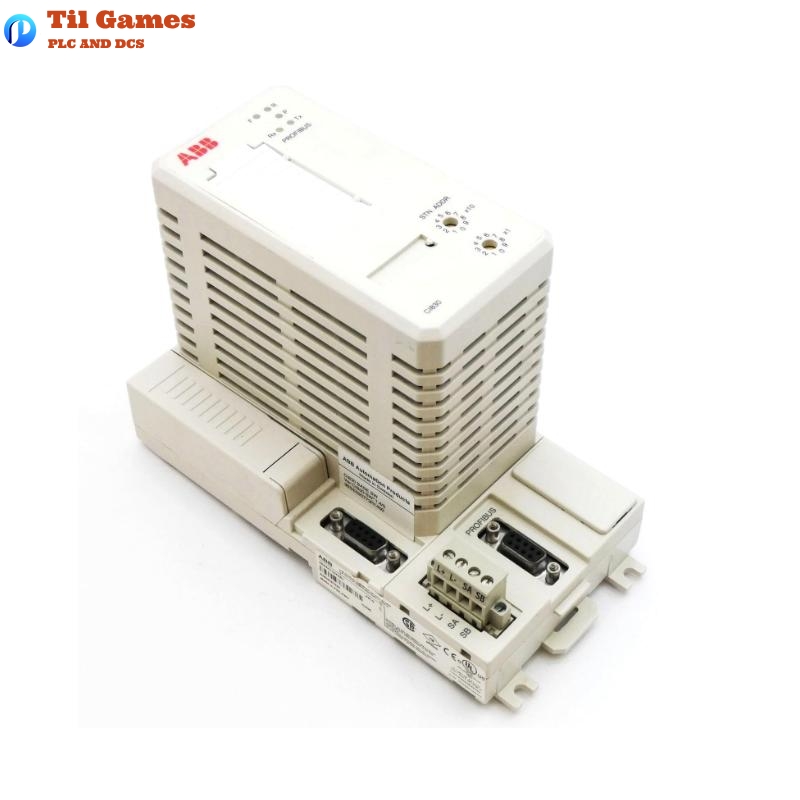

| Product Name | Communication Interface Module |
| Model Number | CI830 |
| Product ID | 3BSE013252R1 |
| System Compatibility | ABB System 800xA |
| Function | Enables communication with I/O units over PROFIBUS DP |
| Supported Protocols | PROFIBUS DP-V1 |
| Module Type | Communication Interface for S800 I/O |
| Mounting | DIN rail via TU830 or compatible termination unit |
| Power Supply | Supplied via the base (TU unit) |
| Redundancy Support | Yes (with paired CI830 modules) |
| Hot Swap Support | Yes |
| Baud Rate | 9.6 kbit/s to 12 Mbit/s |
| Number of I/O Channels | Dependent on connected I/O units |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock & Vibration | Compliant with IEC 60068 |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Firmware | Upgradable via Control Builder M |
| Dimensions | 59 mm (W) × 185 mm (H) × 128 mm (D) |
| Weight | 0.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB CI830 module?
A1: The CI830 module serves as a communication interface between the AC 800M controller and field I/O devices via PROFIBUS DP-V1.
Q2: Can CI830 be used in redundant configurations?
A2: Yes, CI830 supports redundancy when configured in pairs. This ensures uninterrupted communication in the event of a module failure.
Q3: What I/O systems are compatible with CI830?
A3: The CI830 is primarily used with ABB’s S800 I/O system for decentralized field I/O connectivity.
Q4: Does CI830 support hot swap functionality?
A4: Yes, CI830 can be hot-swapped, meaning it can be replaced during system operation without requiring a shutdown.
Q5: How is the CI830 powered?
A5: The CI830 receives its power supply from the termination unit (TU) to which it is mounted.
Q6: What is the maximum data transmission rate supported by CI830?
A6: The module supports PROFIBUS DP communication at baud rates up to 12 Mbit/s.
Q7: Is firmware upgradable on the CI830 module?
A7: Yes, firmware upgrades for CI830 are supported via ABB’s Control Builder M environment.
Q8: Can CI830 operate in harsh industrial environments?
A8: Yes, CI830 complies with IEC standards for industrial use and is tested against shock, vibration, and EMC disturbances.
