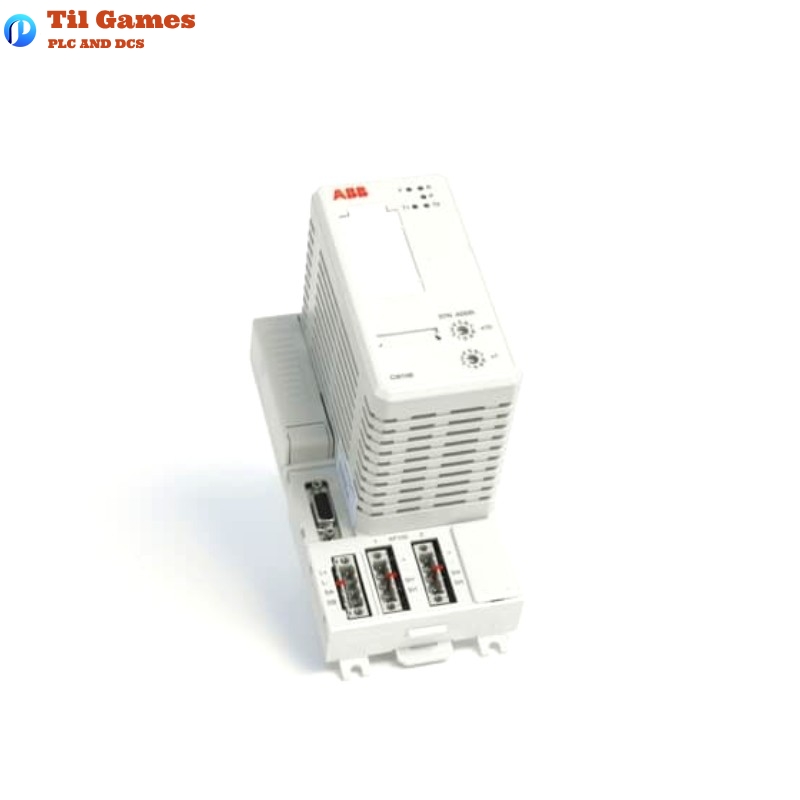

Technical Specifications – ABB CI810B 3BSE020520R1
| Parameter | Specification |
|---|---|
| Product Type | Communication Interface Module (FCI) |
| System Compatibility | ABB System 800xA / S800 I/O Station |
| Communication Protocol | Advant Fieldbus 100 (AF 100) |
| Transmission Medium | Twisted Pair (TWP) |
| Redundancy Support | Yes – Full Redundant Media Support |
| Station Type | S800 I/O Station Fieldbus Communication Interface |
| Bus Length Support | Up to 15000 meters with long-distance AF 100 support |
| Modem Integration | Integrated Twisted Pair Modem |
| Power Supply Contact | New version with updated power contact design |
| Typical Use | Interface between S800 I/O and AF 100 controllers |
| Dimensions (H x W x D) | 87 mm x 250 mm x 158 mm |
| Weight | 0.5 kg |
| Mounting | DIN Rail / Rack Mountable in S800 I/O housing |
| Environmental Ratings | Same as S800 I/O standard (see module housing) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB CI810B module?
A1: The CI810B functions as a Fieldbus Communication Interface (FCI) for the S800 I/O station, enabling communication over Advant Fieldbus 100 with full media redundancy support.
Q2: Is CI810B compatible with redundant AF 100 networks?
A2: Yes, CI810B supports full redundant media configurations, ensuring high availability in critical applications.
Q3: Can CI810B be used in long-distance bus configurations?
A3: Yes, it supports AF 100 bus lengths up to 15000 meters when installed as part of a compliant segment structure.
Q4: Does CI810B require external modems for twisted pair communication?
A4: No, it has an integrated twisted pair modem, eliminating the need for additional external modems for TWP communication.
Q5: What distinguishes CI810B from previous CI810 versions?
A5: CI810B includes updated power supply contacts and is designed for enhanced compatibility with long-distance AF 100 networks, replacing earlier versions like CI810A, CI810V1, and CI810V2.
Q6: Can the CI810B operate independently or does it require a paired configuration?
A6: It can operate both as a standalone module and in a redundant pair using two CI810B modules for increased reliability.
Q7: What housing or rack is required for installing CI810B?
A7: CI810B is installed within the S800 I/O station housing and fits into standard S800 racks with DIN rail or rack mount.
Q8: Is CI810B hot-swappable during maintenance?
A8: Yes, CI810B supports replacement without halting communication on the AF 100 bus, allowing for minimal disruption during maintenance.
