Technical Specifications
| Parameter | Description |
|---|---|

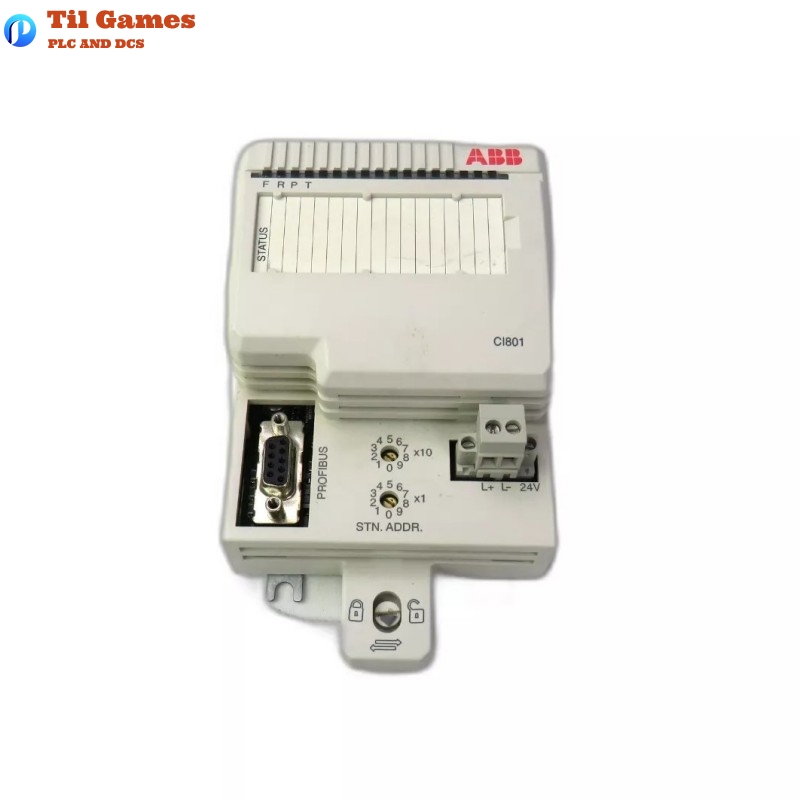

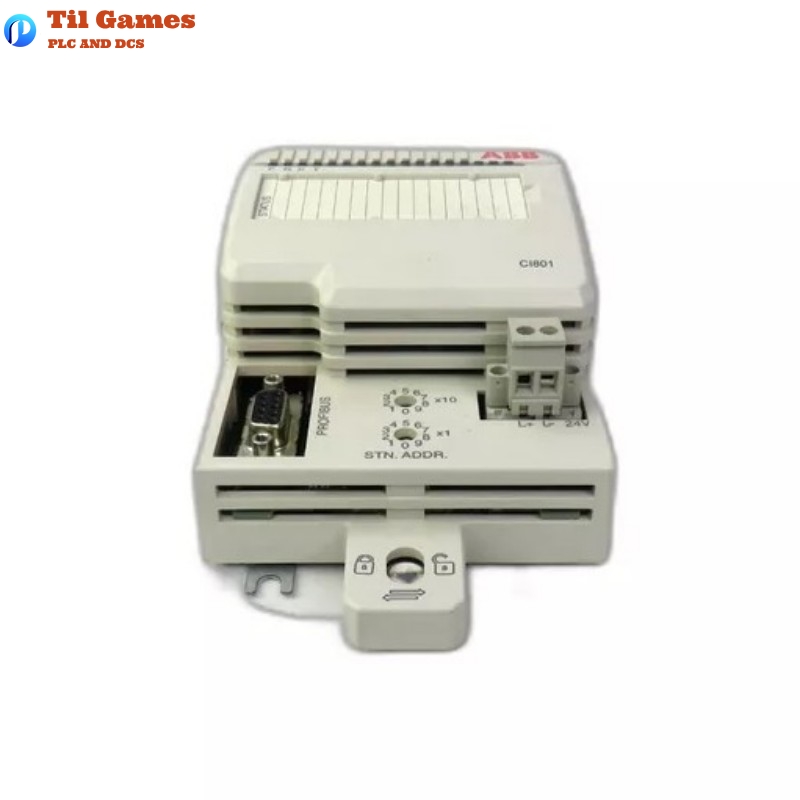

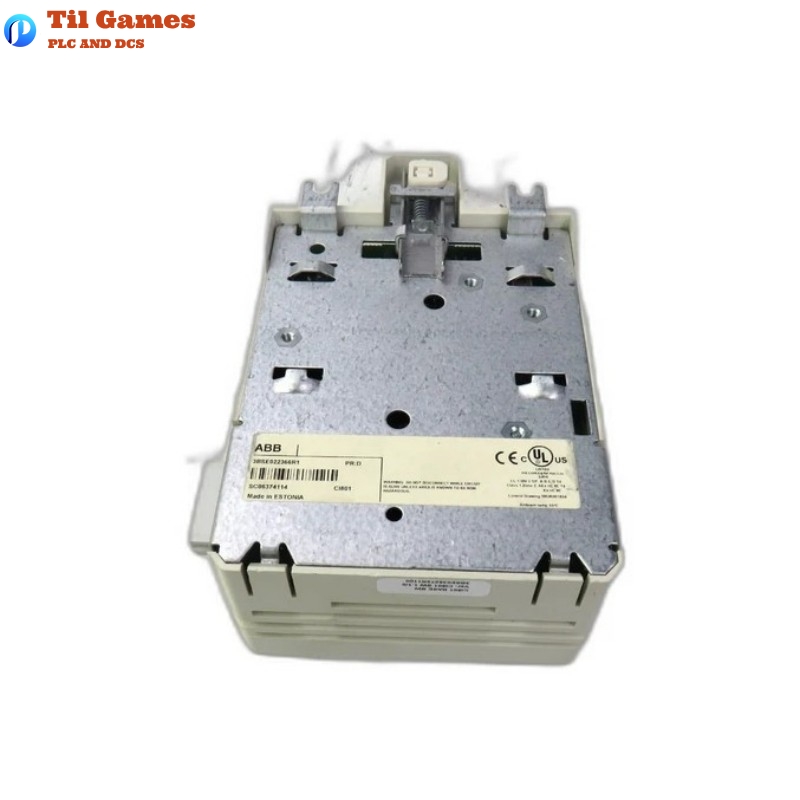

| Model Number | CI801 |
| Part Number | 3BSE022366R1 |
| System | System 800xA |
| Interface Type | PROFIBUS-DPV1 |
| Mounting | DIN Rail |
| ModuleBus | S800 I/O ModuleBus (acts as bus master) |
| PROFIBUS Role | Slave Station |
| PROFIBUS Address Range | 01 to 99 (set via rotary switches) |
| Max PROFIBUS Stations/Segment | 32 |
| Max Distance (Bus) | 1200 meters |
| Supported Baud Rates | 9.6 kbit/s to 12 Mbit/s |
| Power Supply Voltage | 24 V DC (range: 19.2 to 30 V DC) |
| Max Current Consumption | 2.3 A |
| Power Distribution | 24 V DC and isolated 5 V DC to I/O modules (max 12 modules per cluster) |
| LED Indicators | POWER OK and module status LEDs |
| Connection Interface | 9-pin D-sub for PROFIBUS, terminals for power |
| Address Selection | Two rotary switches |
| Supported I/O Modules | Analog (AI/AO), Digital (DI/DO), and Drives via PROFIBUS |
| Cycle Time (Min) | 4 ms (firmware dependent) |
| Dimensions | 85.8 mm × 136 mm × 58.5 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB CI801 module?
A1: The CI801 is a Fieldbus Communication Interface (FCI) module for S800 I/O systems. It acts as a PROFIBUS-DPV1 slave and manages communication with up to 12 connected I/O modules via ModuleBus.
Q2: How do you assign a PROFIBUS address to the CI801 module?
A2: The PROFIBUS address is configured using two rotary switches located on the front of the CI801. The valid address range is from 01 to 99.
Q3: What is the maximum number of I/O modules supported by CI801?
A3: The CI801 can manage up to 24 I/O modules per station, but only 12 modules can be physically installed per cluster. Due to PROFIBUS-DPV1 limitations, the actual usable number depends on the types of I/O modules and parameter sizes.
Q4: Can CI801 modules be installed on any DIN rail orientation?
A4: Yes, the CI801 module is DIN rail mountable and supports flexible installation to suit different cabinet layouts.
Q5: Is the CI801 capable of handling Hot Configuration in Run (HCIR)?
A5: Yes, CI801 supports HCIR, allowing configuration changes—such as inserting or removing modules—without interrupting the running system.
Q6: What happens if the CI801 module is the last device on the PROFIBUS segment?
A6: If the CI801 is the last device and provides active termination, disconnecting it from power or PROFIBUS will interrupt communication on the entire bus.
Q7: What kind of power does the CI801 distribute to the I/O modules?
A7: The CI801 provides 24 V DC (from the source) and generates isolated 5 V DC for powering connected I/O modules through the ModuleBus.
Q8: What should be considered for scan cycle time planning with CI801?
A8: The I/O scan cycle time is calculated based on the type and number of I/O modules. Digital modules are scanned every cycle, while analog modules are scanned every 4th or 10th cycle depending on type. The base FCI scan time also factors into the calculation.
