Technical Specifications
| Parameter | Specification |
|---|---|

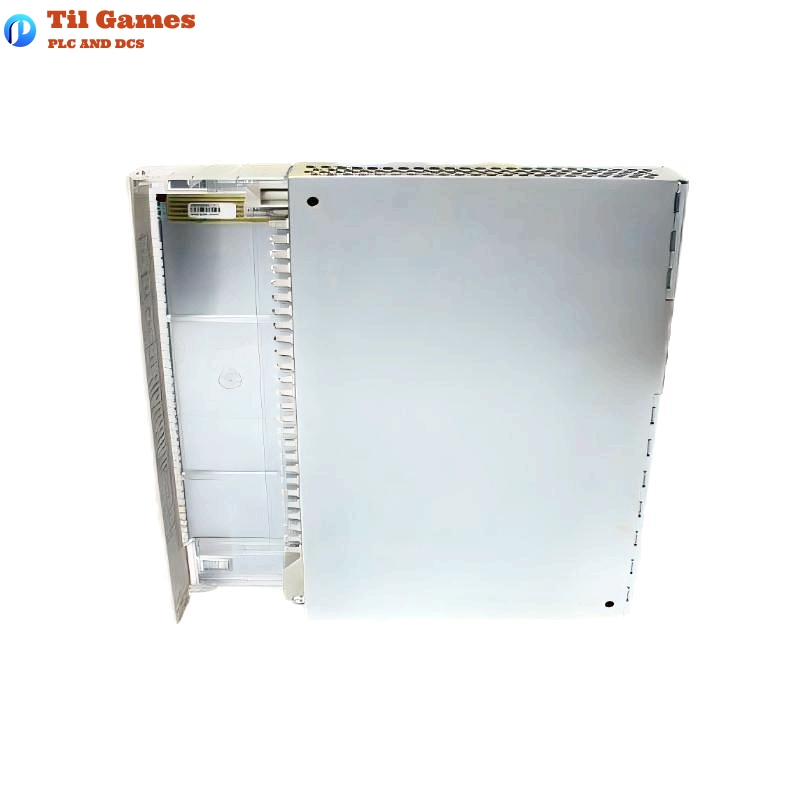

| Product Name | CI670 Communication Interface Module |
| Manufacturer | ABB |
| Product Code | 3BHT300017R1 |
| Module Type | Communication Interface Module |
| Communication Protocol | PROFIBUS DP |
| Interface Type | RS-485 |
| Transmission Speed | Up to 12 Mbps |
| Baud Rate Support | 9.6 kbps to 12 Mbps |
| Connection Type | 9-pin D-sub (female) |
| Bus Termination | Integrated switchable termination |
| Diagnostic Functions | Bus diagnostics, status LED indicators |
| Isolation | Galvanic isolation between field and logic |
| Power Supply Voltage | 24 V DC (typical) |
| Power Consumption | Approx. 4.2 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN Rail |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 252 x 273 x 40 mm |
| Weight | 1.215 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the ABB CI670 3BHT300017R1 module?
A1: The CI670 serves as a communication interface module designed to enable connectivity between ABB control systems and PROFIBUS DP field devices.
Q2: Which communication protocol does the CI670 support?
A2: It supports the PROFIBUS DP communication protocol, which is widely used in industrial automation for fast and reliable data exchange.
Q3: What type of connector is used for PROFIBUS communication?
A3: The CI670 uses a 9-pin D-sub (female) connector for PROFIBUS DP communication.
Q4: Is the CI670 module isolated from the field bus?
A4: Yes, the module provides galvanic isolation between the field communication side and internal logic, ensuring signal integrity and device protection.
Q5: What is the rated operating voltage for this module?
A5: The typical operating voltage for the CI670 is 24 V DC.
Q6: How is the CI670 mounted in a control cabinet?
A6: It is designed for DIN rail mounting, making it easy to integrate into standard control panels.
Q7: Does the CI670 include diagnostic features?
A7: Yes, it includes status LEDs and diagnostic functions for monitoring communication status and troubleshooting faults.
Q8: What is the ambient operating temperature range for the CI670?
A8: The CI670 can operate within a temperature range of 0°C to +60°C.
