Technical Specifications – ABB CI630 3BSE011000R1
| Parameter | Specification |
|---|---|

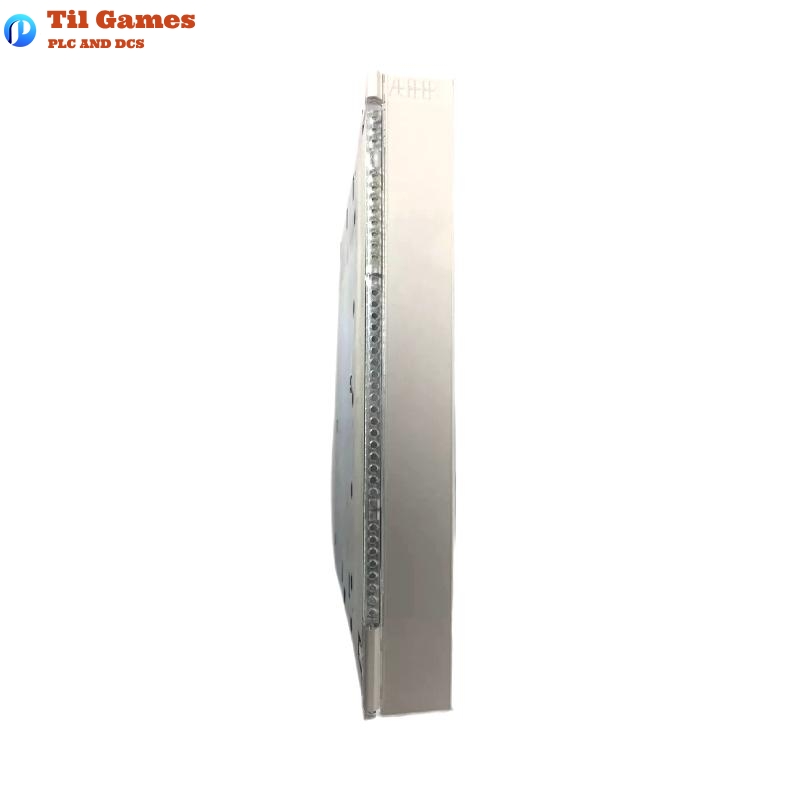

| Product Name | CI630 Communication Interface Module |
| Model Number | 3BSE011000R1 |
| Communication Bus | Advant Fieldbus 100 (AF 100) |
| Media Type | Coaxial (RG59/RG11), with integrated modem |
| Communication Interface Type | Redundant communication support |
| Applicable Controller | Advant Controller 160 |
| Installation Position | Basic Station slots 1 and 2 (redundant), or slot 2 (single) |
| Functionality | Data transfer, synchronization, CDP handling, bus master capability |
| Bus Master Capability | Yes (Primary and Backup configurations supported) |
| Address Range | Primary: Station Address; Backup: Station Address + 80 |
| Redundancy Support | Yes – for both media and interface redundancy |
| Max Number of Stations | 80 stations on AF 100 bus |
| Maximum Bus Length | Up to 13,300 meters (with optical/coaxial/twisted pair media) |
| Modem Integration | Built-in coaxial modem |
| Synchronization Capability | Supports time synchronization (if configured as master) |
| Dimensions (W x H x D) | 252 x 273 x 40 mm |
| Weight | 1.42 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of communication media is supported by the CI630 module?
A1: The CI630 supports coaxial media and includes an integrated modem for direct connection to the AF 100 coaxial bus.
Q2: Can the CI630 module be used in a redundant configuration?
A2: Yes, the CI630 supports both media and communication interface redundancy. When used redundantly, it must be installed in positions 1 and 2 of the Basic Station.
Q3: What is the purpose of using the backup communication interface in CI630 redundancy?
A3: The backup CI630 supervises the primary CI630, receives input CDPs, and ensures communication continuity by taking over if the primary fails.
Q4: Does CI630 support bus master functionality?
A4: Yes, CI630 must be configured as bus master in redundant setups to manage bus traffic and perform timing and data control functions.
Q5: What is the maximum allowable difference in cable length between redundant paths?
A5: For the CI630 with coaxial media, the maximum cable length difference between redundant lines must not exceed 1200 meters.
Q6: How is the bus address determined for primary and backup CI630 modules?
A6: The primary CI630 uses the configured station address. The backup CI630 uses the same station address plus 80.
Q7: Is the CI630 suitable for high-availability applications?
A7: Yes, the CI630 is designed for high-availability systems, supporting redundant buses and interfaces to ensure uninterrupted operation.
Q8: Can CI630 be hot-swapped during operation?
A8: Yes, due to the use of BNC T-adapters and drop cables, a faulty CI630 module can be replaced without interrupting the communication on the AF 100 network.
