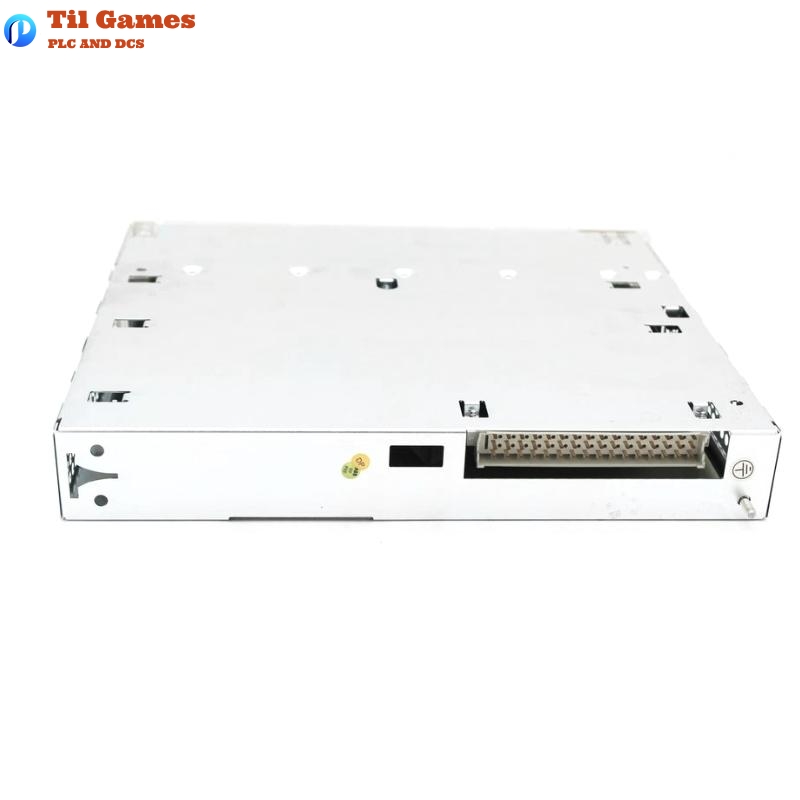

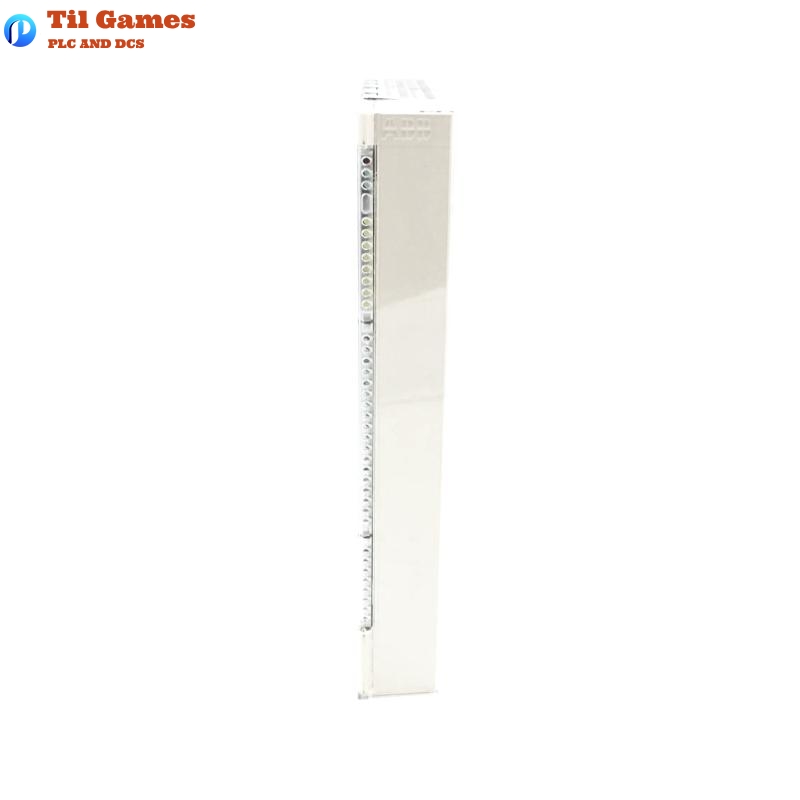

Technical Specifications of ABB CI626 3BHT300053R1
| Parameter | Specification |
|---|---|
| Product Type | Communication Interface Module |
| Model Number | CI626 |
| Part Number | 3BHT300053R1 |
| Supported Bus System | Advant Fieldbus 100 (AF 100) |
| Integrated Modem | Yes (Coaxial media support) |
| Bus Type | Coaxial |
| Redundant Media Support | Limited (Max 4 meters cable length difference) |
| Maximum Bus Length Support | Up to 2000 m |
| Transmission Rate | 1.5 Mbit/s |
| Operating Temperature | 0 to +60°C |
| Storage Temperature | -40 to +70°C |
| Mounting | Installed in AC 110/160 base system |
| LED Indicators | Yes (for status indication) |
| Cooling Requirement | Natural convection |
| Dimensions (W x H x D) | 252 x 273 x 40 mm |
| Weight | 1.42 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the CI626 module?
A1: The CI626 functions as a communication interface module for connecting Advant Controllers (specifically AC110/160) to the Advant Fieldbus 100 network using coaxial media.
Q2: Does the CI626 support redundant communication?
A2: The CI626 supports limited media redundancy on coaxial networks, with a maximum of 4 meters allowed in cable length difference between any two stations.
Q3: Can the CI626 be used with twisted pair or optical fiber media?
A3: No, the CI626 is designed exclusively for coaxial media and includes an integrated modem for this purpose.
Q4: Which controllers are compatible with the CI626?
A4: The CI626 is compatible with the Advant Controller 110 and Advant Controller 160 systems.
Q5: How is the CI626 mounted within the system?
A5: The CI626 is mounted directly into a dedicated slot in the AC110 or AC160 base unit.
Q6: Is external termination required when using CI626 on the bus?
A6: Yes, 75-ohm BNC terminations must be applied at each end of the coaxial bus segment, with one end grounded for proper operation.
Q7: How does the CI626 handle bus failures or faults?
A7: In the case of a failure, the CI626 does not provide automatic failover to a backup interface. System-level redundancy needs to be configured externally if needed.
Q8: What are the visual indicators on the CI626 used for?
A8: The LED indicators on the CI626 provide status feedback for communication activity, fault conditions, and operational health of the module.
