Introduction

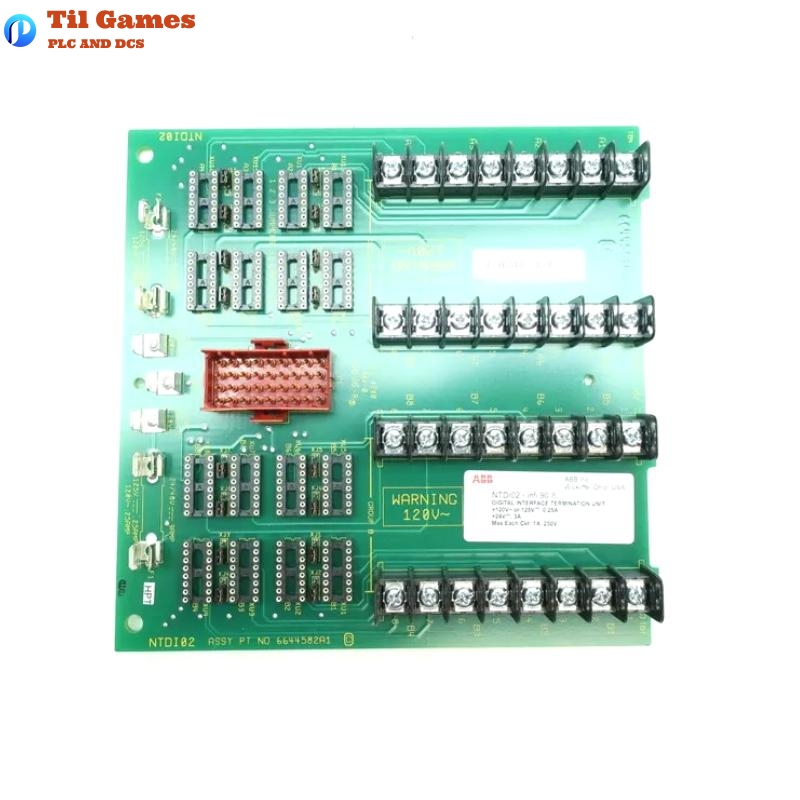

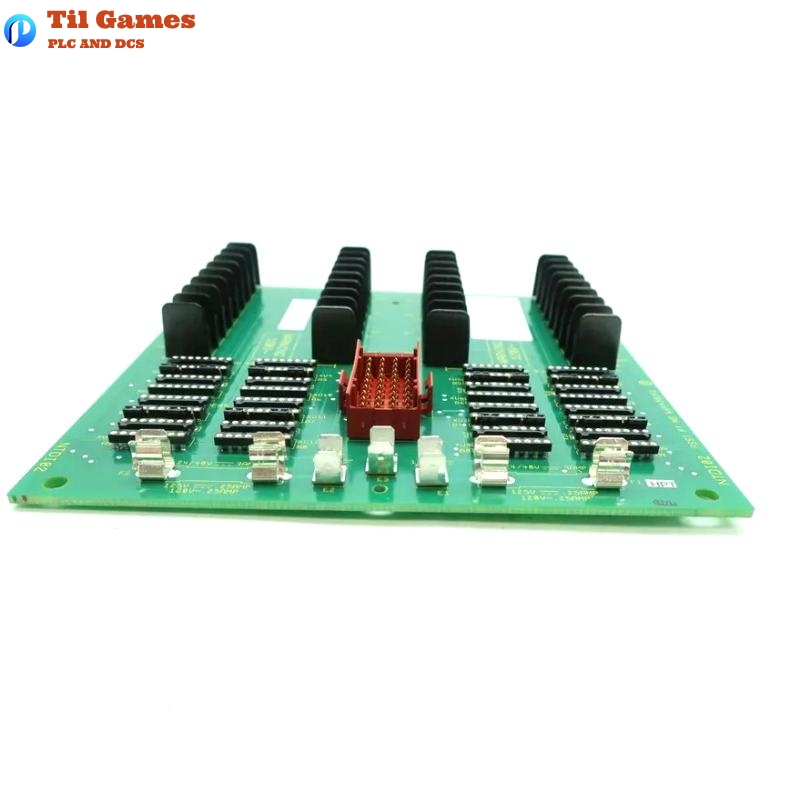

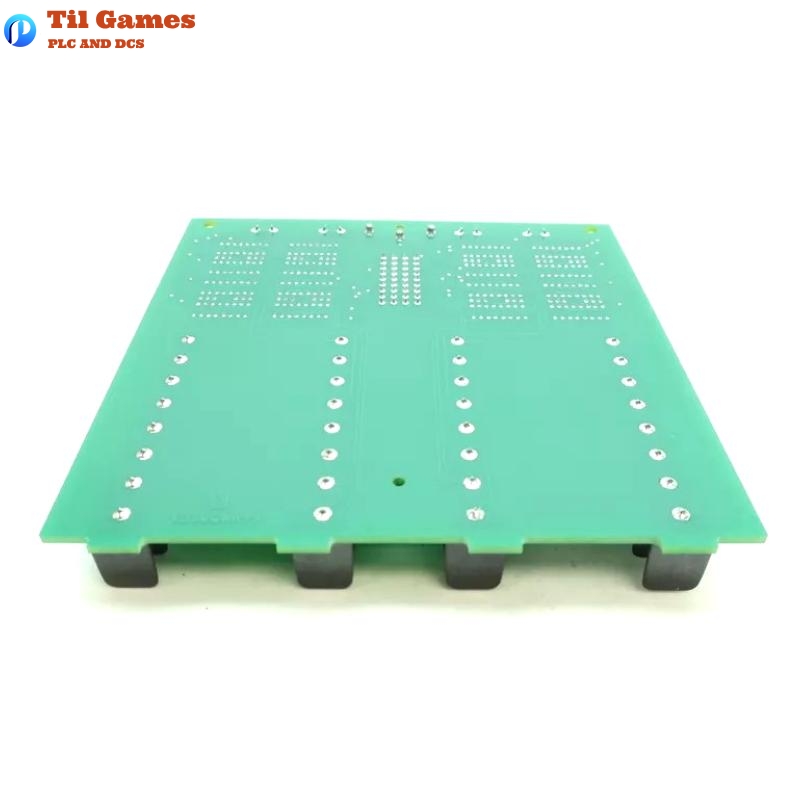

The ABB Bailey NTDI02 is a digital I/O termination unit, part of the Symphony Enterprise Management and Control System. It provides a crucial signal path between field I/O signals and various I/O modules, including the Analog Output Module (IMASO11), Digital Input Modules (IMDSI13, IMDSI14, IMDSI22), Pulse Input Module (IMDSM04), Digital Output Modules (IMDSO14, IMDSO15), and Frequency Counter Module (IMFCS01).
This termination unit is designed for use within the ABB Harmony series and is fully compatible with the INFI 90 OPEN and Symphony systems, ensuring easy integration within existing infrastructures.
Specifications
The NTDI02 is a compact, reliable solution for signal conditioning and module interfacing. Below are its key specifications:
| Parameter | Value |
|---|---|
| Dimensions | 330 x 180 x 50 mm |
| Weight | 0.3 kg |
| Wire Size (Maximum) | 12 AWG |
| Wire Size (Minimum) | 22 AWG |
| Maximum Voltage | 250 Vac |
| Maximum Current | 3 A |
| Measurement Category | I for circuits > 150 V, II for circuits < 150 V |
| Mounting | Mounts on field termination panel |
| Ambient Temperature | 0° to 70°C (32° to 158°F) |
| Relative Humidity | 5% to 95% at 55°C (non-condensing), 5% to 45% at 70°C |
| Altitude | Sea level to 3 km |
| Cooling Requirements | No cooling required within environmental limits |
| Certifications | CSA, FM (pending) |
Product Features
-
Compatibility: Fully compatible with ABB’s INFI 90 OPEN and Symphony systems.
-
Modular Design: Allows for integration with a variety of ABB I/O modules, ensuring scalability.
-
Signal Path Flexibility: Supports 16 input signals for various I/O modules.
-
Mounting and Installation: Designed to be mounted easily onto ABB’s standard enclosures and field termination panels.
Advantages
-
Seamless Integration: The NTDI02 is part of ABB’s Symphony system, ensuring smooth compatibility and integration into existing setups.
-
Durable and Reliable: Built for use in industrial environments, with high resistance to environmental factors like temperature and humidity.
-
Flexibility in Signal Handling: Supports a broad range of input/output modules, making it versatile for different applications.
-
Easy Installation and Maintenance: The unit comes with clear guidelines for installation, wiring, and maintenance.
Applications
The NTDI02 is used in various industrial applications where reliable and flexible signal termination is required, including:
-
Process Control Systems: For monitoring and controlling industrial processes.
-
Factory Automation: Integrated into automated systems for signal management.
-
Energy Management Systems: Used for interfacing with energy meters and control systems.
-
Environmental Monitoring: Supports data acquisition from various field instruments.
Latest Product Report Titles
-
“ABB Bailey NTDI02: Enhancing Process Control Integration in Symphony Systems”
-
“NTDI02 Termination Unit: Future-Proofing Your Automation Infrastructure”
-
“Maximizing Performance with ABB’s NTDI02 in Complex Industrial Networks”
Recommended Related Models (Harmony Series)
| Model | Description | Key Features | Applications |
|---|---|---|---|
| NTDI01 | Previous model, functional replacement | Same functionality but with fewer configuration options | Older systems, existing installations |
| IMASO11 | Analog Output Module | Outputs for process control systems | Process control and monitoring |
| IMDSI13 | Digital Input Module | Digital input handling | Industrial data acquisition |
| IMDSO14 | Digital Output Module | Digital output for controlling processes | Control systems, automation applications |
| IMDSM04 | Pulse Input Module | Input for pulse counting and frequency monitoring | Energy meters, flow meters |
| IMFCS01 | Frequency Counter Module | Measures frequency signals | Industrial systems requiring frequency analysis |
Popular Bailey Models
| Model | Description | Specifications | Applications |
|---|---|---|---|
| NTDI01 | Older model termination unit | 250Vac, 3A, 330x180x50mm, 0.3kg | Legacy systems, simple control applications |
| IMDSI14 | Digital input module | 16 channels, 250Vac, 3A | Industrial data acquisition, monitoring inputs |
| IMDSO15 | Digital output module | 16 outputs, 250Vac, 3A | Output control for industrial applications |
| IMASO12 | Analog output module | 4-20mA output, 250Vac | Process control, automated systems |
| IMDSO13 | Digital output module | 8 outputs, 250Vac, 3A | Control signals in factory automation systems |
| IMDSI22 | High-density digital input module | 32 inputs, high density | Large scale industrial data collection systems |
FAQ
Frequently Asked Questions (FAQs)
-
Q: What is the maximum voltage the NTDI02 can handle?
A: The NTDI02 can handle a maximum voltage of 250 Vac. -
Q: How many input signals can the NTDI02 support?
A: The NTDI02 supports up to 16 input signals for various I/O modules. -
Q: What are the recommended power wiring configurations for NTDI02?
A: Power can be connected through E1 and E2 Faston connectors, with 12-14 AWG wire recommended. -
Q: How should the NTDI02 be mounted?
A: The NTDI02 mounts on a standard ABB field termination panel, securing with two screws. -
Q: Can the NTDI02 be used with older ABB systems?
A: Yes, the NTDI02 is compatible with INFI 90® OPEN and Symphony™ systems, providing backward compatibility. -
Q: What maintenance is required for the NTDI02?
A: Regular preventive maintenance, including cleaning and checking connections, is recommended every 12 months. -
Q: How do I replace a fuse in the NTDI02?
A: If a fuse blows, replace it with an equivalent rated fuse. Ensure power is turned off before replacing fuses. -
Q: Is the NTDI02 certified for use in hazardous environments?
A: It is certified for non-hazardous locations, with pending approval for use in hazardous locations (Class I; Division 2).
