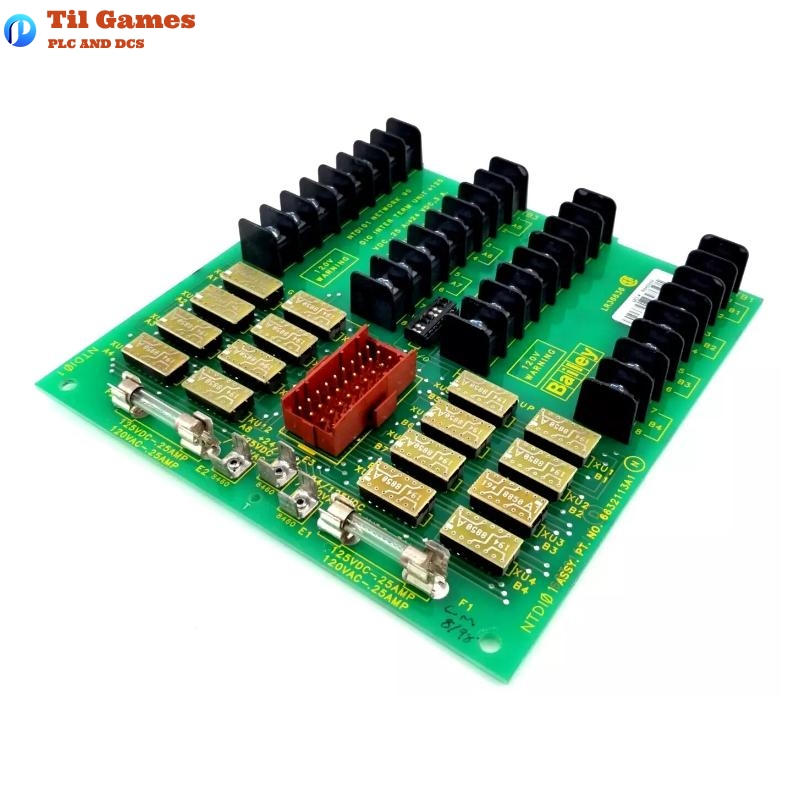

Product Overview: ABB Bailey NTDI01 6632113A1
The ABB Bailey NTDI01 is a Digital I/O Termination Unit specifically engineered for use within the INFI 90 Process Management System. It serves as the physical interface for field signal wiring, accommodating both analog and digital I/O types through configurable dipshunt sockets. The NTDI01 is a passive termination unit mounted directly onto a field termination panel (NFTP01), offering modular, adaptable, and reliable connectivity for various I/O modules in the INFI 90 control system architecture.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | NTDI01 |
| Part Number | 6632113A1 |
| Signal Type | Digital / Analog (I/O termination) |
| Mounting | Standard INFI 90 Field Termination Panel (NFTP01) |
| Supported Modules | IMASO01, IMDSI02, IMDSM04, IMDSM05, IMDSO01–04, IMFCS01, IMHSS01, IMLMM02 |
| Terminal Blocks | 4 (TB1 to TB4), for physical wiring interface |
| Dipshunt Sockets | 17 (XU1 to XU17), individually configurable |
| Cable Connection | P1 Socket for NKTU01 Termination Unit Cable |
| I/O Power Connections | E1, E2 (for +24VDC/125VDC/120VAC); E3 (Ground) |
| Fuses | Two on-board (F1, F2); 3.0A for 24VDC or 0.25A for 125VDC/120VAC |
| Operating Temperature | 0°C to 70°C |
| Humidity (Non-condensing) | 0–95% up to 55°C; 0–45% at 70°C |
| Altitude | Up to 3000 m (9842 ft) |
| Air Quality | Non-corrosive environment |
| Certification | CSA Certified for 150VDC / 120VAC, Ordinary (Non-Hazardous) Location |
| Dimensions (mm) | 78.74 x 233.68 x 213.36 mm |
| Weight | 0.3 kg |
Product Features
-
Versatile Configuration: Accepts analog and digital I/O via 16 configurable points.
-
Passive Reliability: No active components; reduces failure risk and enhances robustness.
-
Fused Protection: Embedded fuse protection ensures safety for power and field devices.
-
Module Compatibility: Integrates seamlessly with INFI 90 modules like IMASO01, IMDSM05, etc.
-
Physical Accessibility: Offers four terminal blocks and dedicated power inputs for structured wiring.
-
Panel Mounting: Easily mounted with standard screw fittings in a field termination panel.
Application Areas
-
Distributed control systems within chemical processing plants
-
Power generation control systems using INFI 90 architecture
-
Oil & gas production and refining terminals
-
Pulp & paper processing facilities
-
Water treatment and utilities infrastructure
-
Process industry systems demanding high-reliability digital/analog termination interfaces
Key Advantages
-
Field Flexibility: Supports multiple signal types—digital inputs, digital outputs, analog inputs/outputs
-
System Adaptability: Configurable for system-powered or field-powered operations via dipshunts
-
Fail-safe Wiring: Proper polarity marking and terminal assignment minimize miswiring risk
-
Reduced Maintenance: Routine maintenance is minimal due to passive construction
-
CSA Certified: Assures compliance with industrial safety standards
Latest Product Report / Manual Title
-
Document Title: Digital I/O Termination Unit (NTDI01) Instruction Manual
-
Document Number: I-E96-424A
-
Issued By: Elsag Bailey Process Automation (Now ABB)
-
Total Pages: 48
-
Sections Included: Introduction, Installation, Maintenance, Repair/Replacement, Support, Appendices
Related Models in the Same Series (INFI 90)
| Model | Description | Supported Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| IMASO01 | Analog Slave Output Module | Analog Output | 78.74 x 233.68 x 213.36 | 0.4 |
| IMDSI02 | Digital Slave Input Module | Digital Input | 78.74 x 233.68 x 213.36 | 0.35 |
| IMDSM05 | Digital I/O Slave Module | Digital I/O | 78.74 x 233.68 x 213.36 | 0.35 |
| IMDSO01 | Digital Slave Output Module (AC) | Digital Output | 78.74 x 233.68 x 213.36 | 0.4 |
| IMFCS01 | Frequency Counter Slave Module | Analog Frequency Input | 78.74 x 233.68 x 213.36 | 0.4 |
| IMHSS01 | Hydraulic Servo Slave Module | Mixed I/O | 78.74 x 233.68 x 213.36 | 0.45 |
Popular Bailey Modules
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| NTAI03 | Analog Input Termination Unit | Analog Input Termination | 78.74 x 233.68 x 213.36 | 0.3 |
| NTDO01 | Digital Output Termination Unit | Digital Output Termination | 78.74 x 233.68 x 213.36 | 0.3 |
| NTCL01 | Communication Link Termination Unit | Serial Communication I/O | 78.74 x 233.68 x 213.36 | 0.3 |
| IMCPM02 | Communication Processor Module | Network Communication | 78.74 x 233.68 x 213.36 | 0.4 |
| INNIS21 | Network Interface Slave Module | Ethernet Networking | 78.74 x 233.68 x 213.36 | 0.4 |
| IEPAS02 | Power Supply Module | System Power Distribution | 78.74 x 233.68 x 213.36 | 0.5 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the NTDI01 module?
A1: The NTDI01 serves as a termination interface between field wiring and INFI 90 process I/O modules, allowing for digital or analog signal configuration.
Q2: How many I/O points can NTDI01 handle?
A2: The NTDI01 supports up to 16 individual I/O signal connections, each configurable via dipshunt sockets.
Q3: Does NTDI01 contain active components?
A3: No, it is a passive termination unit without active electronics, reducing failure risks.
Q4: Which cables are used to connect NTDI01 to the system?
A4: The NTDI01 connects to INFI 90 master/slave modules using the NKTU01 termination cable via socket P1.
Q5: What types of signals are supported?
A5: It supports both digital and analog I/O signals, including AC/DC voltage and current configurations depending on the connected module.
Q6: What fuse ratings are used for protection?
A6: For 24VDC, a 3A fuse (P/N 194776A13001) is used; for 125VDC or 120VAC, a 0.25A fuse (P/N 194776A12500) is applied.
Q7: Is the NTDI01 compatible with analog modules like IMASO01?
A7: Yes, it is compatible with multiple analog modules including IMASO01, and supports both current and voltage analog signals.
Q8: Can the NTDI01 operate in harsh environments?
A8: The NTDI01 is designed for industrial environments with non-corrosive air, and can operate at altitudes up to 3000 meters with humidity up to 95% (non-condensing).
