Product Description:

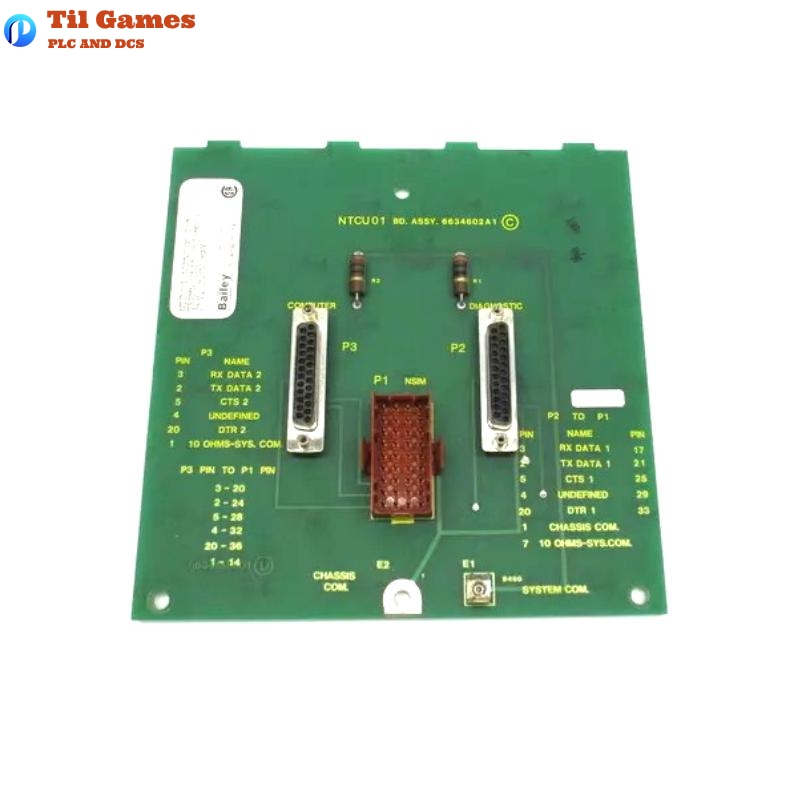

The ABB Bailey NTCU01 is a computer interface termination unit used within the INFI 90 system. It serves as the connection point between the computer and the plant’s communication system. This unit works with the INFI 90 Plant Loop to enable seamless communication between the system’s components and the host computer. It helps in managing communication between various nodes in a plant loop, supporting efficient data transfer, and ensuring that all necessary parameters are communicated correctly.
Product Features:
-
Provides seamless communication between the INFI 90 plant loop and the host computer.
-
Handles serial communication using RS-232-C ports for both diagnostic and standard communications.
-
Includes essential communication modules: Serial Interface Module (SIM), Loop Interface Module (LIM), and Point Table Module (PTM).
-
Facilitates continuous communication with the plant loop, allowing for real-time data monitoring and control.
-
Compatible with a wide range of plant loop communication protocols.
Product Advantages:
-
Seamless Integration: The NTCU01 enables smooth and continuous communication between plant nodes and the central computer system, making it ideal for complex industrial applications.
-
Reliable Communication: It supports various communication rates, ensuring that data transfer is both fast and reliable.
-
Scalable System Compatibility: With the ability to manage 511 points per interface, it allows for large-scale system integration.
-
Diagnostic Port for Troubleshooting: Provides a diagnostic port for troubleshooting, making maintenance easier and faster.
-
Powerful Communication Modules: The combination of SIM, LIM, and PTM ensures that data routing and processing are efficient, enhancing overall system performance.
Product Applications:
-
Industrial Control Systems: Used in process automation systems to ensure data flow between the control unit and plant equipment.
-
Data Monitoring Systems: Facilitates monitoring of various process parameters in real-time.
-
System Integration: Helps integrate disparate systems into a unified communication loop for centralized control.
Product Specifications:
| Parameter | Specification |
|---|---|
| Dimensions | 127 x 51 x 127 mm |
| Weight | 0.2 kg |
| Ports | Two EIA Standard RS-232-C ports |
| Communication Rate | 300, 1,200, 2,400, 9,600, 19,200 baud (user-selectable) |
| Point Capacity | 511 points per INPCI01 |
| Power Requirements | +5 VDC at 2.0 A, ±15 VDC at 80 mA |
| Environmental Conditions | 0 to 70°C, 0-95% Humidity (non-condensing) |
Related Models from the Same Series
| Model Name | Description |
|---|---|
| NTCL01 | Communication Termination Unit for the INFI 90 system |
| NTMU01 | Termination Mounting Unit for module integration |
| INLIM03 | Loop Interface Module for communication with the Plant Loop |
| INSIM01 | Serial Interface Module for communication with the host computer |
| INPTM01 | Point Table Module for managing data routing and storage |
| NICL01 | Communication Termination Module for INFI 90 system |
Popular Bailey Models
| Model Name | Description |
|---|---|
| INLIM03 | Loop Interface Module for seamless communication between modules on the Plant Loop |
| INSIM01 | Serial Interface Module for connecting a computer to the INFI 90 system |
| NTCF01 | Termination Unit designed for advanced communication configurations |
| NTCF02 | Robust termination unit providing higher compatibility with high-speed communications |
| NTCL01 | Communication Termination Unit for the INFI 90 system |
| NTCF03 | Advanced termination module offering enhanced communication capabilities |
FAQ
FAQ
Q1: What is the NTCU01 used for in the INFI 90 system?
-
A1: The NTCU01 is used as a computer interface termination unit that connects the computer to the INFI 90 plant loop, enabling communication between the system and the host computer.
Q2: What types of ports does the NTCU01 provide?
-
A2: The NTCU01 offers two EIA standard RS-232-C ports, one for standard communication and one for diagnostics.
Q3: How many points can the NTCU01 manage?
-
A3: The NTCU01 can handle up to 511 points per INPCI01 interface.
Q4: What communication speeds are supported by the NTCU01?
-
A4: The NTCU01 supports communication speeds of 300, 1,200, 2,400, 9,600, and 19,200 baud.
Q5: What environmental conditions are suitable for the NTCU01?
-
A5: The NTCU01 can operate in environments with temperatures ranging from 0 to 70°C and humidity from 0 to 95% (non-condensing).
Q6: What type of power supply does the NTCU01 require?
-
A6: The NTCU01 requires a +5 VDC power supply at 2.0 A and ±15 VDC at 80 mA.
Q7: Can the NTCU01 be used with other termination units in the INFI 90 system?
-
A7: Yes, the NTCU01 is compatible with several termination units, including the NTCL01 and NICL01, to facilitate various configurations.
Q8: How does the diagnostic port on the NTCU01 assist in troubleshooting?
-
A8: The diagnostic port enables technicians to test and monitor the status of the system, identify errors, and perform necessary maintenance or repairs.
