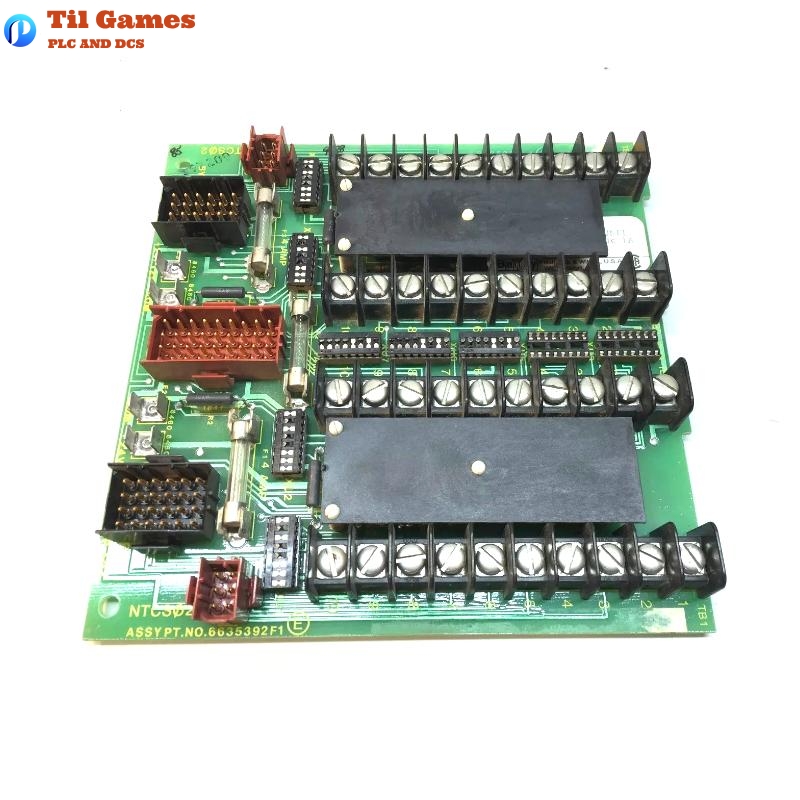

ABB Bailey NTCS02 Infi 90 Control I/O Termination Unit – Comprehensive Description
The ABB Bailey NTCS02 is a robust Control I/O Termination Unit engineered specifically for industrial automation and process control systems. Designed to interface seamlessly with the IMQRC01 Quick Response Controller, the NTCS02 provides flexible and reliable connections for analog and digital signals within Bailey’s advanced INFI 90 distributed control system. By employing user-configurable dipshunts and jumpers, the NTCS02 adapts effectively to varying signal requirements in demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | ABB Bailey NTCS02 |
| Type | Control I/O Termination Unit |
| Analog Inputs | 4 channels (1–5 VDC) |
| Analog Outputs | 2 channels (1–5 VDC or 4–20 mA selectable) |
| Digital Inputs | 3 channels, optically isolated (24/125 VDC selectable via jumpers) |
| Digital Outputs | 4 channels, isolated open collector type |
| Power Supply | Supplied via connected IMQRC01 Controller |
| Surge Protection | ANSI/IEEE C37.90A-1974 compliant |
| Operating Temp. | 0 to 70°C |
| Dimensions (mm) | 233.68 (H) × 78.74 (W) × 213.36 (D) |
| Weight | 0.499 kg |
Key Features
-
Flexible dipshunt-configurable analog inputs/outputs.
-
Selectable digital input voltage: 24 VDC or 125 VDC via jumpers.
-
Robust surge withstand capabilities (ANSI/IEEE standards).
-
Single-slot mounting, compact design.
-
Easy maintenance and simple installation procedures.
-
Optically-isolated inputs ensure signal integrity.
Key Advantages
-
Flexible Configuration: Easily adaptable to specific process control requirements.
-
High Reliability: Ensures dependable performance in rigorous industrial conditions.
-
Safety Assurance: Outputs automatically default to safe states during fault conditions.
-
Efficient Space Utilization: Compact form factor saves valuable space within equipment cabinets.
-
Seamless Integration: Fully compatible with existing ABB Bailey INFI 90 control systems.
Typical Applications
-
Power generation and distribution automation.
-
Petrochemical and refinery process control.
-
Manufacturing automation systems.
-
Water and wastewater treatment facilities.
-
Industrial boiler and burner management systems.
Recent Industry Report Title
“ABB Bailey NTCS02 Ensures Reliable Integration and Operation in Critical Process Automation Applications”
Recommended Related Models (Same Series)
| Model | Description | Analog Inputs | Analog Outputs | Digital Inputs | Digital Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ABB Bailey NTCS04 | Alternative I/O Termination Unit | 4 | 2 | 3 | 4 | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey NICS01 | Controller/Station Termination Module | – | – | – | – | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey NKTU01 | Cable (NTCS02/04 ↔ IMQRC01) | – | – | – | – | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey NKTM01 | Cable (NICS01 ↔ IMQRC01) | – | – | – | – | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey IMQRC01 | Quick Response Controller Module | 4 | 2 | 3 | 4 | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey NKTU02 | Alternative Cable (NTCS02/04 ↔ IMQRC01) | – | – | – | – | 233.68 × 78.74 × 213.36 | 0.499 |
Recommended Popular ABB Bailey Models
| Model | Description | Digital Inputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ABB Bailey INICT03A | Network Interface Controller | – | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey IMMFP12 | Multifunction Processor | – | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey INNIS21 | Network Interface Slave Module | 32 | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey IMDSI12 | Digital Input Module | 16 | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey INFI90 | Distributed Control System Architecture | – | 233.68 × 78.74 × 213.36 | 0.499 |
| ABB Bailey INNPM22 | Power Management Processor | – | 233.68 × 78.74 × 213.36 | 0.499 |
FAQ
FAQ Section (Q&A)
Q1: What is the function of the NTCS02 unit?
A1: It interfaces analog and digital signals between field devices and the IMQRC01 controller.
Q2: Are analog outputs configurable?
A2: Yes, via dipshunts, outputs can be set to 1–5 VDC or 4–20 mA.
Q3: Can digital input voltage be selected?
A3: Yes, digital inputs are jumper-selectable between 24 VDC and 125 VDC.
Q4: How are outputs handled during faults?
A4: Digital outputs de-energize, and analog outputs revert to preset safe default values.
Q5: Does NTCS02 comply with surge protection standards?
A5: Yes, it complies with ANSI/IEEE C37.90A-1974.
Q6: Can NTCS02 replace NTCS04 directly?
A6: Typically yes, however, verify wiring specifics as minor differences may exist.
Q7: Is the NTCS02 suitable for hazardous locations?
A7: It is designed primarily for non-hazardous (ordinary) locations. Verify exact certifications for hazardous locations.
Q8: How often should NTCS02 be maintained?
A8: General inspection and connection tightening should be done semi-annually or during scheduled plant shutdowns.
