Product Overview

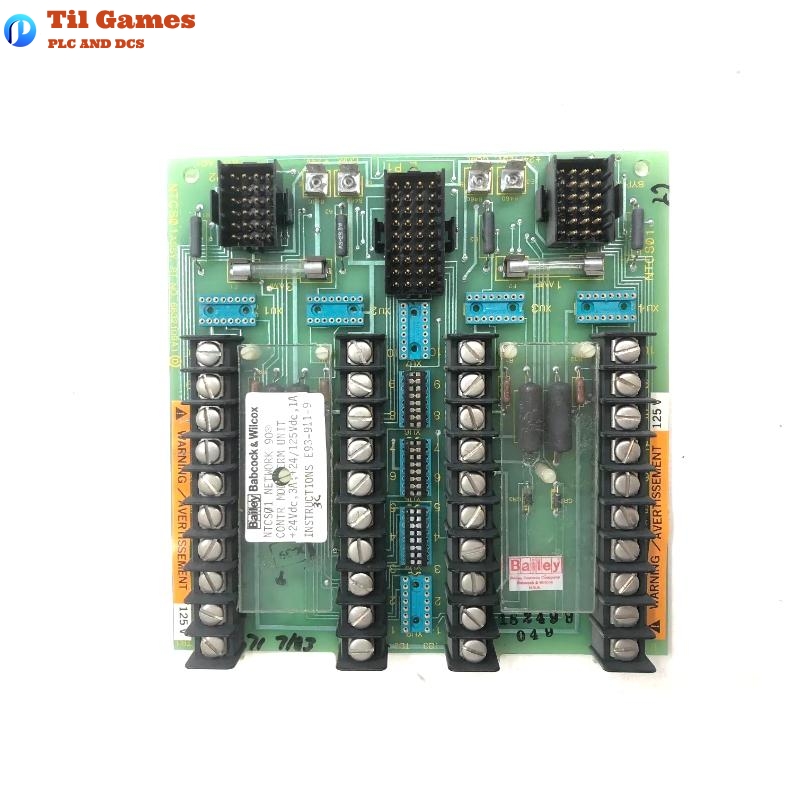

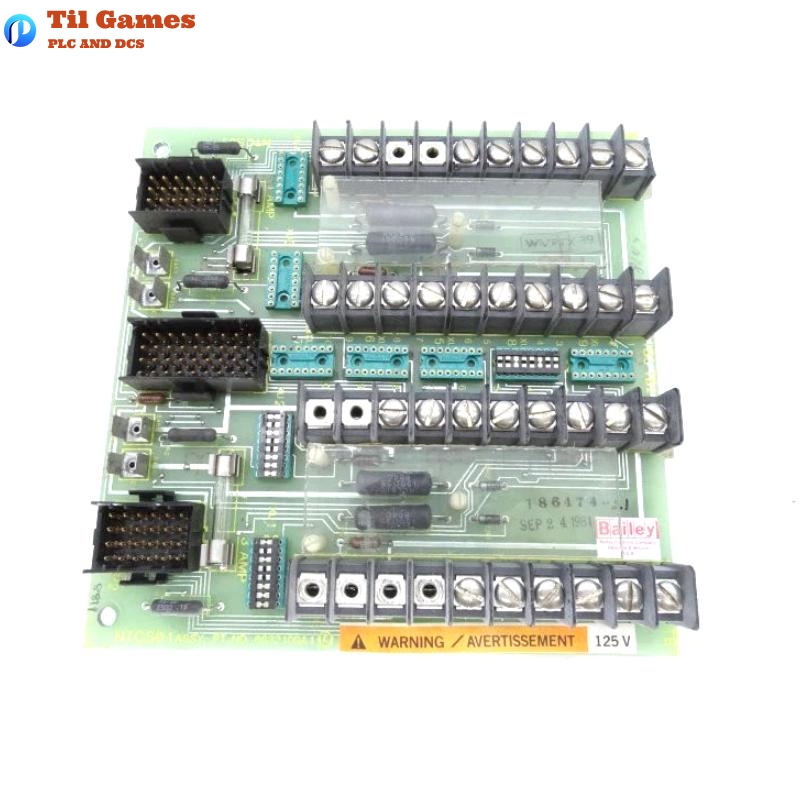

The ABB Bailey NTCS01 is a Control I/O Termination Unit specifically designed for use within the Infi 90 Distributed Control System (DCS). It serves as an essential hardware interface for I/O signal termination and signal routing to control processors. This unit is engineered to integrate with IMCIS02, IMQRS02, and NKTU01 modules, facilitating structured signal handling and enhancing system maintainability.
The NTCS01 enables secure and organized termination of analog and digital signals in industrial automation systems. Its robust construction and compatibility with high-reliability control components make it suitable for critical process control applications in industries such as power generation, oil and gas, petrochemicals, and more.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | NTCS01 |
| Manufacturer | ABB Bailey |
| Product Type | Control I/O Termination Unit |
| System Compatibility | Infi 90 Series |
| Compatible Modules | IMCIS02, IMQRS02, NKTU01 |
| Application Type | Signal termination and routing for control modules |
| Mounting | Rack-mounted |
| Terminal Type | Screw-type terminal block |
| Number of Terminals | Multiple – dependent on control configuration |
| Material | Industrial-grade electronic components |
| Dimensions (W x H x D) | 233.68 mm x 78.74 mm x 213.36 mm |
| Weight | 0.499 kg |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA (depending on system configuration) |
Key Features
-
Dedicated Termination Interface: Engineered to provide a standardized, organized termination solution for control signals within the Infi 90 system architecture.
-
High Reliability Design: Manufactured using high-grade materials for enhanced durability in harsh industrial environments.
-
Compatible Integration: Fully supports IMCIS02, IMQRS02, and NKTU01, offering flexible deployment in both analog and digital signal environments.
-
Modular Construction: Allows for streamlined maintenance and system expansion without disrupting active operations.
-
Noise Reduction Architecture: Incorporates physical layout design features that reduce electromagnetic interference and cross-talk.
-
Clear Signal Labeling: Terminal points are labeled for easy identification and faster troubleshooting.
Advantages
-
Efficient Signal Management: Simplifies wiring and signal routing in large-scale control applications.
-
Improved System Reliability: Reduces the risk of miswiring and short circuits by organizing signal terminations clearly.
-
Fast Installation and Maintenance: Modular form factor and standardized terminal blocks reduce downtime.
-
Proven Compatibility: Works seamlessly with ABB Bailey’s critical control modules, minimizing integration risks.
-
Long Service Life: Rugged design with industry-proven durability ensures extended field operation.
-
Optimized for Infi 90 Systems: Ensures native compatibility and optimal performance when used within ABB Bailey’s DCS platform.
Application Areas
-
Power Generation Plants
-
Oil and Gas Refineries
-
Chemical and Petrochemical Facilities
-
Water and Wastewater Treatment Plants
-
Pulp and Paper Processing
-
Metals and Mining Automation
-
Pharmaceutical Manufacturing
