Product Description

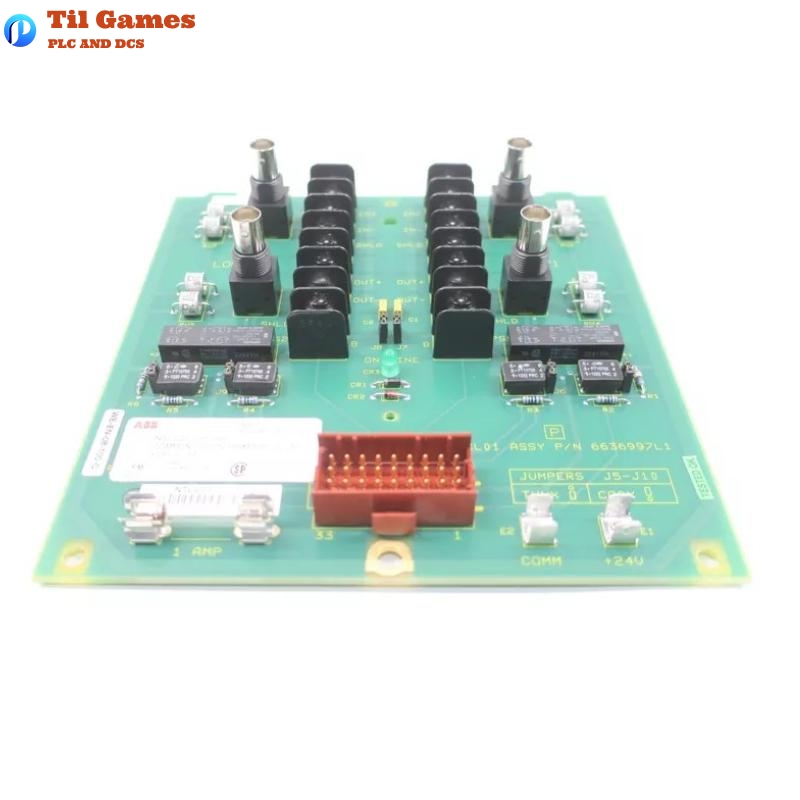

The ABB Bailey NTCL01 is a Communication Termination Unit developed for use in the INFI 90® control system architecture. It serves as a physical interface between communication loops—either INFI-NET or Plant Loop—and key network modules such as the INNIS01 Network Interface Slave Module or the INLIM03 Loop Interface Module. Designed for installation on a Field Termination Panel (NFTP01), the NTCL01 provides support for both coaxial and twinaxial cables, with jumper-selectable impedance settings to ensure signal integrity.
As a robust and essential interface component, the NTCL01 ensures reliable data transfer across the network, offering flexibility in cable choice and ease of configuration. It also includes internal overcurrent protection via a fused +24 VDC input supply.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | NTCL01 |
| Operating Voltage | 24 VDC |
| Current Draw | 15.8 mA typical / 19.7 mA max |
| Cable Compatibility | Coaxial and Twinaxial |
| Fuse Protection | 1.0 A / 250 V (Bailey P/N 194776A11001) |
| Mounting | Screw-mounted to Field Termination Panel |
| Operating Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 5%–90% @ ≤55°C / 5%–40% @ ≤70°C (non-cond.) |
| Cooling | None required in Bailey cabinets |
| Environmental Requirements | Non-corrosive atmosphere |
| Certification | CSA Certified for non-hazardous locations |
| Dimensions (W x H x D) | 96.52 x 236.22 x 220.98 mm |
| Weight | 0.476 kg |
Features
-
Compatible with both twinaxial and coaxial communication cables
-
Onboard jumper configuration for cable impedance matching
-
24 VDC fused input for internal protection
-
Designed for integration with INNIS01 and INLIM03 modules
-
Terminal strip and BNC connectors for flexible wiring
-
Straightforward field installation and maintenance
-
Operates without need for active cooling
-
Fully compliant for non-hazardous industrial environments
Advantages
-
Flexible Connectivity: Works with legacy coaxial systems and modern twinaxial networks
-
User-Friendly Configuration: Simple jumper adjustments for cable type selection
-
Reduced Downtime: Fuse and modular layout allow for quick field replacement
-
Robust Design: Certified for industrial use in process environments
-
Compact Form Factor: Saves cabinet space and simplifies cable routing
-
Reliable Signal Termination: Critical for stable communication performance in plant systems
Applications
-
Distributed Control Systems (DCS) in power generation, chemical processing, and manufacturing
-
INFI-NET and Plant Loop communication infrastructure
-
Network termination for redundant control systems
-
Signal distribution and loop isolation in critical process environments
-
Upgrade and maintenance of legacy Bailey INFI 90 systems
-
Use in non-hazardous industrial cabinets with high wiring density
Latest Report Title
“INFI-NET Communication Performance Optimization with NTCL01 in Hybrid Network Environments – 2025 Field Evaluation Report”
Related Models in the Same Series or Category
| Model | Description | Cable Support | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| INNIS01 | Network Interface Slave Module | Coaxial/Twinaxial | 97.5 x 225 x 220 | 0.48 |
| INLIM03 | Loop Interface Module | Coaxial/Twinaxial | 97.5 x 225 x 220 | 0.49 |
| NKLS01 | PVC Termination Cable for INNIS01 | Twinaxial | Cable | N/A |
| NKLS03 | PVC Termination Cable for INLIM03 | Twinaxial | Cable | N/A |
| NKCL01 | PVC Coaxial Communication Cable | Coaxial | Cable | N/A |
| NFTP01 | Field Termination Panel for Termination Units | Panel | Custom panel size | N/A |
Popular ABB Bailey Models
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| NTAI03 | Analog Input Termination Unit | Analog Input | 96.5 x 236 x 221 | 0.47 |
| NTAO01 | Analog Output Termination Unit | Analog Output | 96.5 x 236 x 221 | 0.47 |
| NTCL01 | Communication Termination Unit | Communication Link | 96.5 x 236 x 221 | 0.476 |
| NTDI01 | Digital Input Termination Unit | Digital Input | 96.5 x 236 x 221 | 0.48 |
| NTDO01 | Digital Output Termination Unit | Digital Output | 96.5 x 236 x 221 | 0.48 |
| NTMP01 | Multiplexer Termination Unit | Multiplexing | 96.5 x 236 x 221 | 0.48 |
FAQ
FAQ (Frequently Asked Questions)
Q1: What is the main function of the NTCL01?
A1: NTCL01 is used to terminate communication loops by connecting either INNIS01 or INLIM03 modules to INFI-NET or Plant Loop networks.
Q2: Does NTCL01 support both twinaxial and coaxial communication?
A2: Yes, jumper settings on the circuit board allow configuration for either twinaxial or coaxial cable types.
Q3: How is NTCL01 powered?
A3: It operates on 24 VDC power and includes internal fuse protection for overcurrent conditions.
Q4: What safety certifications does NTCL01 hold?
A4: It is CSA certified for use in non-hazardous, industrial control applications.
Q5: What are the dimensions and weight of the NTCL01?
A5: The module measures 96.52 x 236.22 x 220.98 mm and weighs 0.476 kg.
Q6: Where is NTCL01 installed in the control system?
A6: It is mounted on the Field Termination Panel (NFTP01) inside the Bailey Infi 90 cabinet.
Q7: Is the NTCL01 hot-swappable?
A7: No, removing it while the system is live can disrupt communication loops and is not recommended.
Q8: What routine maintenance is needed?
A8: Maintenance includes tightening of connections and cleaning using anti-static tools every 6 months or during system shutdowns.
