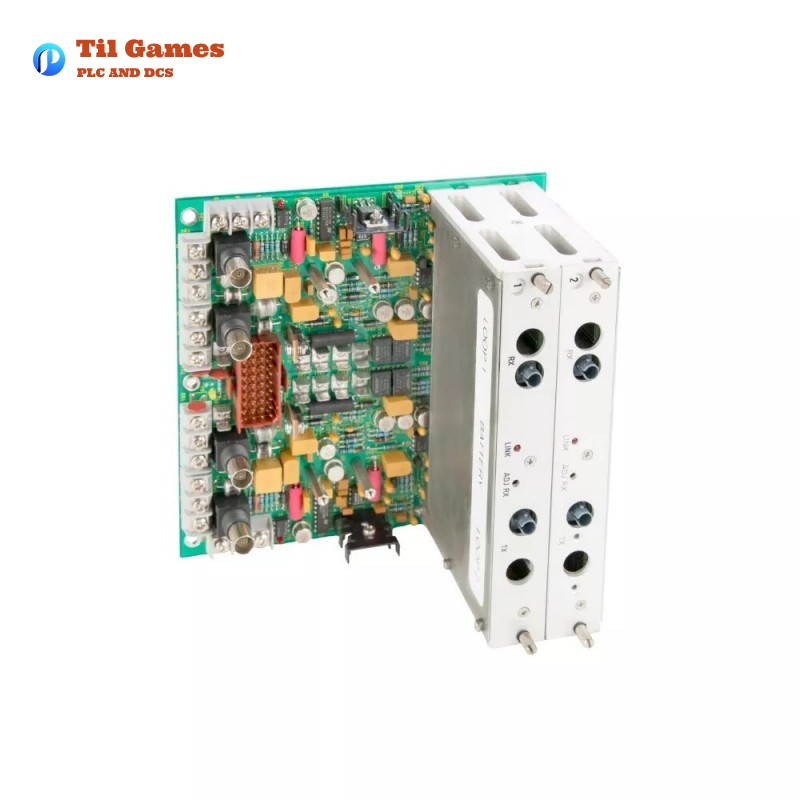

Product Overview: ABB Bailey NTCF01 Infi 90 Termination Unit
The ABB Bailey NTCF01 is a Termination Unit designed for use within the Infi 90 Distributed Control System (DCS) architecture. As a critical component of the control network, the NTCF01 serves as the primary termination point for communication cables, allowing reliable signal interfacing between the controller and the field devices or I/O modules. Its compact form factor and industrial-grade design make it ideal for harsh operational environments, ensuring long-term reliability and efficient system performance. The module complies with stringent industrial standards and is frequently used in demanding process control applications across a variety of industries.
This unit is commonly deployed in systems where organized cable management, signal integrity, and seamless integration with control logic are essential. The NTCF01’s structure supports robust mechanical connections while facilitating electrical termination for consistent signal transmission.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NTCF01 |
| Product Series | Infi 90 Termination Unit |
| Manufacturer | ABB Bailey |
| Function | Cable termination and signal interfacing |
| Compatible System | Infi 90 DCS |
| Mounting Type | Panel Mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Insulation Resistance | >100 MΩ @ 500V DC |
| Dimensions (W x H x D) | 127 x 178 x 178 mm |
| Weight | 0.2 kg |
| Housing Material | Industrial-grade plastic enclosure |
| Compliance | CE, UL certified |
Product Features
-
Termination interface specifically designed for Infi 90 systems
-
Provides solid mechanical and electrical connection points
-
Enables efficient signal distribution and cable management
-
Supports high signal integrity and low electrical noise
-
Compact design suitable for panel mounting
-
Durable enclosure for industrial environments
Product Advantages
-
High Reliability: Built to operate in critical applications with minimal maintenance.
-
System Compatibility: Seamlessly integrates with existing Infi 90 DCS architecture.
-
Ease of Installation: Clear labeling and standardized design allow for easy setup and cable routing.
-
Signal Integrity: Enhanced shielding and grounding options reduce the risk of signal distortion or loss.
-
Cost Efficiency: Reduces system complexity and saves on cable and installation costs.
-
Durability: Withstands high temperatures and vibrations typical in industrial settings.
Applications
-
Power Generation Facilities
-
Oil and Gas Processing Plants
-
Chemical and Petrochemical Industries
-
Pulp and Paper Mills
-
Water and Wastewater Treatment
-
Metal and Mining Operations
-
Pharmaceutical Manufacturing
-
Industrial Automation and SCADA Systems
Latest Industry Reports Featuring the NTCF01
-
“ABB Expands Infi 90 Support with Extended Lifecycle for Legacy Termination Units”
-
“Integration Solutions for Aging DCS Infrastructures: Focus on Bailey NTCF01”
-
“Top 10 ABB Bailey Modules Supporting Long-Term Plant Reliability”
-
“NTCF01 and Cable Management Best Practices in Hazardous Environments”
-
“Migration Strategies: Keeping NTCF01 in the Loop with Modern Controllers”
Related Models in the Same or Compatible Series
| Model | Description | Dimensions (mm) | Weight (kg) | Application |
|---|---|---|---|---|
| NTAI05 | Analog Input Termination Unit | 127 x 178 x 178 | 0.2 | Analog input wiring and termination |
| NTDI01 | Digital Input Termination Unit | 127 x 178 x 178 | 0.2 | Discrete signal interfacing |
| NTAO01 | Analog Output Termination Unit | 127 x 178 x 178 | 0.2 | Output signal termination for actuators |
| NTDO01 | Digital Output Termination Unit | 127 x 178 x 178 | 0.2 | Relay or digital output connectivity |
| NTCL01 | Termination Cable Link Unit | 127 x 178 x 178 | 0.2 | Interconnect for termination racks |
| NTAM01 | Analog Master Termination Unit | 127 x 178 x 178 | 0.2 | Centralized analog signal termination |
Popular ABB Bailey Models
| Model | Description | Dimensions (mm) | Weight (kg) | Application |
|---|---|---|---|---|
| IMMFP12 | Multifunction Processor Module | 184 x 104 x 276 | 1.3 | Control logic execution in Infi 90 DCS |
| INICT13A | Network Interface Controller | 127 x 178 x 178 | 0.5 | Infi-Net communications management |
| INNIS21 | Network Interface Slave | 127 x 178 x 178 | 0.4 | Communications and data relay |
| INFI90 | Distributed Control System Base Module | Varies | Varies | Base module for various control functions |
| BRC410 | Bridge Controller | 210 x 300 x 150 | 1.7 | System communication and processing |
| INPWS01 | Power Supply Module | 127 x 178 x 178 | 0.9 | Power regulation within Infi 90 systems |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the ABB Bailey NTCF01?
A1: The NTCF01 is a termination unit used to terminate signal or communication cables in the Infi 90 DCS, ensuring proper electrical connections and cable organization.
Q2: Is the NTCF01 compatible with modern ABB controllers?
A2: Yes, it remains compatible within legacy systems and can be used alongside migration strategies to newer ABB DCS architectures.
Q3: Can the NTCF01 be mounted on DIN rails?
A3: No, the NTCF01 is designed for panel mounting and is not DIN rail compatible.
Q4: What is the enclosure material of the NTCF01?
A4: It features an industrial-grade plastic housing built for robustness in industrial environments.
Q5: What safety or compliance certifications does the NTCF01 carry?
A5: It meets CE and UL standards, ensuring compliance with international safety regulations.
Q6: What is the weight of the NTCF01?
A6: The unit weighs approximately 0.2 kg.
Q7: What type of wiring connections are supported?
A7: The unit supports standard screw terminal wiring for reliable and secure connections.
Q8: Can the NTCF01 be used in outdoor environments?
A8: It is generally designed for use in enclosed control cabinets; if outdoor use is required, protective enclosures must be used.
