Product Introduction

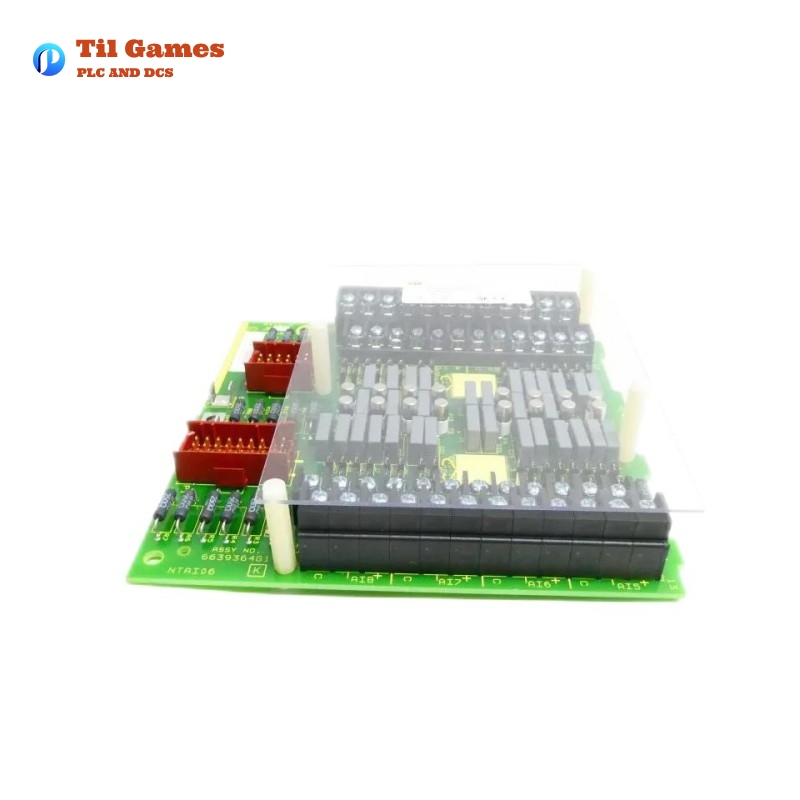

The ABB Bailey NTAI06 Infi 90 Analog Input Termination Unit is designed to handle and terminate analog signals for the INFI 90® strategic process management system. It plays a vital role in connecting field wiring to the IMASI03 Universal Analog Input Slave Module, ensuring seamless integration with the INFI 90 system. This termination unit is equipped with various features that support a wide range of input types, including voltage, current, RTD, and thermocouple inputs, allowing for flexibility in different process control and automation applications.
Product Features
-
Flexible Input Handling: It can handle up to 16 analog inputs, with the ability to process differential or single-ended voltage, system or externally powered 4 to 20 mA, three-wire RTD, thermocouple, and millivolt signals.
-
Jumper Configuration: Input types are configured using jumpers, allowing users to select the signal type (e.g., single-ended, differential voltage, RTD, thermocouple).
-
Cold Junction Reference: Includes an onboard cold junction reference for thermocouple inputs, ensuring accurate temperature readings.
-
Surge Protection: Provides input channel transient and surge protection to safeguard against electrical disturbances.
-
Modular Installation: Designed to mount in the standard NFTP01 Field Termination Panel, facilitating easy installation and maintenance.
-
Distance Flexibility: The termination unit can be located up to 60 meters (200 feet) from the IMASI03 module.
Product Specifications
| Specification | Value |
|---|---|
| Power Requirements | +24 VDC (for system-powered 4-20 mA) |
| Mounting | Fits in the NFTP01 Field Termination Panel |
| Input Channels | 16 analog inputs |
| Signal Types | Voltage (single-ended, differential), Current (4-20 mA), RTD (3-wire), Thermocouple |
| Cold Junction | Built-in cold junction reference for thermocouples |
| Environmental Range | 0°C to 70°C (32°F to 158°F) |
| Humidity | 5% to 90% RH (non-condensing) |
| Dimensions | 96.52 x 236.22 x 218.44 mm |
| Weight | 0.635 kg |
| Certification | CSA certified for nonhazardous locations |
Product Advantages
-
Ease of Installation: The NTAI06 is designed for simple mounting and wiring in a standard field termination panel, making installation fast and efficient.
-
Wide Input Compatibility: It supports a broad range of input types, making it highly versatile and suitable for various process control needs.
-
Reliable Performance: The built-in cold junction reference and surge protection ensure reliable and accurate measurements.
-
Flexible Configuration: Jumper settings allow easy configuration to meet specific application requirements.
Product Applications
The NTAI06 Termination Unit is ideal for use in process control and automation systems that require the interfacing of field equipment with analog input modules. It is commonly used in industries such as:
-
Oil and Gas
-
Chemical Processing
-
Power Generation
-
Manufacturing Automation
-
Environmental Monitoring
Recommended Related Models
Below are related models within the ABB Bailey INFI 90 system and similar devices:
| Model | Description | Key Features |
|---|---|---|
| IMASI03 | Universal Analog Input Slave Module | Supports multiple analog input types, directly interfaces with NTAI06 |
| NTAI03 | Analog Input Termination Unit | 16 analog inputs, jumper-configured for various signal types |
| NTAI05 | Analog Input Termination Unit | Similar functionality, supports up to 16 inputs |
| IMASI04 | Analog Input Slave Module | Higher density input module for complex systems |
| NFTP01 | Field Termination Panel | Provides housing and mounts for termination units like the NTAI06 |
| NKAS01 | Cable for Termination Unit | PVC-insulated cable for interconnection of termination units to modules |
Popular Bailey Models
Below are some of the most popular Bailey models:
| Model | Description | Key Features |
|---|---|---|
| IMASI03 | Universal Analog Input Slave Module | High versatility, supports multiple input types |
| NTAI03 | Analog Input Termination Unit | 16 inputs, jumper-configurable |
| IMASI02 | Analog Input Slave Module | Compact, supports standard analog inputs |
| NTAI02 | Analog Input Termination Unit | Supports up to 8 inputs, ideal for smaller applications |
| IMFP01 | Multi-Function Processor | Handles multiple input and output operations in the system |
| IMMFP01 | Multi-Function Processor for Modular Systems | Modular design for complex control systems |
FAQ
FAQ (Frequently Asked Questions)
-
Q: What input signal types does the NTAI06 support?
A: The NTAI06 supports single-ended and differential voltage, system-powered and externally powered 4-20 mA, RTD, millivolt, and thermocouple inputs. -
Q: How many analog inputs can the NTAI06 handle?
A: The NTAI06 can handle up to 16 analog inputs. -
Q: What is the maximum distance the NTAI06 can be placed from the IMASI03 module?
A: The NTAI06 can be located up to 60 meters (200 feet) away from the IMASI03 module. -
Q: What type of protection does the NTAI06 offer?
A: The NTAI06 includes input channel transient and surge protection to safeguard against electrical disturbances. -
Q: Can I use thermocouple inputs with the NTAI06?
A: Yes, the NTAI06 includes a built-in cold junction reference for accurate thermocouple measurements. -
Q: How is the NTAI06 mounted in the system?
A: The NTAI06 is mounted in the NFTP01 Field Termination Panel using standard screws. -
Q: What is the recommended maintenance schedule for the NTAI06?
A: It is recommended to clean and tighten all power and grounding connections every 6 months, or during plant shutdown. -
Q: What should I do if the NTAI06 stops working?
A: If the NTAI06 fails, it should be replaced with a new unit, as it is not designed for repair.
