Product Description

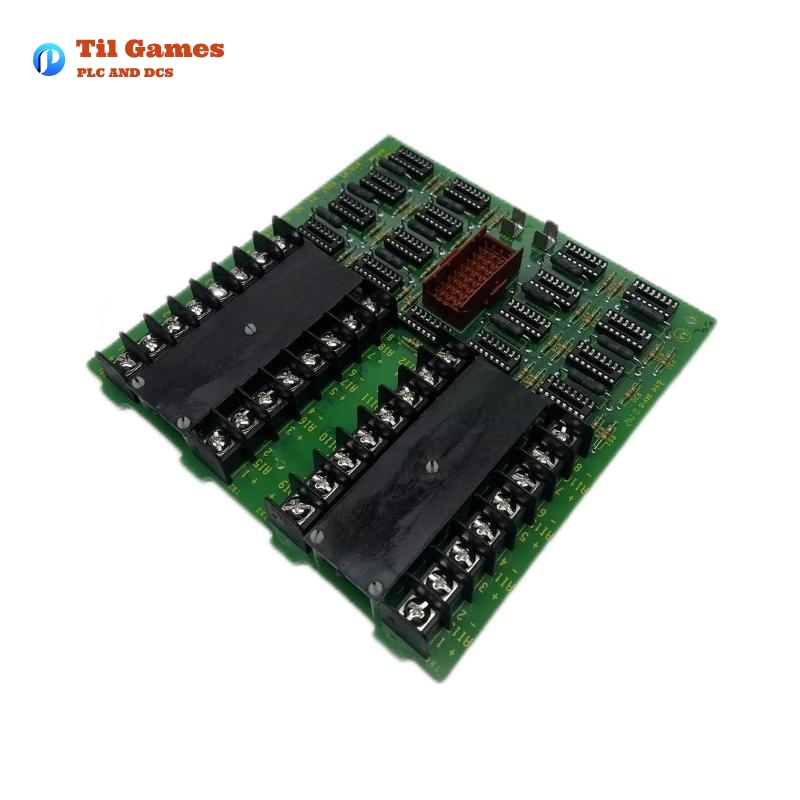

The NTAI05 Analog Input Termination Unit is an integral component of the INFI 90® Process Control System. This unit serves as an interface between field equipment and Bailey Controls smart transmitters. It connects to various slave modules like the IMASM01, IMASI02, and IMFBS01. The NTAI05 unit facilitates the transmission of analog signals to these modules, which then relay data to INFI 90 Multi-Function Processors (IMAMM03, IMMFP01/02/03) and Multi-Function Controllers (NMFC03/04/05).
The termination unit can handle up to 16 analog inputs, depending on the type of slave module used, either in differential or single-ended configurations. These signals are processed by the slave modules and fed into the control system for further processing and decision-making.
Product Features
-
Input Capacity: Handles up to 16 analog inputs, depending on the slave module used.
-
Modular Design: Mounts to a standard NFTP01 Field Termination Panel.
-
Signal Types Supported:
-
4-20mA DC (system or externally powered)
-
Voltage signals: -10 VDC to +10 VDC, 0 VDC to 10 VDC, 1 VDC to 5 VDC, etc.
-
-
Flexible Configuration: Dipshunts for configuring input types (voltage/current, single-ended/differential).
-
Integrated Terminals: On-board terminal blocks for field wiring.
-
Slave Modules: Compatible with IMASI02, IMASM01, and IMFBS01 slave modules.
-
No Serviceable Parts: The unit is designed for minimal maintenance.
Product Specifications
| Parameter | Value |
|---|---|
| Power Requirements | +24 VDC, 20 mA per input |
| Mounting | Mounts in the NFTP01 Field Termination Panel |
| Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Humidity | 0% to 95% RH up to 55°C (non-condensing) |
| Dimensions | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.54 kg |
| Cable Connections | NKTU01/11 cable (PVC or non-PVC) |
| Environmental | Non-corrosive atmosphere required |
| Certification | CSA certified for ordinary locations |
Product Advantages
-
High Flexibility: Supports various signal types (4-20 mA, different voltage ranges), making it adaptable to various field devices.
-
Seamless Integration: Easy integration with other INFI 90® modules such as slave modules and multi-function processors.
-
Field Wiring Flexibility: Termination unit has onboard terminal blocks that support a range of field wiring types (12 to 22 AWG).
-
Minimal Maintenance: The unit contains no serviceable parts, reducing the need for extensive maintenance.
Applications
The NTAI05 Analog Input Termination Unit is commonly used in the following areas:
-
Industrial Process Automation: Used in processes that require accurate and reliable analog signal processing.
-
Remote Monitoring: Suitable for field equipment such as transmitters and sensors, facilitating remote data acquisition.
-
Control Systems: Integrates seamlessly into INFI 90® systems for large-scale industrial automation.
Related and Popular Models
| Model | Description | Inputs | Connection Type | Features |
|---|---|---|---|---|
| IMASI02 | Analog Slave Input Module | 15 | 4-20 mA, Voltage | Handles differential and single-ended inputs. |
| IMASM01 | Analog Slave Module | 16 | 4-20 mA, Voltage | Supports a variety of analog signals. |
| IMFBS01 | Field Bus Slave Module | 16 | Fieldbus communication | Ideal for bus-based systems. |
| IMAMM03 | Analog Master Module | N/A | N/A | Master module for analog input/output systems. |
| IMMFP01 | Multi-Function Processor | N/A | N/A | Processes input/output from various modules. |
| NMFC03 | Multi-Function Controller | N/A | N/A | Advanced control system integration. |
FAQ
FAQ
Q1: What is the maximum number of inputs the NTAI05 can handle?
A1: The NTAI05 can handle up to 16 analog inputs, depending on the slave module used.
Q2: How are input types configured on the NTAI05?
A2: The input types are configured using dipshunts on the termination unit. You can select current or voltage signals, and whether they are differential or single-ended.
Q3: Can the NTAI05 be used with any other modules besides the IMASI02 and IMASM01?
A3: Yes, it is also compatible with the IMFBS01 Field Bus Slave Module.
Q4: What kind of environmental conditions can the NTAI05 withstand?
A4: The NTAI05 can operate in environments with temperatures ranging from 0°C to 70°C (32°F to 158°F) and relative humidity between 0% and 95%.
Q5: What is the recommended wiring size for field connections?
A5: The recommended wire size for field connections is 12 to 22 AWG.
Q6: Does the NTAI05 require any external cooling?
A6: No, the NTAI05 does not require any external cooling when used in Bailey cabinets and operated within the specified limits.
Q7: Is the NTAI05 CSA certified?
A7: Yes, it is CSA certified for use as process control equipment in ordinary (non-hazardous) locations.
Q8: What kind of maintenance does the NTAI05 require?
A8: The NTAI05 requires minimal maintenance, including periodic cleaning and tightening of power and grounding connections every 6 months or during plant shutdowns.
