Product Overview

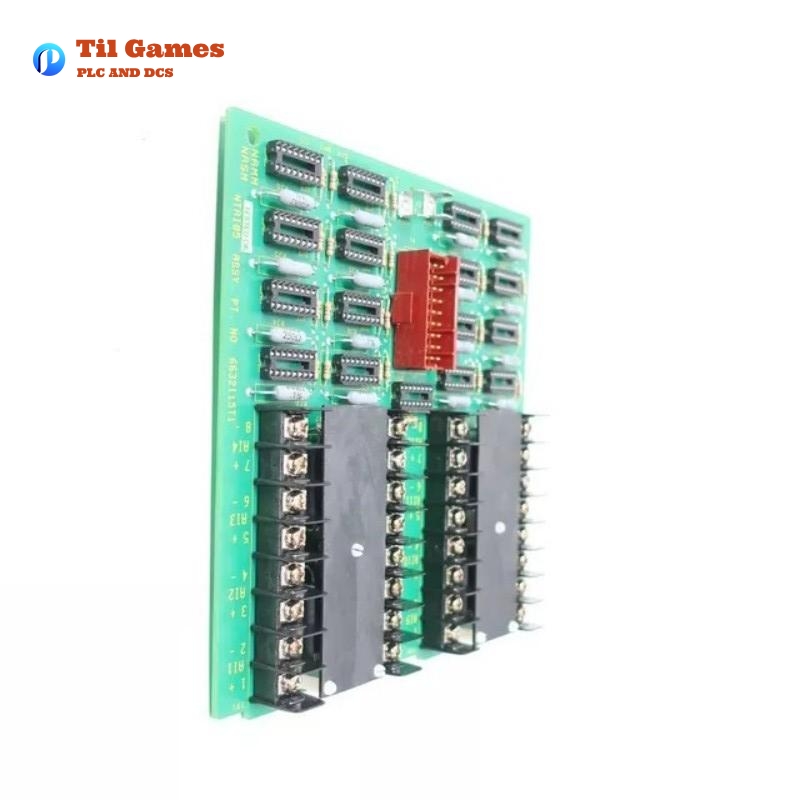

The NTAI05-A Infi 90 Analog Input Termination Unit is a crucial component used to connect field equipment and Bailey Controls smart transmitters to INFI 90® systems. It serves as an interface for handling analog inputs, connecting slave modules to the field devices. This unit is specifically designed for systems requiring reliable input from devices such as pressure, temperature, or pH transmitters.
Product Features
-
Input Handling: It supports 15 or 16 analog input channels, depending on the slave module used (IMASI02, IMASM01, IMFBS01).
-
Flexible Input Types: Configurable to handle various input types including 4-20mA, voltage inputs ranging from -10VDC to +10VDC, and more.
-
Standard Factory-Wired Cable: Provides flexibility by connecting to different slave modules such as IMASM01 or IMFBS01.
-
Easy Wiring: On-board terminal blocks for easy field and I/O wiring connections.
-
Compact Design: A single printed circuit board mounted to the NFTP01 Field Termination Panel for streamlined integration into systems.
Specifications
| Parameter | Value |
|---|---|
| Power Requirements | +24 VDC, 20 mA per input |
| Mounting | Mounts in the NFTP01 Field Termination Panel |
| Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Humidity Range | 0% to 95% up to 55°C (non-condensing) |
| Pressure Range | Sea level to 3 km (1.86 mi) |
| Dimensions | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.54 kg |
| Certification | CSA certified for ordinary (non-hazardous) location |
Advantages
-
High Channel Density: Supports up to 16 channels for high-density applications, reducing the need for multiple modules.
-
Easy Integration: Seamlessly integrates with various INFI 90 modules like IMASI02, IMASM01, and IMFBS01.
-
Field Connectivity: Easily connects to field devices, ensuring accurate data collection from transmitters.
-
Reliability: Designed for use in harsh industrial environments, ensuring stable performance and long-term reliability.
-
Scalable: Can be easily expanded to accommodate more modules as needed, providing flexibility for growing systems.
Applications
-
Industrial Automation: Ideal for process control in industries like chemical, oil and gas, and manufacturing.
-
Remote Monitoring: Used in systems requiring real-time monitoring of field devices, including pressure, temperature, and flow.
-
Energy Management: Efficiently connects energy meters and other instrumentation for energy monitoring and management.
Related Models
Below are six models from the same series or related to the NTAI05-A:
| Model | Description | Key Features |
|---|---|---|
| IMASI02 | Analog Input Slave Module | 15 inputs, configurable input types |
| IMASM01 | Analog Slave Module | 16 inputs, differential or single-ended |
| IMFBS01 | Field Bus Slave Module | Supports fieldbus protocols |
| NFTP01 | Field Termination Panel | Supports mounting of NTAI05 and other units |
| NKTU01 | Cable for Termination Unit (PVC) | Connects NTAI05 to slave modules |
| NKTU11 | Cable for Termination Unit (non-PVC) | Connects NTAI05 to slave modules |
Popular Bailey Models
Here are six other popular models from the Bailey brand:
| Model | Description | Key Features |
|---|---|---|
| IMAMM03 | Analog Master Module | Supports 16 analog inputs |
| IMASI01 | Analog Slave Input Module | For use with a wide range of input signals |
| IMFBS02 | Field Bus Slave Module | Advanced fieldbus interface |
| IMMFP01 | Multi-Function Processor | Handles multiple input/output signals |
| IMTCH01 | Touch Panel for Infi 90 systems | User interface for system monitoring |
| IMASC02 | Analog Slave Communication Module | Ensures robust analog data processing |
FAQ
FAQ (Frequently Asked Questions)
Q1: What types of analog inputs does the NTAI05 support?
-
A1: The NTAI05 supports various input types including 4-20mA, -10V to +10V, 0V to 10V, 1V to 5V, 0V to 5V, and 0V to 1V (with IMASI02 and IMFBS01 modules).
Q2: How do I install the NTAI05 termination unit?
-
A2: The NTAI05 unit mounts onto the NFTP01 Field Termination Panel using screws. Ensure proper connection of field wiring and communication cables.
Q3: Can I use the NTAI05 with different slave modules?
-
A3: Yes, the NTAI05 is compatible with the IMASI02, IMASM01, and IMFBS01 slave modules.
Q4: What is the maximum number of analog inputs supported?
-
A4: The NTAI05 supports up to 16 analog inputs when used with the IMASM01 module, and up to 15 inputs with the IMASI02 or IMFBS01 modules.
Q5: What environmental conditions are suitable for the NTAI05?
-
A5: The NTAI05 operates in temperatures from 0°C to 70°C (32°F to 158°F) and is suitable for non-corrosive environments.
Q6: What are the maintenance requirements for the NTAI05?
-
A6: Perform maintenance every six months, including cleaning and tightening connections, and removing dust with a static-safe vacuum cleaner.
Q7: How do I replace the NTAI05 unit?
-
A7: To replace, disconnect power, remove the faulty unit, install the new unit, and verify all connections and settings before powering up.
Q8: Can the NTAI05 handle both system-powered and externally powered inputs?
-
A8: Yes, the NTAI05 supports both system-powered and externally powered inputs, depending on the slave module configuration.
