Product Introduction:

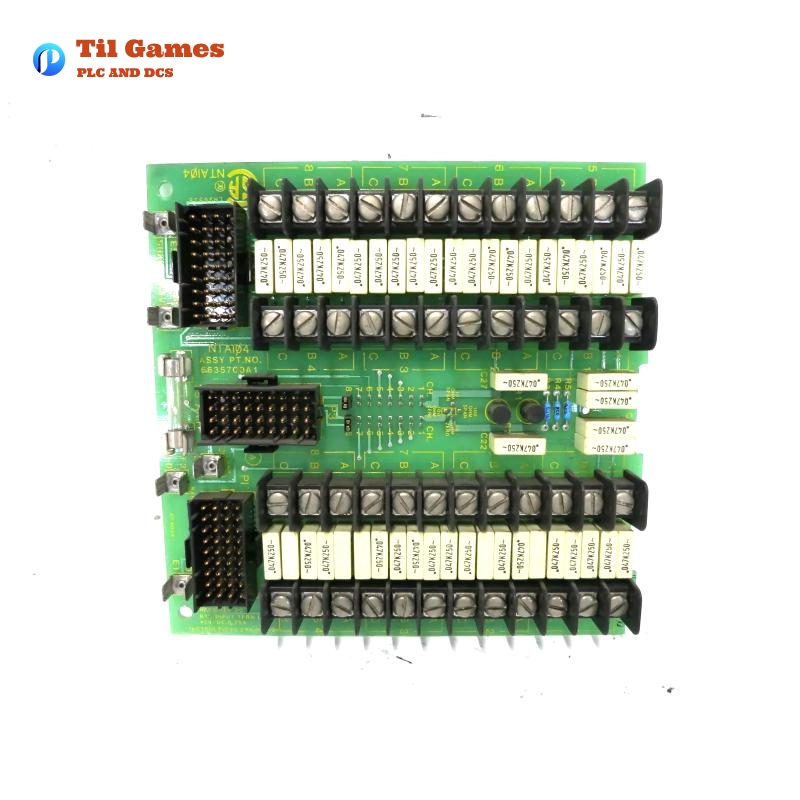

The ABB Bailey NTAI04 Infi 90 Analog Input Termination Unit is a high-performance module designed to terminate three-wire RTD signals for the INFI 90® system. It is used with the IMASM03 and IMASM04 Analog Slave Modules and provides a robust solution for managing analog inputs in process control systems.
Key Specifications:
| Property | Value |
|---|---|
| Model | NTAI04 |
| Power Supply | +24 VDC |
| Mounting | Field Termination Panel (NFTP01) |
| Environmental | Ambient Temperature: 0° to 70° C |
| Humidity | 5% to 90% ± 5% up to 55° C (non-condensing) |
| Pressure | Sea Level to 3 km |
| Cooling Requirements | No additional cooling required |
| Weight | 0.54 kg |
| Dimensions (H x W x D) | 78.74 x 215.9 x 233.68 mm |
| Input Channels | 16 three-wire RTD inputs |
| Certification | CSA certified for process control systems |
| Cable Connections | NKTU01, NKTU11 cables |
Product Features:
-
RTD Signal Input: The NTAI04 provides termination for up to 16 three-wire RTD signals, allowing it to work with a variety of sensors like 10 ohm copper, 100 ohm platinum, and 120 ohm nickel RTDs.
-
Slave Module Support: Can terminate up to two slave modules (IMASM03 and IMASM04), which each handle eight inputs.
-
Calibrated for Precision: Local on-card precision resistors for input calibration via P3 connector.
-
Transient Protection: Built-in protection for input channels against transient and surge voltages.
Advantages:
-
Flexible Integration: Seamless integration with INFI 90 system, supporting both IMASM03 and IMASM04 slave modules.
-
Enhanced System Performance: Offers high accuracy and reliable performance in process control applications with RTD inputs.
-
Durability: Designed for harsh environments with robust protection against electrical transients and surges.
-
Ease of Installation: Easy to mount in the standard field termination panel (NFTP01), and simplified cable connections.
Applications:
-
Industrial Automation: Widely used in industrial control systems, particularly in environments requiring precise temperature measurements.
-
Process Control: Ideal for controlling processes where temperature regulation is critical.
-
Power Plants: Frequently used in power generation plants for temperature monitoring.
-
Manufacturing: Can be integrated into manufacturing systems requiring RTD input for temperature control.
Latest Reports:
Unfortunately, there are no specific recent reports available for this product, but it is a part of the well-established ABB Infi 90 system, which is widely used in critical industrial applications.
Related Models:
Here are six related models from the ABB Infi 90 system:
| Model | Description | Input Channels | Mounting | Certification |
|---|---|---|---|---|
| IMASM03 | Analog Slave Module (8 Inputs) | 8 | Field Termination Panel | CSA certified |
| IMASM04 | Analog Slave Module (8 Inputs) | 8 | Field Termination Panel | CSA certified |
| IMAMM03 | Analog Master Module | N/A | Field Termination Panel | CSA certified |
| NTAI03 | Analog Input Termination Unit (4 Inputs) | 4 | Field Termination Panel | CSA certified |
| IMACC01 | Analog Channel Expansion Module | 16 | Field Termination Panel | CSA certified |
| IMSLM01 | Slave Module for High-Density Inputs | 16 | Field Termination Panel | CSA certified |
Popular Bailey Models:
| Model | Description | Input Channels | Mounting | Certification |
|---|---|---|---|---|
| IMASM01 | Analog Slave Module (8 Inputs) | 8 | Field Termination Panel | CSA certified |
| IMASM02 | Analog Slave Module (8 Inputs) | 8 | Field Termination Panel | CSA certified |
| IMAMM01 | Analog Master Module | N/A | Field Termination Panel | CSA certified |
| NTAI02 | Analog Input Termination Unit (8 Inputs) | 8 | Field Termination Panel | CSA certified |
| IMIOM03 | Digital I/O Module | 16 | Field Termination Panel | CSA certified |
| IMAI01 | Analog Input Module | 16 | Field Termination Panel | CSA certified |
FAQ
FAQ:
-
Q: What is the maximum number of RTD inputs supported by the NTAI04?
A: The NTAI04 supports up to 16 three-wire RTD inputs. -
Q: Can the NTAI04 be used with other slave modules?
A: The NTAI04 is compatible with IMASM03 and IMASM04 analog slave modules. -
Q: What type of RTD sensors are supported?
A: The unit supports 10 ohm copper, 100 ohm platinum, and 120 ohm nickel three-wire RTDs. -
Q: What environmental conditions does the NTAI04 operate under?
A: The unit operates in temperatures from 0° to 70° C, with relative humidity from 5% to 90%. -
Q: How is the NTAI04 installed?
A: The unit mounts in a standard field termination panel (NFTP01) and requires connection of cables to the slave modules. -
Q: Does the NTAI04 offer protection against electrical surges?
A: Yes, the NTAI04 has transient and surge protection for input channels. -
Q: Is the NTAI04 CSA certified?
A: Yes, the NTAI04 is CSA certified for process control equipment in ordinary (non-hazardous) locations. -
Q: What power supply is required for the NTAI04?
A: The NTAI04 requires a +24 VDC power supply.
