Product Overview:

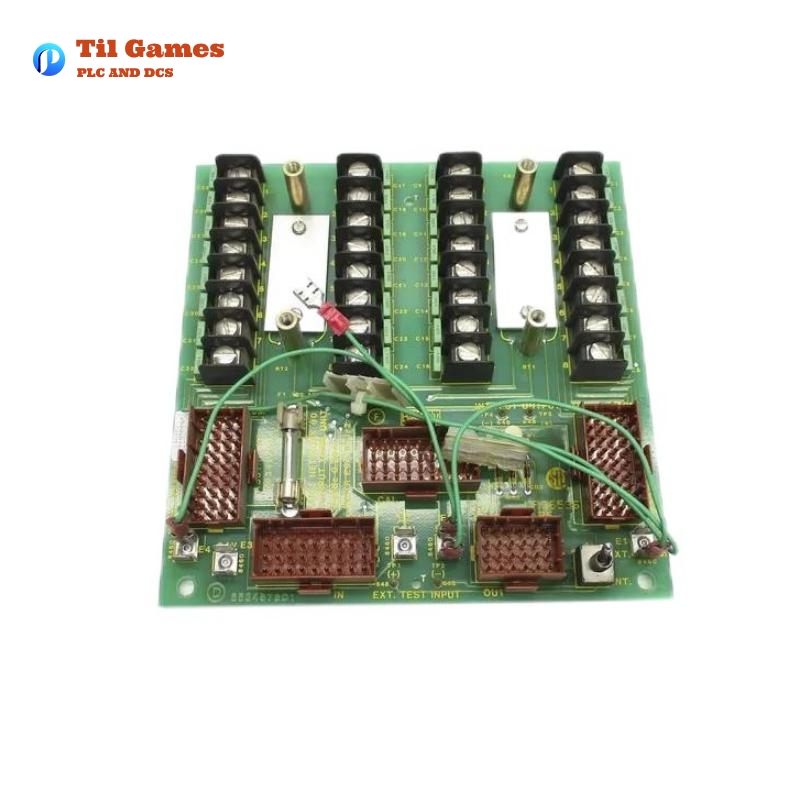

The NTAI02 is a Thermocouple Analog Input Termination Unit designed for use in the INFI 90® system. It provides an essential interface between field wiring and the Analog Master Module (IMAMM03) or slave modules (IMASM02). This unit can handle multiple thermocouple or millivolt inputs from the field, ensuring a reliable signal transmission for accurate process control.
Product Features:
-
Field Wiring Compatibility: Accepts up to 16 thermocouple and millivolt input signals.
-
Flexible Calibration: The unit includes an onboard calibration socket for internal or external calibration voltage sources.
-
Cold Junction Reference: Provides a local cold junction reference to ensure temperature measurement accuracy.
-
Modular Design: Designed for use with the IMASM02 slave module and IMAMM03 master module, with capabilities for cascading up to four NTAI02 units.
-
Compact and Reliable: Mounts into a standard Field Termination Panel (NFTP01) for easy installation.
-
Signal Routing: Facilitates signal routing to the IMASM02 for further processing by the IMAMM03.
Product Applications:
The NTAI02 is used primarily in process automation systems to manage temperature readings from thermocouples. It finds application in various industrial sectors, including:
-
Power generation
-
Chemical processing
-
Oil and gas
-
Manufacturing
-
Any process requiring accurate thermocouple or millivolt measurements.
Product Advantages:
-
Efficient Integration: Easily integrates with existing INFI 90® system modules, enhancing the scalability of process management.
-
Durable and Safe: Designed with environmental protection standards, including surge protection and compliance with IEEE surge withstand capabilities.
-
Ease of Calibration: Simplified calibration procedure with both internal and external voltage sources.
-
Low Maintenance: Minimal maintenance required, primarily dust removal and ensuring proper connections during regular check-ups.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | NTAI02 6634679F1 |
| Input Signals | 16 Thermocouple or Millivolt inputs |
| Mounting | Mounts in Field Termination Panel (NFTP01) |
| Power Supply | +24 VDC, 10 mA per slave module |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Humidity | 5% to 90% ± 5% up to 55°C, 5% to 40% ± 5% up to 70°C |
| Surge Protection | Meets IEEE-472-1974 Surge Withstand Capability Test |
| Weight | 0.54 kg (1.19 lbs) |
| Dimensions | 78.74 x 215.9 x 233.68 mm |
| Certification | CSA Certified for use as process control equipment |
Related and Recommended Models:
| Model | Description | Key Feature |
|---|---|---|
| IMASM02 | Thermocouple Input Slave Module | Connects to NTAI02 for input signals |
| IMAMM03 | Analog Master Module | Processes signals from slave modules |
| NFTP01 | Field Termination Panel | Mounts NTAI02 for field wiring |
| NTAM01 | Analog Master Module Termination Unit | Provides connection for master module |
| NKAI01 | Interconnect Cable (PVC) | Connects NTAI02 to other modules |
| NKTU01 | Cable, Termination Module (PVC) | Connects NTAI02 to IMASM02 |
Popular Bailey Models:
| Model | Description | Key Feature |
|---|---|---|
| IMASM01 | Analog Input Slave Module | Integrates with the NTAI02 for signals |
| IMAMM02 | Analog Master Module | Central processing unit |
| NTAM02 | Master Module Termination Unit | Interconnects modules in complex systems |
| NKTU02 | Non-PVC Cable | Higher temperature rating cables |
| NKAI02 | Interconnect Cable (Non-PVC) | For interconnection between modules |
| IMASP02 | High-speed Slave Module | Optimized for fast-response signals |
FAQ
Frequently Asked Questions (FAQ):
Q1: What types of input signals can the NTAI02 handle?
-
A1: The NTAI02 can handle 16 thermocouple or millivolt signals from field equipment.
Q2: How many NTAI02 units can be interconnected?
-
A2: Up to four NTAI02 units can be interconnected, allowing the IMAMM03 master module to monitor multiple slave modules.
Q3: What is the power requirement for the NTAI02?
-
A3: The NTAI02 requires +24 VDC, with 10 mA current draw per slave module.
Q4: Can I use the NTAI02 for other types of input signals apart from thermocouples?
-
A4: Yes, the NTAI02 can also handle millivolt input signals.
Q5: How do I calibrate the NTAI02?
-
A5: Calibration is done via an onboard calibration socket, with the option to use internal or external calibration voltage sources.
Q6: What is the operating temperature range for the NTAI02?
-
A6: The NTAI02 operates in a temperature range of 0°C to 70°C (32°F to 158°F).
Q7: How do I install the NTAI02?
-
A7: The NTAI02 mounts in a standard field termination panel (NFTP01), with cable connections to slave modules and the master module.
Q8: What maintenance does the NTAI02 require?
-
A8: The unit requires minimal maintenance, primarily cleaning and ensuring that connections are secure during regular checks.
