Product Overview

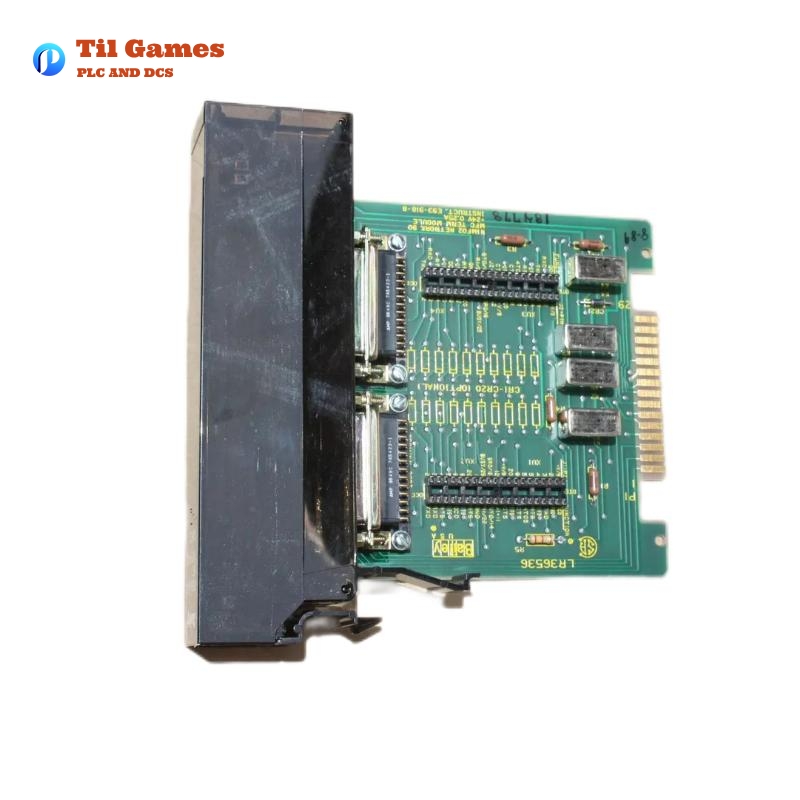

The ABB Bailey NIMF02 is a termination module designed for use with the INFI 90® process control system. It serves as a critical interface between plant equipment and multi-function controllers, enabling seamless communication and redundancy in industrial automation applications.
This module is part of the Elsag Bailey Process Automation lineup, known for its reliability and robust performance in harsh industrial environments. The NIMF02 works in conjunction with the NIMF01 module to provide redundant communication paths, ensuring system availability and fault tolerance.
Key Features
- Redundancy Support: Enables redundant communication for multi-function controllers, ensuring uninterrupted operation.
- RS-232-C Ports: Terminates two isolated RS-232-C ports for communication with computers, terminals, or printers.
- Serial Link: Provides a serial link to connect control stations via the NICS01 Control I/O Termination Module.
- Dipshunt Configurable: Allows flexible configuration for DTE or DCE operation, supporting various communication protocols.
- LED Indicator: Includes an LED for status monitoring (only active with IMMFC03 modules).
- Robust Design: Built to withstand industrial environments with non-corrosive materials and high-temperature tolerance.
Product Advantages
- High Reliability: Designed for continuous operation in critical process control applications.
- Easy Integration: Compatible with a wide range of INFI 90 modules, including IMMFC03/04/05, INICT01, INPPT01, and INPCT01.
- Flexible Configuration: Dipshunt settings allow customization for specific communication needs.
- Redundancy Ready: Ensures system uptime by supporting redundant module configurations.
- Industry-Standard Compliance: Meets CSA certification for use in non-hazardous locations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 78.74 x 215.9 x 233.68 mm (3.1 x 8.5 x 9.2 in) |
| Weight | 0.7 kg (1.54 lbs) |
| Power Requirements | +24 VDC, 160 mA max (LED consumes 10 mA) |
| Communication Ports | 2 RS-232-C ports, 1 serial link for stations |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 5% to 90% (non-condensing) |
| Certification | CSA certified for ordinary (non-hazardous) locations |
| Cable Insulation | PVC (UL Rating CL2) or Non-PVC (UL Rating PLTC) |
| Mounting | Single slot in NTMU01/NTMU02 Termination Mounting Unit |
Applications
The NIMF02 is widely used in industrial automation and process control systems, including:
- Power Plants: For redundant control and monitoring of critical processes.
- Oil & Gas: Ensures reliable communication in upstream and downstream operations.
- Chemical Processing: Supports complex control strategies with high availability.
- Water Treatment: Facilitates seamless integration with control stations and SCADA systems.
- Manufacturing: Provides robust communication links for automated production lines.
Latest News Headlines
- “ABB Bailey NIMF02 Enhances Redundancy in INFI 90 Systems for Critical Industrial Applications”
- “Elsag Bailey’s NIMF02 Termination Module Sets New Standards for Process Control Reliability”
- “INFI 90 Users Adopt NIMF02 for Uninterrupted Communication in Harsh Environments”
Recommended Related Models
Same Series or Related Models
| Model | Description | Key Parameters |
|---|---|---|
| NIMF01 | Primary termination module for multi-function controllers | Same dimensions, 2 RS-232-C ports |
| IMMFC03 | Multi-Function Controller Module | 8 dipswitch settings, 2 serial ports |
| INICT01 | INFI-NET to Computer Transfer Module | Supports MODCOMP/VAX mainframes |
| INPPT01 | Plant Loop to Plant Loop Transfer Module | Configurable for DTE/DCE operation |
| INPCT01 | Plant Loop to Computer Transfer Module | Baud rates up to 19200 |
| NICS01 | Control I/O Termination Module | Interfaces with NDCS03/IISAC01 stations |
Popular Bailey Brand Models
| Model | Description | Key Parameters |
|---|---|---|
| NTMU01 | Termination Mounting Unit (Rear Mount) | 12-slot capacity, 24 VDC power |
| NTMU02 | Termination Mounting Unit (Front Mount) | 12-slot capacity, 24 VDC power |
| NDCS03 | Digital Control Station | 32 digital I/O points |
| IISAC01 | Analog Control Station | 8 analog inputs, 4 analog outputs |
| NKTM01 | Ribbon Cable for Module-TMU Connection | 30 m max length, flat ribbon design |
| NKTU02 | PVC Cable for Module-TMU Connection | 61 m max length, shielded |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the NIMF02 module?
A1: The NIMF02 provides redundant communication paths for multi-function controllers in the INFI 90 system, ensuring uninterrupted operation.
Q2: Can the NIMF02 be used without the NIMF01?
A2: No, the NIMF02 is designed to work in conjunction with the NIMF01 for redundancy.
Q3: What types of communication ports does the NIMF02 support?
A3: It supports two isolated RS-232-C ports and one serial link for station communication.
Q4: Is the NIMF02 compatible with all INFI 90 controllers?
A4: It is compatible with IMMFC03/04/05, INICT01, INPPT01, and INPCT01 modules.
Q5: What is the maximum operating temperature for the NIMF02?
A5: The module operates reliably between 0°C and 70°C (32°F to 158°F).
Q6: How is the NIMF02 configured for DTE or DCE operation?
A6: Dipshunts on the module allow configuration for DTE or DCE modes.
Q7: Does the NIMF02 require special handling during installation?
A7: Yes, electrostatic discharge (ESD) precautions must be followed to prevent damage.
Q8: What certifications does the NIMF02 hold?
A8: It is CSA certified for use in ordinary (non-hazardous) locations.
