Product Introduction

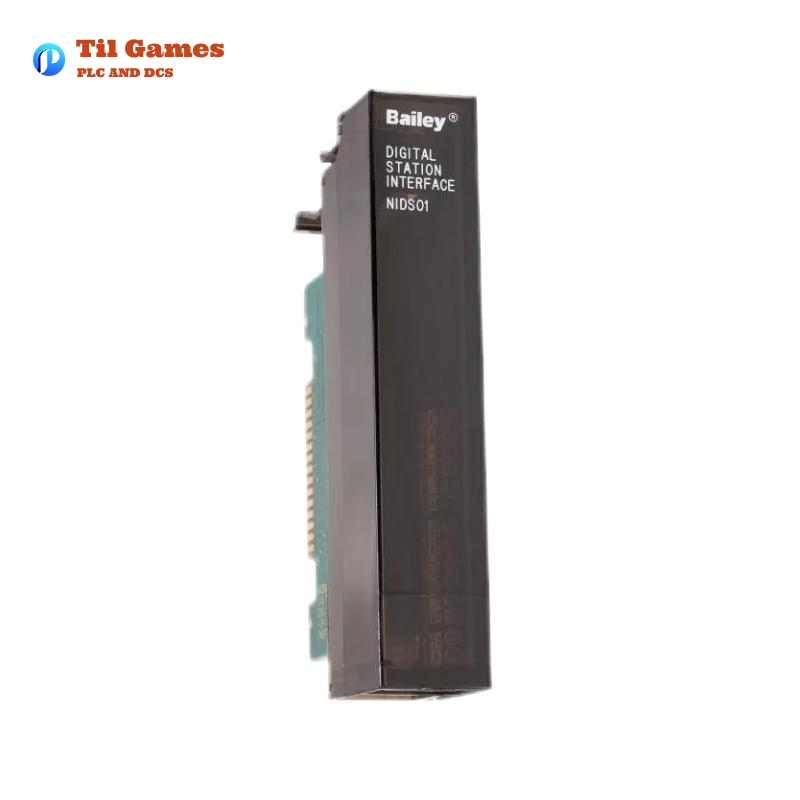

The NIDS01 Digital Station Termination Module is a key component of the Infi 90® process automation system, designed to interface plant equipment with the INFI 90® process modules. It connects to various control stations, including IISAC01 Analog Control Stations, NDCS03 Digital Control Stations, and NDIS01 Digital Indicator Stations. The NIDS01 provides termination and signal handling for these stations, ensuring reliable operation within the system.
Product Specifications
| Property | Characteristic/Value |
|---|---|
| Power Requirements | +24 VDC from the 24 VDC bus bar of the termination mounting unit |
| Outputs | Controls electric drive devices, with manual raise/lower capability |
| Mounting | One slot in a standard INFI 90 termination mounting unit |
| Ambient Temperature | 0° to 70°C (32° to 158°F) |
| Relative Humidity | 0% to 95% up to 55°C (noncondensing), 0% to 45% up to 70°C (noncondensing) |
| Air Quality | Noncorrosive |
| Certification | CSA certified for use as process control equipment in ordinary locations |
| Dimensions | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.7 kg |
Product Features
-
Termination and Signal Handling: Facilitates signal transfer between plant equipment and INFI 90® process modules.
-
Bypass Capability: Supports bypass for electric drives when required, ensuring uninterrupted operation.
-
Electric Drive Control: Allows manual raise/lower control and automatic operation of electric drive systems.
-
Connection Versatility: Interfaces with various stations (IISAC01, NDCS03, NDIS01) for flexible configurations in automation systems.
Product Advantages
-
High Reliability: Ensures reliable signal termination and communication between field equipment and control systems.
-
Flexible Connectivity: Supports multiple configurations and stations, offering adaptability in process control systems.
-
Ease of Installation: Simple to install with clear wiring instructions, reducing setup time.
-
Maintenance-Friendly: Designed for easy maintenance, with accessible fuse replacement and modular components.
Product Applications
The NIDS01 is primarily used in process automation systems for industries such as:
-
Oil and Gas: For control of drilling and production equipment.
-
Chemical Processing: Used in control and monitoring of reactors and distillation columns.
-
Power Generation: Interface for electric drive systems controlling turbines and pumps.
Latest Reports
-
“The Role of Digital Station Termination Modules in Modern Process Control Systems”
-
“Enhancing System Efficiency with Infi 90® Termination Modules in High-Demand Environments”
Recommended Related Models
| Model | Description | Power Supply | Mounting | I/O Connections |
|---|---|---|---|---|
| NICS01 | Controller/Station Termination Module | 24 VDC | 1 slot in termination unit | Various digital and analog |
| NDCS03 | Digital Control Station (for digital outputs) | 24 VDC | Panel mounted | Digital outputs |
| NDIS01 | Digital Indicator Station (for digital displays) | 24 VDC | Panel mounted | Digital input/output |
| IISAC01 | Analog Control Station (for analog inputs/outputs) | 24 VDC | Panel mounted | Analog input/output |
| NKTD01 | Termination Cable (PVC) for NIDS01 to stations | – | Flexible cable connection | Various station configurations |
| 6634408A2 | Ribbon Cable for module connection | – | Fixed cable connection | Connects to NICS01 |
Recommended Popular Bailey Models
| Model | Description | Power Supply | Mounting | I/O Connections |
|---|---|---|---|---|
| IMMFP01 | Multi-function Processor Module | 24 VDC | Mounts in standard rack | Multiple control loops |
| IMMFC03 | Multi-function Controller Module | 24 VDC | Mounts in standard rack | Multiple control loops |
| NICS01 | Controller/Station Termination Module | 24 VDC | 1 slot in termination unit | Digital and analog |
| NDCS03 | Digital Control Station | 24 VDC | Panel mounted | Digital input/output |
| NDIS01 | Digital Indicator Station | 24 VDC | Panel mounted | Digital input/output |
| IISAC01 | Analog Control Station | 24 VDC | Panel mounted | Analog input/output |
FAQ
FAQs
Q1: What is the NIDS01 module used for?
-
The NIDS01 module is used for terminating signals between plant equipment and INFI 90® process modules, ensuring reliable communication and control of electric drive systems.
Q2: What are the power requirements for the NIDS01?
-
The NIDS01 requires +24 VDC from the 24 VDC bus bar of the termination mounting unit.
Q3: What stations can be connected to the NIDS01 module?
-
The NIDS01 module can be connected to IISAC01 Analog Control Stations, NDCS03 Digital Control Stations, and NDIS01 Digital Indicator Stations.
Q4: How is the NIDS01 mounted?
-
It occupies one slot in a standard INFI 90 termination mounting unit.
Q5: Can the NIDS01 module control electric drives?
-
Yes, it provides both manual and automatic control for electric drives.
Q6: What is the operating temperature range of the NIDS01?
-
The NIDS01 operates within a temperature range of 0° to 70°C (32° to 158°F).
Q7: How should the NIDS01 be maintained?
-
The module requires minimal maintenance, including periodic inspection and cleaning of connections every 6 months.
Q8: What certifications does the NIDS01 have?
-
The NIDS01 is CSA certified for use as process control equipment in ordinary (non-hazardous) locations.
