Product Overview:

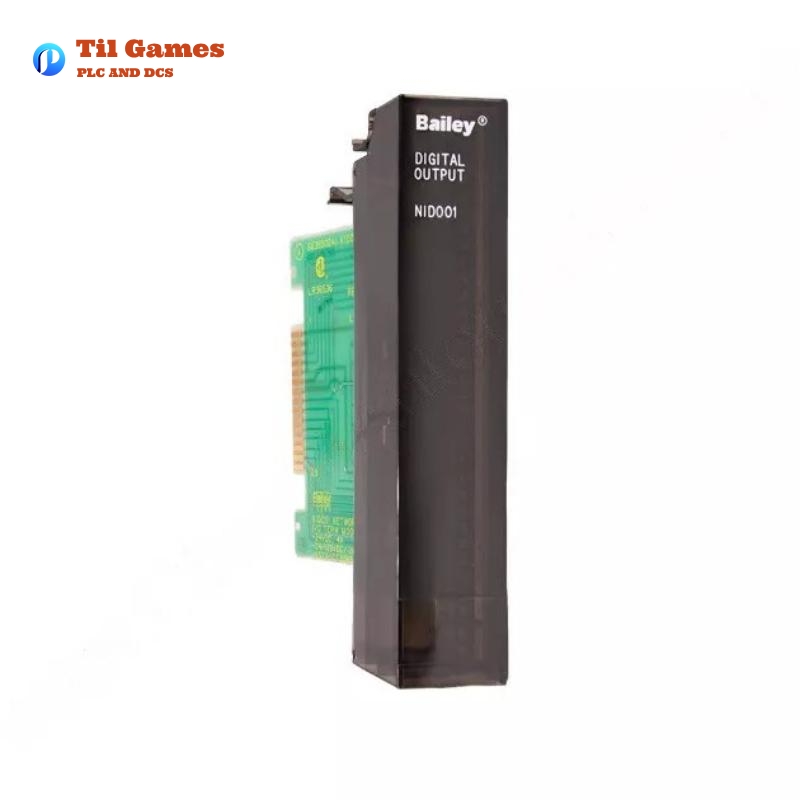

The NIDO01 Infi 90 Digital Output Termination Module is an essential component in the INFI 90® Process Automation system. It interfaces the plant’s digital I/O signals with the IMDSM05 Digital I/O Slave Module and IMLMM02 Logic Master Module. The NIDO01 module is designed to ensure robust and reliable signal termination, serving as an intermediary between field devices and the system’s control and communication modules.
Product Specifications:
| Specification | Value |
|---|---|
| Module Type | Digital Output Termination Module |
| Input/Output Signals | 16 digital outputs (24 VDC) |
| Surge Protection | Meets IEEE-472-1974 Surge Withstand Capability Test |
| Mounting | Occupies one slot in a standard INFI 90 termination unit |
| Ambient Temperature | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 0% to 95% at 55°C (131°F), 0% to 45% at 70°C (158°F) |
| Dimensions | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.7 kg |
| Power Supply | 24 VDC (field-powered) |
| Certification | CSA certified for non-hazardous locations |
Product Features:
-
Field Device Interface: Seamlessly connects digital outputs from field devices to the system’s I/O modules.
-
Surge Protection: Built-in surge protection, adhering to IEEE-472 standards, making it resilient to electrical disturbances.
-
Simple Mounting: Designed for easy installation in standard termination units.
-
Environmental Resilience: Operates in a wide range of temperatures and humidity levels, making it suitable for various industrial environments.
-
Modular Design: Integrates with INFI 90® Process Automation modules like IMDSM05 and IMLMM02.
Product Advantages:
-
Reliability: Proven technology that ensures stable and secure digital I/O signal termination, reducing the risk of signal loss or interference.
-
Easy Integration: Easily integrates with the IMDSM05 Digital I/O Slave Module and IMLMM02 Logic Master Module, improving overall system functionality.
-
Wide Compatibility: Compatible with a broad range of field devices, ensuring flexible usage across different control systems.
-
Cost-Effective: Offers an economical solution for integrating digital output signals, minimizing system complexity and enhancing efficiency.
Applications:
-
Process Control: Used in systems that require the reliable transmission of digital signals between field equipment and control modules.
-
Industrial Automation: Ideal for automated systems in industries such as manufacturing, power generation, and chemical processing, where secure data transfer is critical.
-
System Expansion: Perfect for adding digital output termination capabilities to an existing INFI 90 system.
Recommended Models from the Same Series:
| Model | Description | Key Specifications |
|---|---|---|
| NKTU02 | PVC Termination Cable | Length: 61 m (200 ft), For use with NIDO01 |
| NKTU12 | Non-PVC Termination Cable | Length: 61 m (200 ft), For use with NIDO01 |
| NKTM01 | Ribbon Communication Cable | Length: 30 m (100 ft), For use with NIDO01 |
| IMLMM02 | Logic Master Module | Interfaces with NIDO01 and IMDSM05 |
| IMDSM05 | Digital I/O Slave Module | Digital inputs/outputs for various signals |
| NTMU02 | Front Mounting Termination Unit | Mounting unit for digital termination modules |
Popular Bailey Models:
| Model | Description | Key Specifications |
|---|---|---|
| IMMFP01 | Multi-Function Processor | 24 VDC, High processing capability |
| SPMFM01 | Multi-Function I/O Module | Multiple input/output channels |
| IMMFD01 | Field Digital I/O Module | Designed for rugged environments |
| IMTPP02 | Temperature Processing Module | Provides precise temperature control |
| SPNPM22 | Network Processing Module | High-speed communication for large systems |
| IMTCC01 | Control Communication Module | Interfaces control systems with network protocols |
FAQ
FAQ Section:
Q1: What is the NIDO01 Digital Output Termination Module used for?
A1: The NIDO01 module is used to terminate digital output signals, interfacing with other modules like the IMDSM05 and IMLMM02 to manage plant equipment signals.
Q2: Can the NIDO01 module work with any field device?
A2: Yes, it is compatible with a wide range of field devices, making it highly flexible in various automation systems.
Q3: What is the temperature range for operating the NIDO01 module?
A3: The NIDO01 module operates between 0°C and 70°C (32°F to 158°F).
Q4: Is surge protection built into the NIDO01 module?
A4: Yes, the NIDO01 module includes built-in surge protection, meeting IEEE-472-1974 standards.
Q5: How do I install the NIDO01 module?
A5: The NIDO01 module is installed into a standard termination unit and requires jumper configuration and fuse installation as outlined in the manual.
Q6: What cables are compatible with the NIDO01 module?
A6: The NKTU02 (PVC), NKTU12 (non-PVC), and NKTM01 (ribbon) cables are compatible with the NIDO01 module.
Q7: What are the maintenance requirements for the NIDO01 module?
A7: The module requires limited maintenance, including cleaning and tightening connections every six months.
Q8: Can I replace the NIDO01 module if it fails?
A8: Yes, the module can be easily replaced by turning off power, removing the faulty module.
