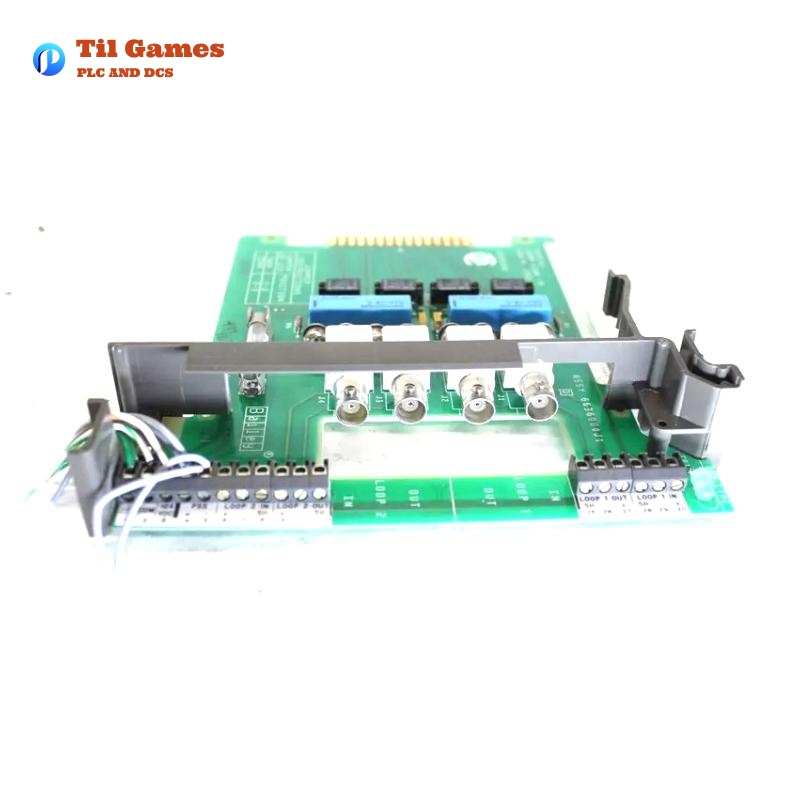

ABB Bailey NICL01 Infi 90 Communication Link Termination Module Overview
The ABB Bailey NICL01 is a Communication Link Termination Module designed to interface with the INFI-NET® communication network and the Loop Interface Module (INLIM03) or Network Interface Slave Module (INNIS01). It is used for the termination of twinaxial or coaxial communication cables, ensuring smooth connectivity within a network or plant loop.
Product Features:
-
Provides termination for INFI-NET or Plant Loop communication networks.
-
Supports both twinaxial and coaxial cables, with jumper settings to match the cable type.
-
The module is fused to protect internal circuitry.
-
Designed for use in Bailey cabinets within the INFI 90® system.
Product Advantages:
-
Versatile Cable Compatibility: Supports twinaxial and coaxial cables.
-
Easy Installation: Mounts in a standard termination mounting unit (NTMU01/02).
-
Reliable Operation: Low power consumption and protected with a fuse for added durability.
-
Scalable Integration: Capable of supporting complex networks with multiple modules.
Product Applications:
-
Communication Termination: Ideal for linking network interface slave modules (INNIS01) and loop interface modules (INLIM03) in automation and control systems.
-
Industrial Automation: Used in plant automation systems, facilitating high-speed data transfer within networked systems.
Key Specifications:
| Parameter | Value |
|---|---|
| Power Requirements | 24 VDC, 19.7 mA max |
| Mounting | Fits in NTMU01/02 Termination Mounting Unit |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 5% to 90% up to 55°C, 5% to 40% up to 70°C (non-condensing) |
| Cooling Requirements | No cooling needed |
| Dimensions | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.7 kg |
| Certifications | CSA certified, ordinary location use |
Recommended Related Models:
| Model | Description | Key Features |
|---|---|---|
| INNIS01 | Network Interface Slave Module | Interfaces between INFI-NET and remote modules. |
| INLIM03 | Loop Interface Module | Handles connections for Plant Loop networks. |
| NKLS04 | Twinaxial Cable for ICL to LIM | Connects ICL to LIM with a 1000 m max length. |
| NKLS02 | PVC Cable for ICL to INNIS01 | Connects ICL to INNIS01, max 25 m length. |
| NKPL03 | PVC Twinaxial Cable | 1000 m max length for INFI-NET and Plant Loop. |
| NKCL01 | Coaxial Cable for INFI-NET and Plant Loop | Suitable for individual drops, 2000 m length. |
FAQ
Frequently Asked Questions (FAQ):
-
Q1: How do I install the NICL01 module?
-
A1: Ensure the fuse and jumpers are installed. Mount the module in the NTMU01/02 unit, connect cables, and power.
-
-
Q2: What cable types are supported by the NICL01?
-
A2: The NICL01 supports both twinaxial and coaxial cables. Jumper settings must match the cable type.
-
-
Q3: Can I use the NICL01 for both INFI-NET and Plant Loop connections?
-
A3: Yes, the NICL01 is designed to support both INFI-NET and Plant Loop connections with the appropriate cable and jumper settings.
-
-
Q4: What is the fuse rating for the NICL01?
-
A4: The fuse is 1.0 amp/250 volts.
-
-
Q5: How do I replace the fuse on the NICL01?
-
A5: Turn off power, remove the front cover, replace the fuse with a 1.0A/250V fuse, and reassemble.
-
-
Q6: Can the NICL01 be used in high-temperature environments?
-
A6: The module operates in temperatures from 0°C to 70°C, making it suitable for most industrial environments.
-
-
Q7: How do I configure the jumpers for different cable types?
-
A7: Refer to the jumper settings provided in the manual to match the impedance of the cable being used.
-
-
Q8: What happens if I remove the NICL01 from the loop?
-
A8: Removing the NICL01 will interrupt communication with the network or plant loop.
-
