ABB Bailey NIAI05 Infi 90 Analog Input Termination Module

ABB Bailey NIAI05 Infi 90 Analog Input Termination Module

Manufacturer:Bailey

Product Number:NIAI05

Product Type:Analog Input Termination Module

Origin:Sweden (SE)

Dimensions:78.74 x 215.9 x 233.68 mm

Weight:0.5 kg

Views:20

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/NIAI05.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/NIAI05-2.jpg

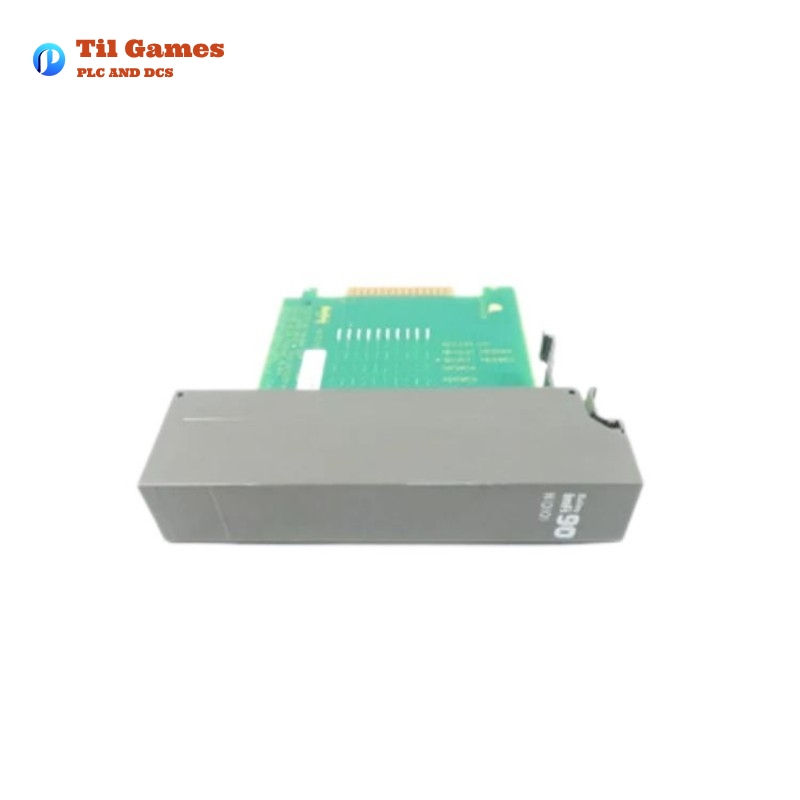

https://www.tilgames.com/wp-content/uploads/2025/03/NIAI05-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/NIAI05-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description

The ABB Bailey NIAI05 is an Analog Input Termination Module designed for use in the Infi 90 Distributed Control System (DCS). It serves as a critical interface between field analog sensors and the control system, facilitating reliable and accurate data acquisition. The module provides termination for analog input signals from a variety of process control sensors, including pressure, temperature, and flow transmitters.

With robust construction and adherence to industrial standards, the NIAI05 module is well-suited for demanding industrial environments. It is designed to connect with IMASI02, IMASM01, and IMFBS01 slave modules, ensuring seamless communication within the ABB Bailey Infi 90 system.

Product Specifications

The following table provides a detailed overview of the technical specifications of the ABB Bailey NIAI05:

Parameter Specification
Product Name ABB Bailey NIAI05 Analog Input Termination Module
Dimensions 78.74 x 215.9 x 233.68 mm
Weight 0.5 kg
Power Supply +24V DC
Input Channels 15 or 16 Analog Input Channels
Input Signal Types – 4 to 20 mA (system or externally powered)
– -10 VDC to +10 VDC
– 0 VDC to 10 VDC
– 1 VDC to 5 VDC
– 0 VDC to 5 VDC
– 0 VDC to 1 VDC (IMASI02/IMFBS01 only)
Mounting NFTP01 Field Termination Panel
Operating Temperature 0°C to 70°C (32°F to 158°F)
Humidity 0% to 95% (non-condensing up to 55°C)
Atmospheric Pressure Sea level to 3 km (1.86 miles)
Communication Interface Connected to Infi 90 system via standard factory-wired cable
Compliance CSA certified for ordinary (non-hazardous) locations

Key Features

  • Reliable Analog Signal Termination: Supports up to 16 analog inputs, providing robust signal processing for industrial applications.
  • Compatibility with Infi 90 System: Fully integrates with ABB Bailey IMASI02, IMASM01, and IMFBS01 slave modules.
  • Configurable Input Types: Supports various analog input signal types, including voltage and current-based inputs.
  • Factory-Wired Cable Connection: Simplifies installation and ensures secure, interference-free communication.
  • Compact and Durable Design: Optimized for installation in industrial control cabinets with a lightweight and space-efficient form factor.
  • User-Configurable Dipshunts: Allows selection of voltage or current input and system or externally powered operation.
  • Standard Field Termination Panel Mounting: Designed to be mounted on the NFTP01 termination panel for ease of integration.

Product Advantages

  • High Accuracy and Stability: Ensures reliable data acquisition with minimal signal interference.
  • Ease of Installation: Pre-wired factory cables and modular design simplify field installation.
  • Flexible Input Signal Handling: Supports both single-ended and differential input configurations.
  • Enhanced Safety: Equipped with proper electrical isolation to protect against transient voltages.
  • Long-Term Reliability: Designed for continuous operation in demanding industrial environments.
  • Seamless System Integration: Works efficiently with other ABB Bailey process automation modules.

Applications

The ABB Bailey NIAI05 module is widely used in industrial process control systems, including:

  • Power Plants: Used for monitoring pressure, temperature, and flow signals in power generation processes.
  • Oil & Gas Industry: Facilitates precise measurement of pipeline flow rates and tank levels.
  • Chemical Processing Plants: Enables accurate control of chemical batch processing by measuring various parameters.
  • Pharmaceutical Industry: Ensures compliance with stringent process control regulations.
  • Water & Wastewater Treatment: Helps maintain optimal pH levels and flow control.
  • Manufacturing Automation: Supports PLC-based process monitoring in production lines.

Related Models (Same Series or Function)

Model Description
IMASI02 Analog Input Slave Module
IMASM01 Analog Slave Module
IMFBS01 Field Bus Slave Module
IMAMM03 Analog Master Module
IMMFP02 Multi-Function Processor
NMFC04 Multi-Function Controller

Popular ABB Bailey Models

Model Description
IMMFP03 Multi-Function Processor for Infi 90
INNIS21 Network Interface Slave Module
NTCL01 Communication Interface Module
IMCIS02 Control Processor Module
IMDSI22 Digital Input Module
IMASI13 Analog Input Module
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the ABB Bailey NIAI05?

A: The NIAI05 is an Analog Input Termination Module designed to connect field analog input signals to the ABB Bailey Infi 90 Distributed Control System.

Q2: What types of signals does the NIAI05 support?

A: It supports 4-20mA current signals (both system and externally powered) and various voltage signals including ±10V, 0-10V, 1-5V, and 0-5V.

Q3: How many input channels does the NIAI05 module provide?

A: The module supports 15 or 16 channels, depending on the connected slave module.

Q4: What modules are compatible with the NIAI05?

A: The NIAI05 is compatible with IMASI02, IMASM01, and IMFBS01 slave modules.

Q5: What are the installation requirements for the NIAI05?

A: The module is installed in an NFTP01 Field Termination Panel and connects via a factory-wired standard cable.

Q6: What is the operating temperature range for this module?

A: The operating temperature range is 0°C to 70°C (32°F to 158°F).
