Product Introduction

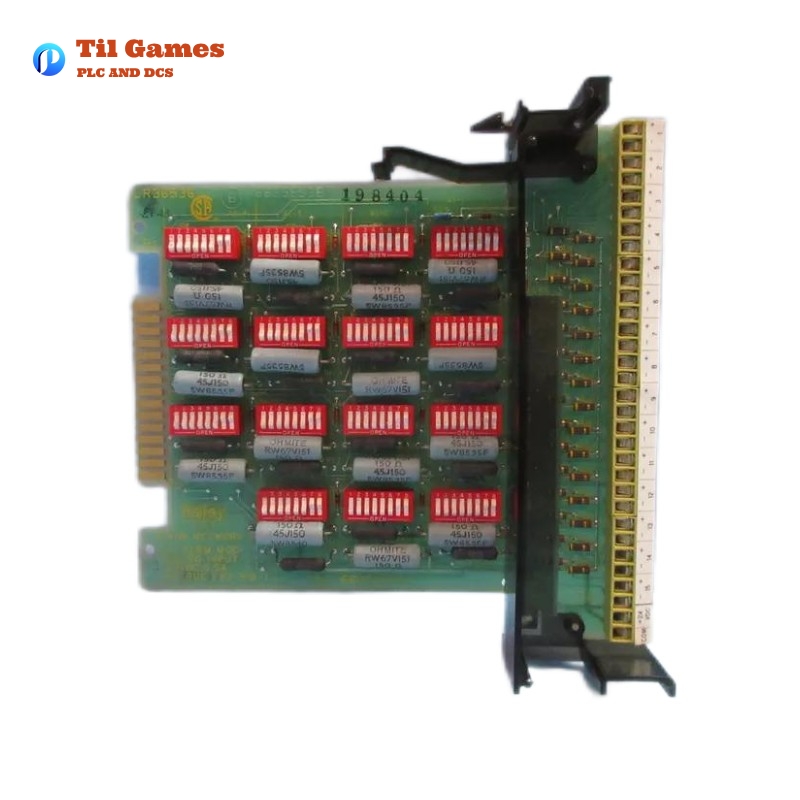

The ABB Bailey NIAI01 6635994A1 Network 90 I/O Term Analog Input Module is a high-performance analog input module designed for use in industrial automation and control systems. It is part of the Network 90 series, which is known for its reliability, flexibility, and ease of integration. This module is specifically designed to handle analog input signals, making it ideal for applications that require precise measurement and control of analog variables such as temperature, pressure, flow, and level.
The NIAI01 module is engineered to meet the demanding requirements of modern industrial environments. It offers high accuracy, fast response times, and robust construction, ensuring reliable operation even in harsh conditions. The module is compatible with a wide range of sensors and transmitters, making it a versatile solution for various industrial applications.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | NIAI01 6635994A1 |
| Series | Network 90 |
| Type | Analog Input Module |
| Input Channels | 8 |
| Input Signal Range | 4-20 mA, 0-10 V, ±10 V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Power Supply | 24 VDC ±10% |
| Power Consumption | 5 W |
| Dimensions (W x H x D) | 120 mm x 150 mm x 50 mm |
| Weight | 0.5 kg |
| Communication Interface | Network 90 Bus |
| Mounting | DIN Rail |
| Certifications | CE, UL, CSA |
Product Features
- High Accuracy: The NIAI01 module provides high-precision analog input signal processing with a resolution of 16-bit and an accuracy of ±0.1% of full scale, ensuring reliable and accurate data acquisition.
- Versatile Input Ranges: The module supports multiple input signal ranges, including 4-20 mA, 0-10 V, and ±10 V, making it compatible with a wide variety of sensors and transmitters.
- Robust Construction: Designed for industrial environments, the module features a rugged construction that can withstand harsh conditions, including wide temperature ranges and high humidity levels.
- Easy Integration: The NIAI01 module is part of the Network 90 series, which is known for its ease of integration with existing control systems. It supports the Network 90 Bus communication interface, ensuring seamless connectivity.
- Compact Design: With dimensions of 120 mm x 150 mm x 50 mm and a weight of only 0.5 kg, the module is compact and lightweight, making it easy to install in space-constrained environments.
- Low Power Consumption: The module consumes only 5 W of power, making it an energy-efficient solution for industrial applications.
Product Advantages
- Reliability: The NIAI01 module is designed for long-term reliability, with a robust construction that ensures stable operation even in demanding industrial environments.
- Flexibility: The module’s support for multiple input signal ranges and compatibility with various sensors and transmitters make it a flexible solution for a wide range of applications.
- Ease of Use: The module is easy to install and configure, with a user-friendly interface that simplifies setup and maintenance.
- Cost-Effective: The NIAI01 module offers a high level of performance at a competitive price, making it a cost-effective solution for industrial automation and control systems.
- Compatibility: The module is fully compatible with the Network 90 series, ensuring seamless integration with existing control systems and reducing the need for additional hardware.
- Certifications: The module is certified to meet CE, UL, and CSA standards, ensuring compliance with international safety and quality standards.
Product Applications
The ABB Bailey NIAI01 6635994A1 Network 90 I/O Term Analog Input Module is suitable for a wide range of industrial applications, including:
- Process Control: The module is ideal for use in process control systems, where it can be used to monitor and control variables such as temperature, pressure, flow, and level.
- Manufacturing: In manufacturing environments, the module can be used to monitor and control various processes, ensuring consistent product quality and efficient operation.
- Energy Management: The module can be used in energy management systems to monitor and control energy consumption, helping to optimize energy use and reduce costs.
- Water and Wastewater Treatment: The module is suitable for use in water and wastewater treatment plants, where it can be used to monitor and control various processes, ensuring efficient and reliable operation.
- HVAC Systems: The module can be used in HVAC systems to monitor and control temperature, humidity, and other variables, ensuring comfortable and energy-efficient operation.
- Oil and Gas: In the oil and gas industry, the module can be used to monitor and control various processes, ensuring safe and efficient operation.
Latest News Headline
“ABB Bailey NIAI01 6635994A1 Network 90 I/O Term Analog Input Module: The Ultimate Solution for Precision Analog Signal Processing in Industrial Automation”
Recommended Related Models
| Model Number | Description | Input Channels | Input Signal Range | Resolution | Dimensions (W x H x D) | Weight |
|---|---|---|---|---|---|---|
| NIAI02 6635994A2 | Network 90 Analog Input Module | 16 | 4-20 mA, 0-10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.6 kg |
| NIAI03 6635994A3 | Network 90 Analog Input Module | 32 | 4-20 mA, 0-10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.7 kg |
| NIAI04 6635994A4 | Network 90 Analog Input Module | 8 | ±10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.5 kg |
| NIAI05 6635994A5 | Network 90 Analog Input Module | 16 | ±10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.6 kg |
| NIAI06 6635994A6 | Network 90 Analog Input Module | 32 | ±10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.7 kg |
| NIAI07 6635994A7 | Network 90 Analog Input Module | 8 | 4-20 mA, 0-10 V, ±10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.5 kg |
Recommended Popular Bailey Models
| Model Number | Description | Input Channels | Input Signal Range | Resolution | Dimensions (W x H x D) | Weight |
|---|---|---|---|---|---|---|
| NIDO01 6635994B1 | Network 90 Digital Output Module | 16 | 24 VDC | N/A | 120 mm x 150 mm x 50 mm | 0.5 kg |
| NIDI01 6635994B2 | Network 90 Digital Input Module | 16 | 24 VDC | N/A | 120 mm x 150 mm x 50 mm | 0.5 kg |
| NIAO01 6635994B3 | Network 90 Analog Output Module | 8 | 4-20 mA, 0-10 V | 16-bit | 120 mm x 150 mm x 50 mm | 0.5 kg |
| NIRTD01 6635994B4 | Network 90 RTD Input Module | 8 | RTD | 16-bit | 120 mm x 150 mm x 50 mm | 0.5 kg |
| NITH01 6635994B5 | Network 90 Thermocouple Input Module | 8 | Thermocouple | 16-bit | 120 mm x 150 mm x 50 mm | 0.5 kg |
| NICOM01 6635994B6 | Network 90 Communication Module | N/A | N/A | N/A | 120 mm x 150 mm x 50 mm | 0.5 kg |
FAQ
FAQ
Q1: What is the maximum number of input channels supported by the NIAI01 module?
A1: The NIAI01 module supports up to 8 input channels.
Q2: What types of input signals are supported by the NIAI01 module?
A2: The NIAI01 module supports 4-20 mA, 0-10 V, and ±10 V input signals.
Q3: What is the resolution of the NIAI01 module?
A3: The NIAI01 module has a resolution of 16-bit.
Q4: What is the operating temperature range of the NIAI01 module?
A4: The NIAI01 module can operate in temperatures ranging from -20°C to +70°C.
Q5: Is the NIAI01 module compatible with other Network 90 series modules?
A5: Yes, the NIAI01 module is fully compatible with other Network 90 series modules.
Q6: What certifications does the NIAI01 module have?
A6: The NIAI01 module is certified to meet CE, UL, and CSA standards.
