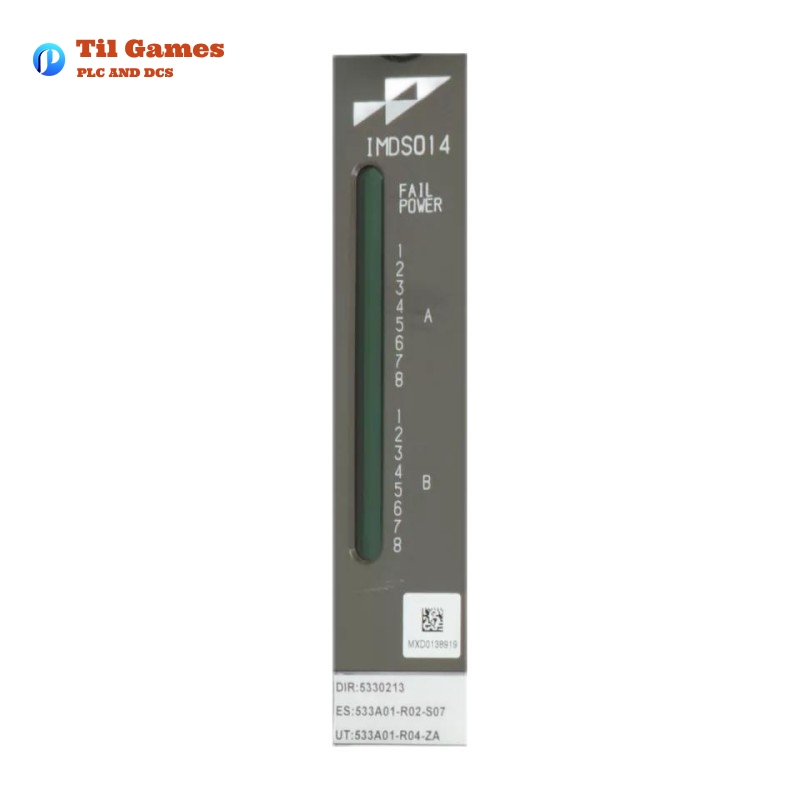

ABB Bailey IMDSO14 Infi 90 Digital Output Module

ABB Bailey IMDSO14 Infi 90 Digital Output Module

Manufacturer:Bailey

Product Number:IMDSO14

Product Type:Digital Output Module

Origin:Sweden (SE)

Dimensions:120 x 80 x 40 mm

Weight:0.5 kg

Views:21

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/IMDSO14-4-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IMDSO14-5.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IMDSO14-6.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/IMDSO14.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction:

The ABB Bailey Infi 90 IMDSO14 Digital Output Module is a high-performance, reliable module designed for the Infi 90 control system. This module features 16 channels of open-collector digital outputs, allowing it to interface with a variety of field devices such as relays, solenoids, and other actuators. It is a slave module within the Infi 90 architecture and is widely used in industrial automation systems for precise control and monitoring of digital signals.

Key Specifications:

Feature Specification
Module Type Digital Output Slave
Number of Channels 16 Channels
Output Type Open-Collector
Output Voltage Range 24 V DC (Nominal)
Current Rating 0.5 A per channel (max)
Power Supply 24 V DC (Nominal)
Communication Protocol Modbus RTU, Ethernet, or proprietary communication
Dimensions (L x W x H) 120 x 80 x 40 mm
Weight 0.5 kg
Operating Temperature Range -20°C to +60°C
Humidity 5% to 95% (non-condensing)
Mounting Type DIN Rail

Product Applications:

  • Industrial Automation: Used to control actuators such as relays, lights, or solenoids in automated systems.
  • Process Control Systems: Often deployed in critical process control environments, providing reliable output control for processes requiring high availability.
  • Manufacturing: In manufacturing plants, it’s employed for controlling machines or other factory equipment.
  • Energy Distribution: Common in energy management systems for controlling switches or other digital equipment in substations.

Product Advantages:

  • High Channel Density: With 16 channels, it allows efficient space utilization in control systems.
  • Open-Collector Outputs: This provides flexibility in interfacing with various field devices, such as relays or solenoids.
  • Robust Design: The module is built to operate under harsh industrial environments, offering high reliability and long service life.
  • Modular Architecture: As part of the Infi 90 series, it integrates seamlessly with other modules, enhancing scalability and system flexibility.
  • Flexible Communication Options: Supports multiple communication protocols, making it versatile for various network configurations.
  • Compact Size: Its small footprint (120 x 80 x 40 mm) and low weight (0.5 kg) make it easy to install in space-constrained environments.
