Product Introduction

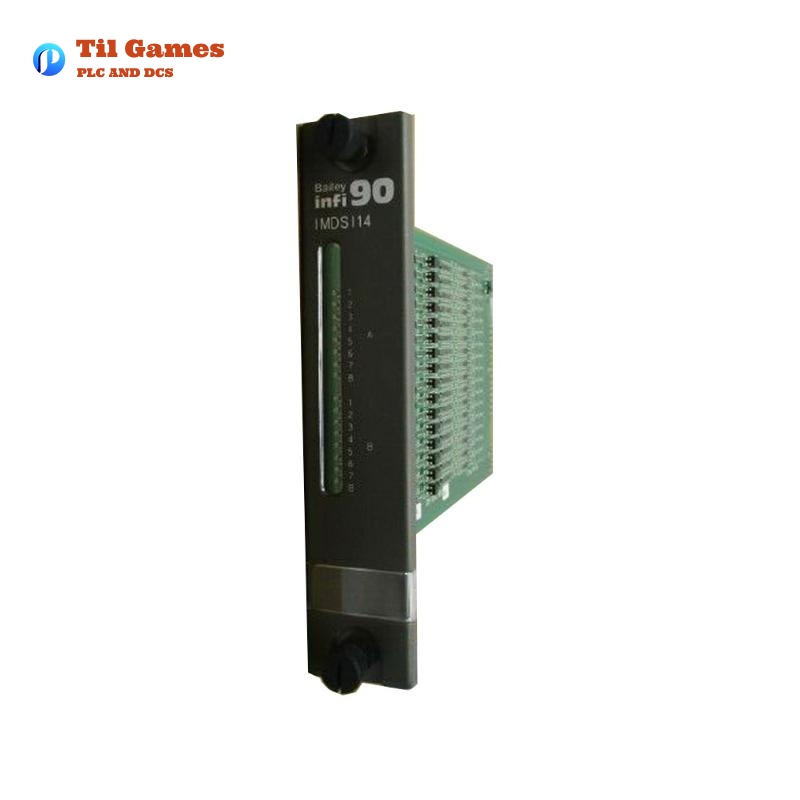

The ABB Bailey IMDSI14 is a Digital Slave Input Module designed for the Infi 90 Distributed Control System (DCS). It provides reliable and accurate digital input signal processing for industrial automation applications. With 16 input channels, the IMDSI14 module ensures precise data acquisition and seamless communication with other system components. This module is widely used in industries such as power generation, oil and gas, chemical processing, and manufacturing, offering high reliability and long-term stability in harsh industrial environments.
Technical Specifications
Below is a detailed specification table for the IMDSI14 module:
Specification | Details |
---|---|
Product Number | IMDSI14 |
Product Type | Digital Slave Input Module |
System Compatibility | ABB Bailey Infi 90 DCS |
Number of Channels | 16 |
Input Type | Digital Input |
Input Voltage | 24V DC / 120V AC |
Input Signal Range | 0 – 24V DC (logic low), 24 – 120V DC (logic high) |
Response Time | < 5 ms |
Communication | Infi 90 Network |
Diagnostics | Built-in self-diagnostics |
Redundancy | Supports redundant configurations |
Operating Temperature | -20°C to +70°C |
Humidity | 5% to 95% non-condensing |
Power Consumption | < 5W |
Dimensions | 120 x 80 x 40 mm |
Weight | 0.5 kg |
Mounting | Rack Mountable |
Certifications | CE, UL, CSA, ATEX |
Product Applications
The ABB Bailey IMDSI14 Digital Input Module is designed for various industrial automation applications, including:
- Power Plants – Used in power generation facilities for monitoring switchgear, circuit breakers, and protection systems.
- Oil and Gas Industry – Enables monitoring of field sensors and equipment status in refineries and offshore platforms.
- Chemical Processing – Helps track critical safety signals in chemical plants.
- Manufacturing Automation – Provides reliable input signal acquisition in automated production lines.
- Water and Wastewater Treatment – Used for monitoring pump stations, water levels, and alarms.
- Metals and Mining – Monitors process control signals in heavy industrial environments.
- Pharmaceutical Industry – Ensures compliance with digital input monitoring requirements in drug production.
Product Advantages
The IMDSI14 module offers multiple advantages that make it a preferred choice in industrial automation:
- High Reliability – Designed for continuous operation in harsh industrial environments with built-in self-diagnostics.
- Fast Response Time – Ensures accurate and timely data acquisition.
- Redundancy Support – Allows for increased system reliability through redundant configurations.
- Wide Compatibility – Seamlessly integrates with ABB Bailey Infi 90 systems and other ABB control platforms.
- Compact Design – Optimized for rack-mount installation, saving space in control cabinets.
- Low Power Consumption – Energy-efficient operation reduces overall system power requirements.
- Robust Construction – Built to withstand temperature variations, humidity, and vibrations.
- Easy Maintenance – Features modular design for quick replacement and minimal downtime.
Latest Product News Headlines
- “ABB Enhances Infi 90 System with High-Performance Digital Input Modules”
- “New Firmware Update for ABB Bailey IMDSI14 Improves Diagnostics and Communication”
- “ABB Introduces Next-Gen Digital Input Modules for Industrial Automation”
- “ABB Expands Infi 90 DCS Product Line with Advanced Digital Signal Processing”
- “IMDSI14 Module Gains Recognition for Reliability in Critical Infrastructure”
Related ABB Bailey Models
Here are 10 related or similar models within the ABB Bailey Infi 90 series:
Model Number | Description |
---|---|
IMDSI12 | 8-Channel Digital Slave Input Module |
IMDSI13 | 16-Channel Digital Input Module with Enhanced Filtering |
IMDSI15 | High-Speed Digital Input Module |
IMDSI16 | Extended Temperature Digital Input Module |
IMDSM01 | Multi-function Digital Slave Module |
IMDSO14 | 16-Channel Digital Output Module |
IMDSO15 | High-Speed Digital Output Module |
IMDSM02 | Dual Redundant Digital Slave Module |
IMDSM03 | Compact Digital Input/Output Module |
IMDSS01 | Specialty Digital Input Module for Safety Systems |
Top 10 Popular ABB Bailey Models
Below are 10 of the most popular ABB Bailey modules along with their key specifications:
Model Number | Type | Number of Channels | Dimensions (mm) | Weight (kg) |
---|---|---|---|---|
IMDSI14 | Digital Input Module | 16 | 120 x 80 x 40 | 0.5 |
IMFEC12 | Field Controller Module | N/A | 160 x 100 x 45 | 0.7 |
IMASI23 | Analog Input Module | 16 | 140 x 90 x 40 | 0.6 |
IMASO11 | Analog Output Module | 8 | 140 x 90 x 40 | 0.6 |
IMMFP03 | Multi-Function Processor | N/A | 180 x 110 x 50 | 0.8 |
INICT01 | Network Interface Module | N/A | 130 x 85 x 40 | 0.5 |
INNIS21 | Network Interface Module | N/A | 130 x 85 x 40 | 0.5 |
IEPAS02 | Power Supply Module | N/A | 200 x 120 x 60 | 1.0 |
IMSED01 | Sequence of Events Recorder | 32 | 150 x 95 x 40 | 0.6 |
IIMCL01 | Communication Link Module | N/A | 160 x 100 x 50 | 0.7 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB Bailey IMDSI14 module?
A1: The IMDSI14 is a digital input module designed to acquire and process signals from field devices in an ABB Bailey Infi 90 Distributed Control System (DCS).
Q2: How many input channels does the IMDSI14 module have?
A2: The module has 16 digital input channels, allowing it to monitor multiple field signals simultaneously.
Q3: What is the input voltage range supported by the IMDSI14?
A3: The module supports 24V DC and 120V AC digital input signals.
Q4: Does the IMDSI14 module support redundant configurations?
A4: Yes, it supports redundant setups to enhance system reliability and minimize downtime in critical applications.
Q5: What is the typical response time of the IMDSI14?
A5: The response time of the IMDSI14 is less than 5 milliseconds, ensuring fast data acquisition.
Q6: Can the IMDSI14 operate in extreme environmental conditions?
A6: Yes, the module operates within a temperature range of -20°C to +70°C and a humidity range of 5% to 95% (non-condensing), making it suitable for harsh industrial environments.
Q7: Does the IMDSI14 module have built-in diagnostics?
A7: Yes, it features self-diagnostic capabilities to monitor its operational status and detect potential faults.
Q8: What communication protocol does the IMDSI14 use?
A8: The module communicates via the Infi 90 network, ensuring seamless integration with ABB Bailey DCS.
Q9: What is the physical size and weight of the IMDSI14 module?
A9: The dimensions of the module are 120 x 80 x 40 mm, and it weighs 0.5 kg.
Q10: How does the IMDSI14 enhance system reliability?
A10: The module enhances reliability through redundancy support, fast response time, built-in diagnostics, and robust design, ensuring stable operation in industrial automation systems.
