Technical Specifications
| Parameter | Details |
|---|---|

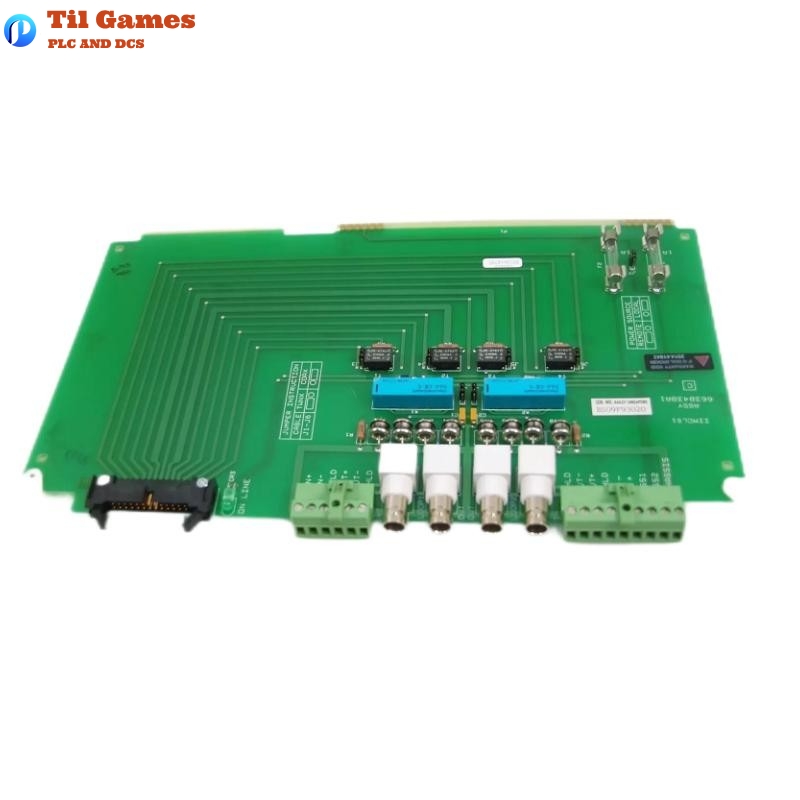

| Product Name | IIMCL01 Multibus Communication Link Module |
| Part Number | 6638438A1 |
| System Compatibility | INFI 90 Process Control System |
| Communication Interface | Plant Loop or INFI-NET (via coaxial/twinaxial) |
| Connection Type | Redundant loop termination via front edge connectors |
| Loop Types Supported | Coaxial, Twinaxial |
| Power Supply | Draws power from Multibus backplane |
| Loop Interface | Connects to IIMLM01 (Loop Module) via ribbon cable |
| Front Panel Switch | LOCAL/REMOTE power source selector |
| Terminating Jumpers | J1 through J6 for loop termination configuration |
| Installation Location | Multibus card cage, slot 1 |
| Board Width | Standard Multibus width |
| Operating Temperature | 10°C to 40°C (50°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 20% to 80% RH (non-condensing, recommended ≥40%) |
| Dimensions (W x H) | 160 mm x 130 mm |
| Weight | 0.8 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the IIMCL01 module in the INFI 90 system?
A1: The IIMCL01 module serves as the communication loop termination point within the Multibus system, enabling connection to the Plant Loop or INFI-NET network for process control communication.
Q2: Can the IIMCL01 support redundant communication loops?
A2: Yes, it supports redundant communication through dual coaxial or twinaxial connections, ensuring high availability and fault tolerance.
Q3: Which modules does the IIMCL01 connect to within the Multibus card cage?
A3: It connects to the IIMLM01 Multibus Loop Module using a ribbon cable and functions together with the IIMCP01 or IIMCP02 Processor Module for data processing.
Q4: How is power supplied to the IIMCL01 module?
A4: The module draws power directly from the Multibus backplane and can be configured to use internal (LOCAL) or external (REMOTE) power via a front panel switch.
Q5: What is the purpose of the J1 to J6 jumpers on the IIMCL01?
A5: These jumpers are used to configure termination for the communication loop based on the type of cable (coaxial or twinaxial) and the network topology.
Q6: Is the IIMCL01 hot-swappable during system operation?
A6: No, power must be removed before installing or removing the module to avoid potential damage or communication disruption.
Q7: In which slot of the Multibus card cage should the IIMCL01 be installed?
A7: It should be installed in slot 1 of the Multibus card cage, as the first module in the loop communication interface chain.
Q8: Does the IIMCL01 require software configuration?
A8: The IIMCL01 is a hardware-level interface module and does not require software configuration. It operates based on its physical connections and jumper settings.
