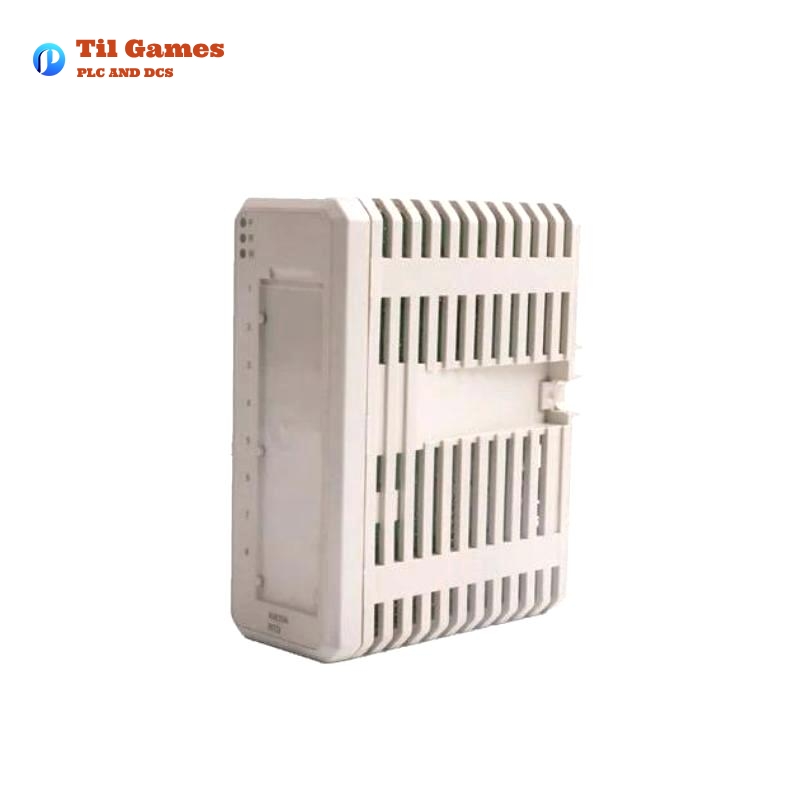

ABB AI845 3BSE023675R1 S800 I/O Systems Analog Input Module

ABB AI845 3BSE023675R1 S800 I/O Systems Analog Input Module

Manufacturer:ABB

Product Number:AI845 3BSE023675R1

Product Type:Analog Input Module

Origin:Sweden (SE)

Dimensions:45 x 102 x 119 mm

Weight:0.23 kg

Views:18

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/4-15.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/5-11.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/2-14.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3-11.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction:

The ABB AI845 3BSE023675R1 is an advanced analog input module designed for single or redundant applications in the S800 I/O system. This module offers a versatile solution with 8 channels, where each channel can either be configured for voltage or current inputs, depending on the MTU (Module Terminal Unit) used. It is equipped with advanced diagnostics, HART pass-through communication, and the ability to withstand overvoltage and undervoltage conditions.

Key Features:

  • 8 channels for input signals (0…20 mA, 4…20 mA, 0…5 V, 1…5 V d.c.)
  • Single-ended unipolar inputs
  • Voltage and current inputs with a high input resistance for voltage inputs (>10 MΩ) and current inputs (250 Ω)
  • Single or redundant operation mode
  • 12-bit resolution for accurate measurements
  • Current-limited transmitter supply per channel
  • HART pass-through communication for compatibility with external transmitters
  • Advanced on-board diagnostics to detect faults or errors
  • 1 group of 8 channels isolated from ground
  • Power supply for HART-compatible transmitters is supervised and current-limited

Applications:

The ABB AI845 module is ideal for applications where multiple analog sensors or transmitters are needed for precise measurements. It is commonly used in:

  • Process control industries where analog data such as temperature, pressure, flow, and level are critical.
  • Power plants, oil and gas, and chemical industries that require robust and reliable input solutions for automation systems.
  • SCADA (Supervisory Control and Data Acquisition) systems for monitoring and control of industrial processes.
  • Systems that require redundancy for improved reliability and uptime.

Advantages:

  • Versatile Inputs: Supports both voltage and current inputs, offering flexibility for different sensor types.
  • High Accuracy: 12-bit resolution ensures accurate and precise data acquisition.
  • Redundancy Option: Supports single and redundant operation modes, enhancing system reliability.
  • HART Communication: Pass-through HART communication enables easy integration with HART-compatible field devices.
  • Diagnostics: Built-in diagnostics for improved system health and early fault detection, ensuring the integrity of measurements.
  • Current-Limited Supply: Provides safe operation with current-limited power for HART transmitters.

Product Specifications

Parameter Value
Channels 8
Input Types 0…20 mA, 4…20 mA, 0…5 V, 1…5 V d.c.
Input Configuration Single-ended, unipolar
Input Resistance (Voltage) >10 MΩ
Input Resistance (Current) 250 Ω
Resolution 12-bit
Redundancy Single or redundant operation
Isolation 1 group of 8 channels isolated from ground
Transmitter Power Current-limited per channel
HART Communication Pass-through communication
Overvoltage/Undervoltage Tolerance At least 11 V d.c.
Dimensions 45 x 102 x 119 mm
Weight 0.23 kg

Latest News Headlines:

  1. “ABB Unveils AI845 Analog Input Module for Enhanced Process Monitoring”
  2. “AI845: Bridging Analog Input Solutions with Redundancy and HART Compatibility”
  3. “ABB Introduces AI845 to Enhance Redundancy in Industrial Automation Systems”
  4. “The AI845 Module – Advanced Diagnostics and HART Communication in One Package”
  5. “AI845: The Ultimate Analog Input Module for Critical Process Applications”
  6. “ABB Revolutionizes Analog Input Modules with AI845: Reliable, Accurate, and Safe”
  7. “AI845 Offers 12-Bit Resolution for Precise and Accurate Industrial Measurements”
  8. “ABB AI845: Ideal Solution for Process Automation in Harsh Industrial Environments”
  9. “AI845: ABB’s Newest Analog Input Module with Redundant Operation for Maximum Reliability”
  10. “ABB’s AI845 Analog Input Module Empowers Industrial Process Control with High-Precision Inputs”

Related Models from the Same Series:

Model Name Description Key Features
AI841 4-channel analog input module 4 input channels, 0…20 mA, 4…20 mA, 0…5 V, HART compatible
AI842 4-channel, isolated analog input module Isolation for each channel, 12-bit resolution, HART communication
AI846 16-channel analog input module Larger I/O capacity, supports various analog inputs
AI847 Multi-channel input module with 0…10 V inputs High-voltage inputs, rugged design for harsh environments
AI848 8-channel, high-precision analog input module Offers 24-bit resolution for very precise measurements
AI849 Analog input module with integrated diagnostics Onboard diagnostics, HART communication, redundancy options
AI860 8-channel, high-density input module Designed for compact installations with 8 isolated input channels
AI861 8-channel analog input with power supply supervision Advanced fault diagnostics and transmitter power supervision
AI862 Redundant, 16-channel analog input module Supports up to 16 channels, ideal for large-scale applications
AI863 Advanced analog input module for hazardous areas Explosion-proof, designed for use in harsh and hazardous environments

Popular ABB Models:

Model Name Description Key Features
AI835 8-channel analog input module For S800 I/O system, 0…20 mA, 4…20 mA, high resolution
AI843 8-channel analog input module High accuracy, 12-bit resolution, supports 0…5 V inputs
AI841 4-channel analog input module Compact and versatile, ideal for smaller applications
AI851 Advanced analog input module with extended range 24-bit resolution, extended input voltage range
AI860 8-channel high-density input module Designed for large applications, 8 channels, rugged construction
AI850 Universal analog input module Supports multiple input types (current, voltage)
AI862 Redundant 16-channel analog input module Dual redundant channels for failover safety
AI847 High-precision input module with diagnostic support Designed for critical applications requiring high accuracy
AI836 6-channel input module Used in control systems, 0…20 mA, 4…20 mA, and voltage inputs
AI852 Analog input module with HART communication Pass-through HART, allows integration with HART-compatible devices
FAQ

FAQs

  1. What are the input types supported by the AI845 module?

    • The AI845 supports 0…20 mA, 4…20 mA, 0…5 V, and 1…5 V d.c. inputs.
  2. How many channels does the AI845 module have?

    • The AI845 module has 8 channels.
  3. Can the AI845 module operate in redundant configurations?

    • Yes, the AI845 supports both single and redundant operation modes.
  4. What is the resolution of the AI845 module?

    • The AI845 module offers 12-bit resolution.
  5. What is the input resistance for voltage inputs?

    • The input resistance for voltage inputs is greater than 10 MΩ.
  6. What is the maximum overvoltage the AI845 can tolerate?

    • The AI845 can tolerate an overvoltage or undervoltage of at least 11 V d.c.
  7. Does the AI845 module provide HART communication?

    • Yes, the AI845 supports HART pass-through communication.
  8. What is the size and weight of the AI845 module?

    • The dimensions are 45 x 102 x 119 mm, and the weight is 0.23 kg.
  9. Can the AI845 supply power to external transmitters?

    • Yes, it can distribute a current-limited transmitter supply to each channel.
  10. What industries are best suited for the AI845 module?

    • The AI845 is ideal for industries like process control, oil and gas, power generation, and chemical processing.
