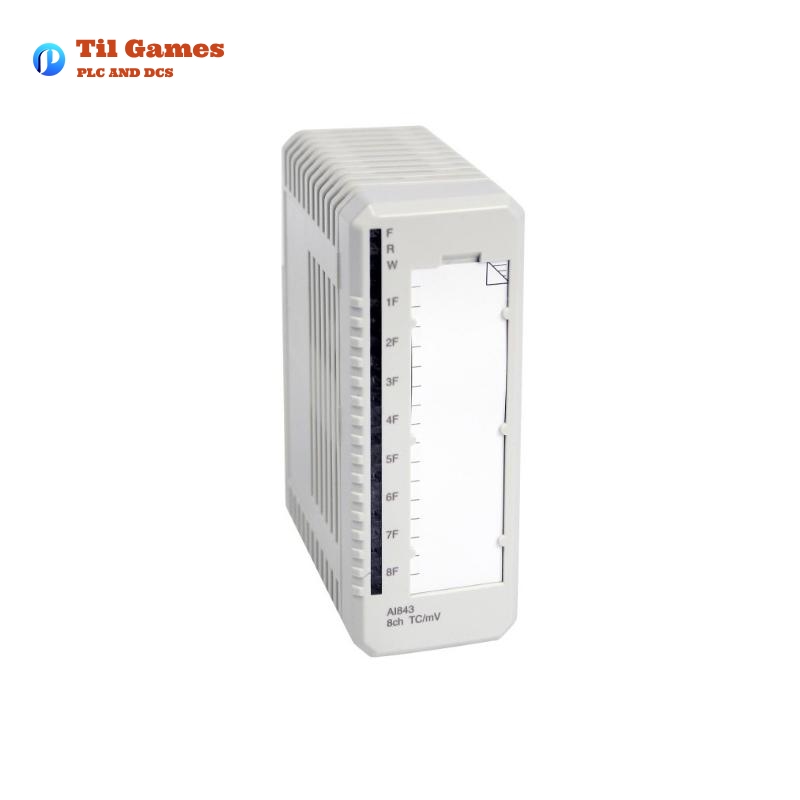

ABB AI843 3BSE028925R1 S800 I/O Systems Analog Input Module

ABB AI843 3BSE028925R1 S800 I/O Systems Analog Input Module

Manufacturer:ABB

Product Number:AI843 3BSE028925R1

Product Type:Analog Input Module

Origin:Sweden (SE)

Dimensions:45 x 102 x 119 mm

Weight:0.157 kg

Views:23

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/1-28.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/2-13.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AI843-3BSE028925R1-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AI843-3BSE028925R1-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description:

The ABB AI843 3BSE028925R1 is an Analog Input Module designed for high-performance thermocouple and mV measurements. It is a part of the ABB S800 I/O Systems and provides users with the ability to connect and measure temperatures via thermocouples or mV signals. The module is designed with 8 differential input channels, and it offers a versatile range of measurement options, including different thermocouple types and a configurable mV range.

The module also features a separate Pt100 channel, which acts as the Cold Junction (CJ) Channel for the temperature measurements on channels 1 to 8. This allows for accurate temperature compensation, ensuring reliable readings.

The AI843 module is built for flexibility, with single or redundant operation, allowing for high availability and system reliability. The module is designed to detect issues such as wire breaks or open circuits, ensuring continuous and accurate operation.

The measurement ranges are configurable per channel, providing compatibility with various thermocouple types including Types B, C, E, J, K, L, N, R, S, T, and U. This makes it ideal for applications across different industries where precise temperature measurement is crucial.

Key Features and Benefits:

  • 8 differential input channels for Thermocouple/mV measurements
  • Cold Junction (CJ) Channel (4-wire Pt100 RTD) for accurate ambient temperature measurement
  • Measurement range for mV and various thermocouple types: -30 mV to +75 mV linear, TC Types: B, C, E, J, K, L, N, R, S, T, U
  • 16-bit resolution for high accuracy (A/D converter)
  • Wire-break/open-circuit monitoring for reliable operation
  • Single or redundant operation for enhanced reliability and fault tolerance
  • Dimensions: 45 x 102 x 119 mm
  • Weight: 0.157 kg

Applications:

  • Industrial Automation: The AI843 is widely used in industrial control systems, especially in process automation where precise temperature measurements are required.
  • Energy and Power Generation: Useful in energy plants where monitoring of thermal processes and temperature is critical.
  • Temperature Control Systems: Ideal for applications that require the accurate measurement and control of temperatures in manufacturing or laboratory environments.
  • Chemical and Petrochemical Industries: Essential for monitoring the temperatures in chemical reactions, where thermocouples are commonly used.

Advantages:

  1. High Accuracy and Precision: With a 16-bit resolution, the AI843 ensures highly accurate temperature readings.
  2. Flexible Input Configuration: Supports a wide variety of thermocouple types, providing adaptability for various industrial needs.
  3. Reliability: The module’s wire-break and open-circuit monitoring ensures consistent operation, reducing downtime.
  4. Redundant Operation: The ability to operate in single or redundant configurations enhances system fault tolerance, making it suitable for critical applications.
  5. Cold Junction Compensation: Separate Pt100 channel for cold junction compensation ensures that the temperature readings are not affected by ambient temperature fluctuations.

Parameters of the ABB AI843 3BSE028925R1 S800 I/O Systems Analog Input Module

Parameter Value
Module Type Analog Input Module
Model Number 3BSE028925R1
I/O System S800 I/O Systems
Number of Channels 8 Differential Input Channels
Input Range -30 mV to +75 mV linear or thermocouple types (B, C, E, J, K, L, N, R, S, T, U)
Measurement Resolution 16-bit A/D Conversion
Cold Junction (CJ) Channel Separate Pt100 RTD Channel
Monitoring Features Wire-break and Open-circuit Monitoring
Operating Modes Single or Redundant Operation
Dimensions (H x W x D) 45 x 102 x 119 mm
Weight 0.157 kg
