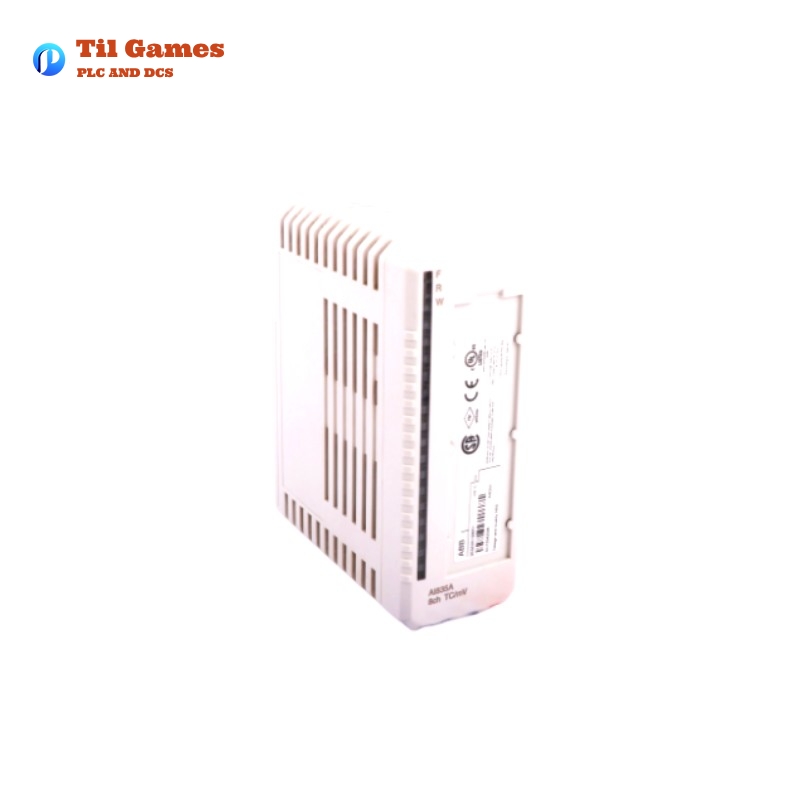

ABB AI835A 3BSE051306R1 S800 I/O Systems Analog Input Module

ABB AI835A 3BSE051306R1 S800 I/O Systems Analog Input Module

Manufacturer:ABB

Product Number:AI835A 3BSE051306R1

Product Type:Analog Input Module

Origin:Sweden (SE)

Dimensions:45 x 102 x 119 mm

Weight:0.22 kg

Views:20

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/4-13.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3-10.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/6.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/2-12.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB AI835A 3BSE051306R1 is an advanced Analog Input Module designed for use in the ABB S800 I/O Systems. This module provides 8 differential input channels capable of measuring Thermocouple (TC) or millivolt (mV) signals, with an exceptional resolution of 15 bits. The AI835A supports various Thermocouple types including B, C, E, J, K, N, R, S, and T, along with additional types D, L, and U specifically for AI835A. It also has the ability to designate one channel (Channel 8) as a Cold Junction (CJ) channel for temperature measurements, providing highly accurate monitoring for a wide range of temperature inputs.

Key Features & Benefits

  • 8 Differential Input Channels: Capable of handling Thermocouple or mV signals with a variety of Thermocouple types (B, C, E, J, K, N, R, S, T, D, L, and U for AI835A).
  • Cold Junction Compensation: Channel 8 can be configured as a Cold Junction (CJ) measurement channel, offering flexibility in local or remote temperature measurement.
  • High Accuracy: The module offers a high-resolution 15-bit A/D conversion, ensuring precise and accurate temperature readings.
  • Wire Break Detection: Monitors input channels for wire-break or open-circuit conditions, enhancing reliability.
  • Temperature Drift: Minimal temperature drift of typical 5 ppm/°C, ensuring stable operation across temperature variations.
  • Fast Update Cycle: Efficient update cycle time of 280 ms (50 Hz) or 250 ms (60 Hz), optimized for quick data acquisition.

Technical Specifications

Parameter Value
Input Channels 8 Differential Channels
Input Types Thermocouple (TC) and mV
Supported TC Types B, C, E, J, K, N, R, S, T (AI835A: D, L, U)
Resolution 15-bit A/D Conversion
Input Impedance > 1 MΩ
Isolation Groupwise isolated from ground
Error Max. 0.1%
Temperature Drift Typ. 5 ppm/°C, Max. 7 ppm/°C
Update Cycle Time 280 + 80 * (number of active channels) ms (50 Hz)
Maximum Field Cable Length 600 meters (656 yards)
CMRR (50Hz, 60Hz) 120 dB
NMRR (50Hz, 60Hz) > 60 dB
Rated Insulation Voltage 50 V
Dielectric Test Voltage 500 V a.c.
Power Dissipation 1.6 W
Current Consumption (+5V) 75 mA
Current Consumption (+24V) 50 mA
External Current Consumption 0
Dimensions 45 x 102 x 119 mm
Weight 0.22 kg

Applications

  • Industrial Automation: Ideal for systems requiring accurate temperature measurement and signal conversion from various Thermocouples.
  • Process Control: Used in chemical plants, refineries, and other process industries for temperature monitoring and control.
  • Energy and Utilities: Suitable for monitoring temperature in power plants, oil and gas facilities, and energy distribution systems.
  • Research and Development: Provides high-precision temperature measurement in laboratories and testing environments.

Advantages

  • Versatility in Input Types: Supports a wide range of Thermocouple types and mV signals, making it highly adaptable to various applications.
  • Cold Junction Compensation: Allows for precise ambient temperature measurements, enhancing the accuracy of Thermocouple readings.
  • High Precision: With 15-bit resolution, it offers exceptional accuracy for temperature measurements, ensuring reliable data.
  • Compact and Robust: The module’s small form factor and robust design make it suitable for harsh industrial environments.
  • Efficient Power Consumption: The low power dissipation ensures energy efficiency and reliable operation over long periods.
  • Flexible Channel Configuration: Channel 8 can serve as a Cold Junction (CJ) or as a regular input channel, providing flexibility in different scenarios.

Popular Related ABB Models

Model Description Key Features
AI820A Analog Input Module for voltage signals 16 input channels, 12-bit resolution
AI830A Analog Input Module for RTDs High accuracy, supports RTD inputs
AI850A Analog Input Module for thermocouples 8 channels, supports TC types B, K, S
AI815A Analog Input Module for mV signals 16 mV input channels, 14-bit resolution
AI831A Advanced Analog Input Module Supports 8 RTD/TC inputs
AI853A Analog Input Module for temperature RTD/TC input, 15-bit resolution
AI821A High-speed Analog Input Module 12 channels, fast update rate
AI845A Multi-channel Analog Input Module Multi-signal support, 8 channels
AI840A Analog Input Module for multi-signals Configurable for RTD and TC
AI805A Temperature Measurement Module Supports up to 8 TC/RTD inputs

ABB Popular Models

Model Description Key Features
SPMCS01 Multi-Function Processor Module High-speed processing, flexible I/O
SPSED01 Digital Input Module 24 channels, isolated inputs
SPNPM22 Network Processing Module Ethernet-based communication, 32 I/O
SPCNC02 Controller Module Full control capabilities
SPHMI01 Human Machine Interface High-resolution touchscreen interface
SPFCS01 Frequency Counter Module High-frequency processing, accurate
IMMFP02 Multi-Function Processor High-speed, multi-function support
INNIS11 Communication Interface Reliable data transfer, fast updates
SPXCO01 Analog Output Module High-quality signal output
SPINP01 Network Input Module Supports various input types
FAQ

FAQs

Q1: What types of Thermocouples are supported by the AI835A module?
A1: The AI835A supports Thermocouple types B, C, E, J, K, N, R, S, T, and additionally D, L, and U for AI835A.

Q2: Can Channel 8 be used for Cold Junction (CJ) measurements?
A2: Yes, Channel 8 can be configured as a Cold Junction (CJ) channel to measure ambient temperature for Channels 1-7.

Q3: What is the resolution of the AI835A module?
A3: The AI835A module has a 15-bit A/D resolution, providing high precision in temperature measurements.

Q4: How long can the field cables be for the AI835A module?
A4: The maximum field cable length is 600 meters (656 yards).

Q5: What is the update cycle time for the AI835A?
A5: The update cycle time is 280 ms at 50 Hz, or 250 ms at 60 Hz, with additional time for active channels.

Q6: What is the power consumption of the AI835A?
A6: The module has a power dissipation of 1.6 W and current consumption of 75 mA at +5V, and 50 mA at +24V.

Q7: How is wire-break detection implemented in the AI835A?
A7: The AI835A monitors all input channels for wire-break or open-circuit conditions to ensure reliable operation.

Q8: What are the temperature drift specifications for the AI835A?
A8: The typical temperature drift is 5 ppm/°C, with a maximum of 7 ppm/°C.

Q9: Can the AI835A be used for remote temperature measurement?
A9: Yes, Channel 8 can be used for remote temperature measurements through external connections.

Q10: What is the insulation voltage of the AI835A?
A10: The rated insulation voltage is 50 V, with a dielectric test voltage of 500 V a.c.
