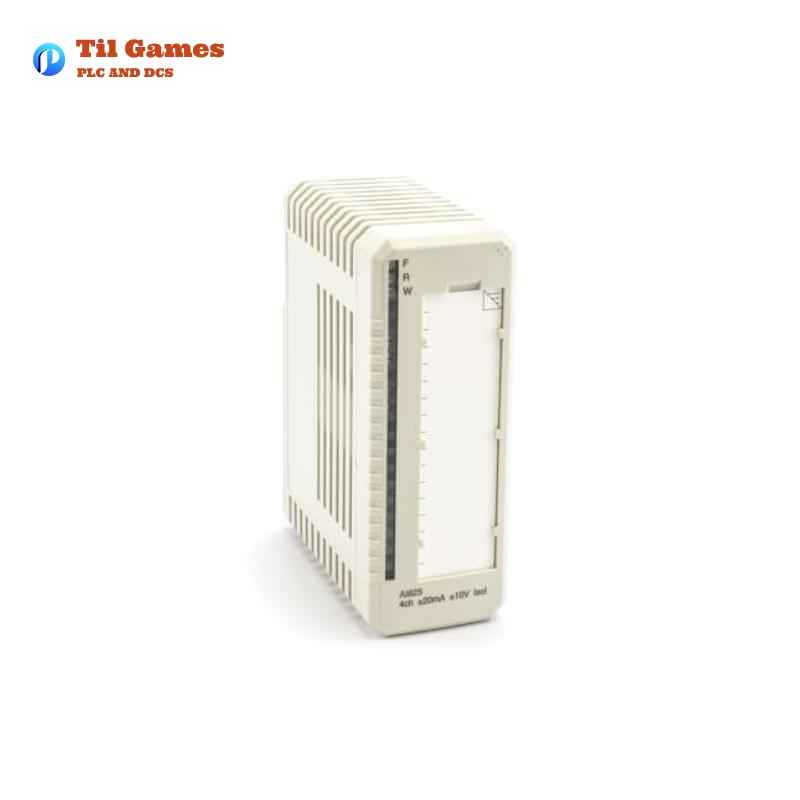

ABB AI825 3BSE036456R1 S800 I/O Systems Analog Input Module

ABB AI825 3BSE036456R1 S800 I/O Systems Analog Input Module

Manufacturer:ABB

Product Number:AI825 3BSE036456R1

Product Type:Analog Input Module

Origin:Sweden (SE)

Dimensions:45 x 102 x 119 mm

Weight:0.22 kg

Views:25

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/1-24.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/4-8.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/5-8.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3-5.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB AI825 3BSE036456R1 Analog Input Module – Product Overview

The ABB AI825 3BSE036456R1 is a high-performance analog input module designed for the ABB S800 I/O system. It provides four individually galvanic-isolated analog input channels, supporting bipolar current and voltage measurements. Each input channel can operate independently, allowing the module to be used in a variety of industrial applications requiring high accuracy, reliability, and robust input protection.

The AI825 module is specifically engineered for applications requiring HART communication compatibility, precise signal conversion, and protection against overvoltage and overcurrent conditions. With a 14-bit resolution plus sign, the module ensures accurate signal processing, making it suitable for demanding process automation and control environments.


Technical Specifications – ABB AI825

Specification Details
Product Name AI825 Analog Input Module
Part Number 3BSE036456R1
System Compatibility ABB S800 I/O
Number of Channels 4 Individually Galvanic-Isolated Inputs
Input Types Voltage & Current
Current Input Ranges +20 mA, 0–20 mA, 4–20 mA
Voltage Input Ranges +10 V, 0–10 V, 2–10 V
Resolution 14-bit + Sign
Input Resistance Current Input: 50 Ω, Voltage Input: 1 MΩ
Input Protection Shunt Resistor Protected to 30 V DC
HART Communication Supported
Power Supply Derived from 24 V ModuleBus
Operating Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Humidity 5%–95% (Non-Condensing)
Shock & Vibration Resistance IEC 60068-2 Compliant
EMC Compliance IEC 61000-6-2, IEC 61000-6-4
Housing Material Industrial-Grade Plastic
Mounting DIN Rail Mountable
Dimensions 45 x 102 x 119 mm
Weight 0.22 kg

Applications of ABB AI825

The ABB AI825 is widely used in industrial automation and process control systems. Key applications include:

  1. Process Industry – Used in chemical, pharmaceutical, and food processing plants for precise monitoring of pressure, temperature, and flow sensors.

  2. Power Plants – Applied in thermal, hydro, and nuclear power stations for critical analog signal processing.

  3. Oil & Gas Industry – Suitable for pipeline monitoring, refinery process control, and offshore drilling systems.

  4. Water & Wastewater Treatment – Used in water level, turbidity, and pH measurement applications.

  5. Manufacturing & Robotics – Integrated in automated manufacturing lines and robotics for precision signal acquisition.

  6. HVAC Systems – Employed in climate control and building management systems for monitoring temperature and pressure sensors.


Advantages of ABB AI825

  • High Signal Accuracy – With a 14-bit resolution plus sign, it ensures precise analog input measurement.

  • Galvanic Isolation – Each channel is individually isolated, reducing electrical noise and preventing ground loops.

  • Versatile Input Ranges – Supports multiple voltage and current input ranges, offering flexibility in application.

  • Robust Input Protection – Can withstand up to 30V DC to protect against accidental overvoltage conditions.

  • HART Communication Compatibility – Allows integration with smart field devices for enhanced diagnostics and control.

  • Compact & Lightweight Design – Measuring 45 x 102 x 119 mm and weighing 0.22 kg, it is ideal for space-constrained installations.

  • DIN Rail Mounting – Easy to install and integrate into existing control panels.


Latest News & Reports on ABB AI825

  1. “ABB Enhances S800 I/O System with AI825: A New Standard for Process Automation”
  2. “AI825: Improving Industrial Efficiency with High-Resolution Analog Inputs”
  3. “ABB Expands HART-Compatible I/O Modules with the AI825 Analog Input Module”
  4. “Industrial Automation Trends: How ABB’s AI825 is Shaping the Future”
  5. “Reducing Downtime in Critical Systems with ABB’s Advanced AI825 Module”

Related ABB S800 I/O Modules

Model Description
AI830A 8-Channel Analog Input Module
AI835A 8-Channel High-Accuracy Analog Input Module
AI810 8-Channel Isolated Analog Input Module
AI880A 8-Channel HART Analog Input Module
AO845A 8-Channel Analog Output Module
DI810 16-Channel Digital Input Module
DO840 16-Channel Digital Output Module
PM861A High-Performance Processor Module
TU830V1 Compact S800 I/O Terminal Unit
AI895 8-Channel Thermocouple Input Module

Popular ABB Modules Across Various Systems

Model Series Description
PM864AK01 AC 800M CPU with Redundancy Support
CI854A AC 800M PROFIBUS DP Communication Module
AI895 S800 I/O Thermocouple Input Module
AO820 S800 I/O 4-Channel Analog Output Module
AI810 S800 I/O 8-Channel Analog Input Module
INNIS21 Infi 90 Network Interface Module
IMMFP02 Infi 90 Multi-Function Processor Module
SPNPM22 Infi 90 Network Processing Module
SPSED01 Infi 90 Digital Input Module
SPFCS01 Infi 90 Frequency Counter Module
FAQ

Frequently Asked Questions (FAQ) for ABB AI825

Q1: What is the input type supported by AI825?

A: The AI825 supports both voltage and current inputs, with bipolar measurement capability.

Q2: Does AI825 support HART communication?

A: Yes, it is HART-compatible, allowing integration with smart field devices.

Q3: What is the resolution of AI825?

A: It has a 14-bit resolution plus sign, ensuring high-accuracy signal processing.

Q4: How is the module powered?

A: It is powered via the 24V ModuleBus, eliminating the need for an external power supply.

Q5: What protection features does the AI825 have?

A: It features input shunt resistor protection up to 30V DC and overcurrent protection via a PTC resistor.

Q6: Can the AI825 be mounted on a DIN rail?

A: Yes, it is DIN rail mountable for easy installation.

Q7: What is the operating temperature range?

A: It operates within -25°C to +70°C.

Q8: How many input channels does AI825 have?

A: It has 4 individually galvanic-isolated channels.

Q9: What are the dimensions and weight of the module?

A: The module measures 45 x 102 x 119 mm and weighs 0.22 kg.

Q10: What communication standards does the AI825 comply with?

A: It meets IEC 61000-6-2 and IEC 61000-6-4 EMC standards.
