Product Introduction

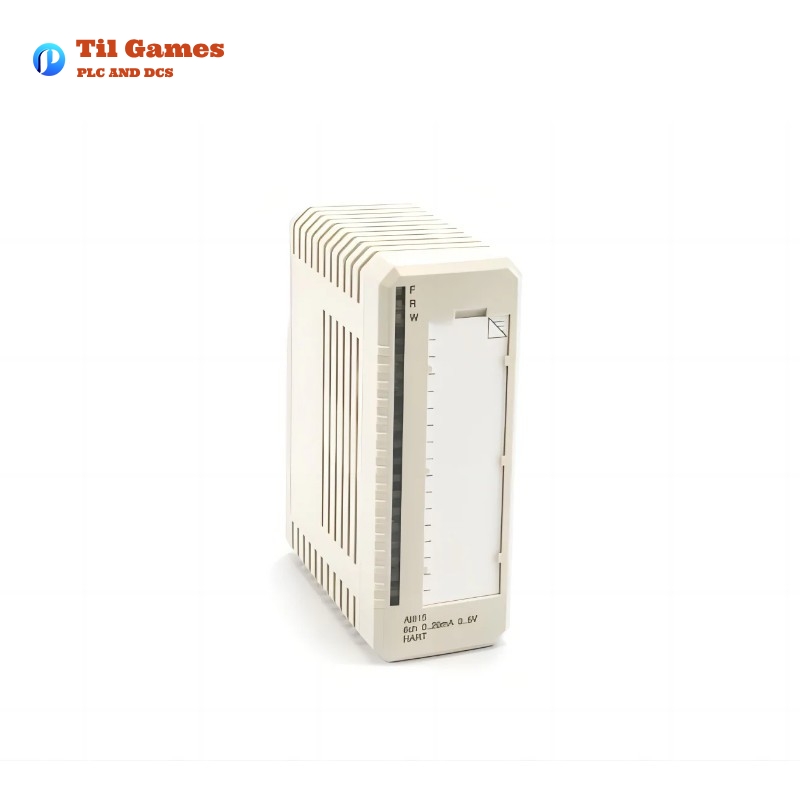

The ABB AI815 Analog Input Module is a high-performance input module designed for the S800 I/O system, providing accurate and reliable data acquisition for industrial automation applications. The module features 8 single-ended analog input channels that can be configured for either voltage or current measurement. It supports a variety of standard signal ranges, including 0–20 mA, 4–20 mA, 0–5 V, and 1–5 V DC.
Designed for flexibility and ease of use, the AI815 module distributes external HART-compatible transmitter power to each channel, simplifying wiring for 2-wire and 3-wire transmitters. It also includes built-in supervision to ensure reliable performance and prevent overload conditions. With a 12-bit resolution, it provides high accuracy in signal acquisition for critical control applications.
The AI815 module is part of ABB’s S800 I/O system, a modular and distributed I/O solution designed for use in process control, factory automation, and other industrial environments requiring high reliability and performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | AI815 Analog Input Module |
| Manufacturer | ABB |
| Product Code | 3BSE052604R1 |
| Number of Channels | 8 |
| Input Signal Ranges | 0–20 mA, 4–20 mA, 0–5 V, 1–5 V DC |
| Input Type | Single-ended, unipolar |
| Input Resistance | >10 MΩ (Voltage input), 250Ω (Current input) |
| Resolution | 12-bit |
| Isolation | 1 group of 8 channels isolated from ground |
| Overvoltage Protection | At least 11 V DC |
| Transmitter Supply | Current-limited, per channel |
| HART Compatibility | Yes, with pass-through communication |
| Power Consumption | 0.8 W |
| Dimensions (W x H x D) | 45 x 102 x 119 mm |
| Weight | 0.23 kg |
| Mounting Type | DIN Rail |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, ATEX, IECEx |
Product Applications
The ABB AI815 Analog Input Module is widely used in industrial automation for monitoring and control applications. It is particularly suitable for:
- Process Control Systems – Collects analog data from various sensors, such as pressure, temperature, and flow transmitters.
- Factory Automation – Supports precision monitoring and feedback loops for production lines and robotic systems.
- Energy & Utilities – Used in power plants and utility networks to measure critical parameters.
- Oil & Gas – Integrated into SCADA and DCS systems for pipeline and refinery monitoring.
- Water Treatment Plants – Monitors pH levels, turbidity, and flow rates in municipal water and wastewater treatment facilities.
- Pharmaceutical & Chemical Industries – Ensures accurate readings for quality control in manufacturing processes.
Advantages of AI815 Module
- Flexible Configuration – Supports both voltage and current input signals.
- High Accuracy & Resolution – 12-bit resolution ensures precise data acquisition.
- HART Compatibility – Enables direct integration with HART-enabled transmitters.
- Built-in Protection – Overvoltage and current-limited protection enhance reliability.
- Compact & Lightweight Design – Easy to install in space-constrained environments.
- Modular & Scalable – Easily integrates with ABB’s S800 I/O system for seamless expansion.
- Reliable Performance – Designed to operate in harsh industrial environments.
Latest News & Updates
- “ABB Enhances AI815 Module with Improved HART Communication for Industrial Automation”
- “ABB S800 I/O System Expands Its Analog Input Capabilities with AI815”
- “AI815 Now Certified for Expanded Use in Oil & Gas Applications”
- “ABB Digital Solutions Drive Efficiency with AI815 in Process Control Systems”
- “New Firmware Update for AI815 Enhances Signal Accuracy and Stability”
Related Models in the S800 I/O Series
| Model | Description |
|---|---|
| AI810 | 8-channel analog input module, basic version |
| AI820 | 4-channel high-accuracy analog input module |
| AI830A | 8-channel isolated analog input module |
| AI835A | 8-channel HART-enabled analog input module |
| AI845 | 8-channel RTD input module for temperature measurement |
| AI890 | 16-channel high-density analog input module |
| AO810 | 8-channel analog output module |
| AO820 | 4-channel high-precision analog output module |
| DI810 | 16-channel digital input module |
| DO810 | 16-channel digital output module |
Top 10 Popular ABB Models
| Model | Description |
|---|---|
| AC800M | High-performance process controller |
| PM864A | Powerful CPU module for control applications |
| CI854A | PROFIBUS DP communication interface module |
| TU810V1 | Compact termination unit for I/O modules |
| INNIS21 | Infi-Net to Node communication interface |
| IMMFP02 | Multi-function processor module |
| SPSED01 | Digital input module for frequency signals |
| SPNPM22 | Network processing module |
| SPFCS01 | Frequency counter module |
| INNPM11 | Network processing module for Infi 90 systems |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of analog signals does the AI815 module support?
A1: The AI815 supports 0–20 mA, 4–20 mA, 0–5 V, and 1–5 V DC analog input signals, providing flexibility for various industrial applications.
Q2: Can AI815 be used with both 2-wire and 3-wire transmitters?
A2: Yes, the AI815 distributes an external HART-compatible transmitter supply to each channel, allowing easy connection to both 2-wire and 3-wire transmitters.
Q3: What is the resolution of the AI815 module?
A3: The module features a 12-bit resolution, ensuring accurate analog signal conversion and precise data acquisition.
Q4: Is the AI815 module suitable for HART communication?
A4: Yes, the AI815 supports HART pass-through communication, allowing seamless integration with HART-enabled devices and systems.
Q5: Can AI815 be used in applications that require electrical isolation?
A5: The module has one group of 8 channels isolated from ground, but channels within the group are not isolated from each other. If individual channel isolation is required, other ABB models like AI830A should be considered.
Q6: What protection mechanisms are built into the AI815 module?
A6: The AI815 module includes overvoltage protection (at least 11 V DC) and current-limited transmitter supply, enhancing reliability and preventing damage due to unexpected electrical surges.
Q7: What are the input resistances for voltage and current signals?
A7: The input resistance for voltage input is greater than 10 MΩ, while for current input, it is 250 Ω, ensuring proper impedance matching for accurate measurements.
Q8: Can the AI815 module be used in safety-critical applications?
A8: Yes, AI815 is designed for industrial process automation and can be used in safety-critical applications, provided it is integrated within an appropriate safety system.
Q9: How does AI815 handle external power supply requirements for HART transmitters?
A9: If an external power supply is used, it must be HART-compatible to avoid communication issues with HART-enabled transmitters.
Q10: What ABB control systems are compatible with AI815?
A10: The AI815 module is fully compatible with ABB’s S800 I/O system, AC 800M controllers, and other ABB Distributed Control Systems (DCS).
