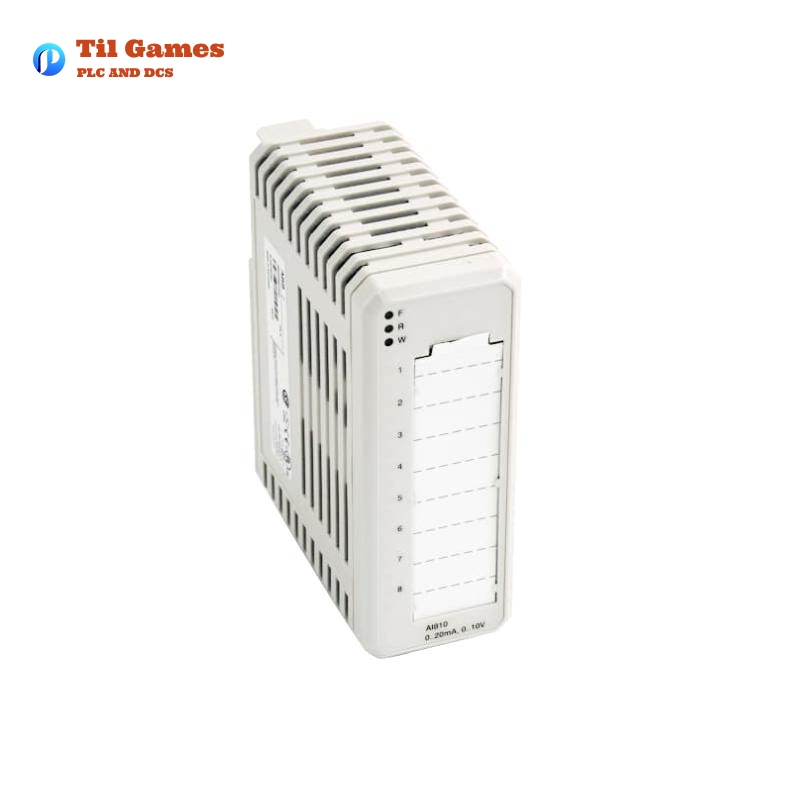

ABB AI810 3BSE008516R1 S800 I/O Systems Analog Input Module

ABB AI810 3BSE008516R1 S800 I/O Systems Analog Input Module

Manufacturer:ABB

Product Number:AI810 3BSE008516R1

Product Type:Analog Input Module

Origin:Sweden (SE)

Dimensions:45 x 102 x 119 mm

Weight:0.2 kg

Views:29

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/1-20.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/2-9.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/abb-AI810-3BSE008516R1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AI810-3BSE008516R1-3.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Parameter Value
Model Number AI810
Part Number 3BSE008516R1
System Compatibility S800 I/O Systems
Number of Channels 8
Input Signal Types 0…20 mA, 4…20 mA, 0…10 V, 2…10 V (Single-ended, unipolar)
Resolution 12-bit
Input Impedance Voltage: 290 kΩ; Current: 230-275 kΩ (including PTC resistor)
Group Isolation Groupwise isolated from ground
Over/Under Range -5% / +15%
Error Max. 0.1%
Temperature Drift Voltage: 70 ppm/°C (typ.), 100 ppm/°C (max.); Current: 50 ppm/°C (typ.), 80 ppm/°C (max.)
Input Filter (Rise Time 0-90%) 140 ms
Update Cycle Time 8 ms
Current Limiting Transmitter power can be current limited by the MTU
Maximum Field Cable Length 600 meters (656 yards)
Maximum Input Voltage (Non-destructive) 30 V DC
NMRR (50Hz, 60Hz) > 40 dB
Rated Insulation Voltage 50 V
Dielectric Test Voltage 500 V AC
Power Dissipation 1.5 W
Current Consumption (+5V Modulebus) 70 mA
Current Consumption (+24V Modulebus) 40 mA
Current Consumption (+24V External) 0
Physical Dimensions (H x W x D) 45 x 102 x 119 mm
Weight 0.2 kg

Product Introduction

The ABB AI810 3BSE008516R1 is an 8-channel analog input module designed for the S800 I/O system. It is used for precise and reliable measurement of analog signals in industrial automation applications. The module supports both voltage and current inputs, making it versatile for various sensor and process control applications.

With 12-bit resolution, it provides accurate data acquisition. The groupwise isolation from the ground enhances safety and reliability, while the short circuit protection ensures durability. The AI810 can withstand over-voltage and short circuits up to 30 V DC, making it a robust and reliable choice for demanding industrial environments.


Product Applications

The ABB AI810 Analog Input Module is used in various industrial automation applications, including:

  • Process Control Systems – Ideal for collecting and processing sensor data in industries like oil & gas, chemical plants, and power generation.
  • Factory Automation – Used for monitoring and controlling manufacturing processes in industries such as automotive, pharmaceuticals, and electronics.
  • Building Automation – Applied in HVAC (Heating, Ventilation, and Air Conditioning) systems for environmental monitoring.
  • Power Plants – Used in energy generation and distribution for precise data acquisition.
  • Water and Wastewater Treatment – Helps monitor and control water levels, chemical dosages, and system efficiency.

Product Advantages

  • High Accuracy & Precision – 12-bit resolution ensures reliable and precise signal processing.
  • Versatile Signal Input – Supports both voltage and current input types, accommodating various sensors and transducers.
  • Robust Short Circuit Protection – The PTC resistor protection secures the module against damage from short circuits.
  • Enhanced Electrical SafetyGroupwise isolation minimizes interference and enhances reliability.
  • Fast Response Time – An update cycle time of 8 ms ensures real-time signal processing.
  • Long Cable Support – Can handle field cables up to 600 meters, making it suitable for large-scale industrial applications.
  • HART Communication Support – Enables seamless communication with smart transmitters and sensors.
  • Compact & Lightweight Design – Small form factor (45 x 102 x 119 mm, 0.2 kg) ensures easy installation.
