Technical Specifications
| Parameter | Description |
|---|---|

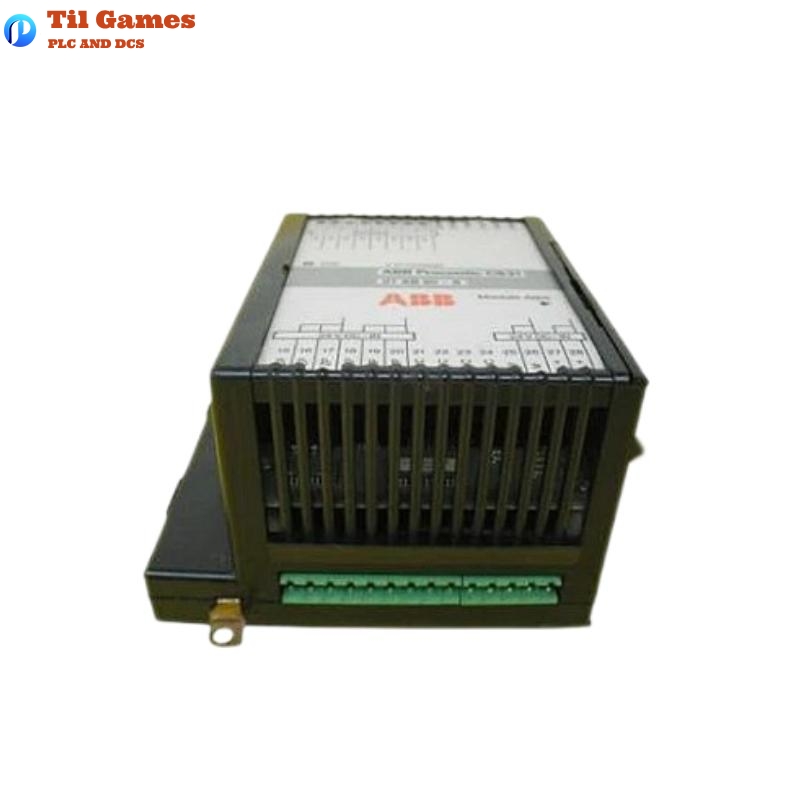

| Module Type | Analog Input Module (Safety-related) |
| Model Number | 07EA90 / 07 AI 90-S |
| Input Channels | 4 analog inputs |
| Input Signal Range | 4…20 mA |
| Bus System | CS31 system bus |
| CS31 Bus Address Range | EW00.00 to EW05.15 (1 word per module) |
| Occupied Bus Addresses | 1 word address per module |
| Bus Transmission Time | 1050 µs |
| Maximum Modules per Bus Line | 6 (Addresses 00–05 available) |
| Power Supply Voltage | 24 V DC (+20%, -15%) |
| Mounting Method | DIN rail (DIN EN 50022) or screw mounting |
| Connection Type | Screw-type removable terminal blocks |
| Conductor Cross-Section | Max. 2.5 mm² |
| Degree of Protection | IP20 |
| Operating Temperature Range | 0 °C to +55 °C |
| Storage Temperature Range | -25 °C to +75 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Vibration Resistance | 10–57 Hz: 0.0375 mm / 57–150 Hz: 0.5 g |
| Shock Resistance | 15 g, 11 ms (half-sinusoidal pulse) |
| Insulation Test Voltage | 500 V (24 V circuits) |
| Electromagnetic Compatibility | EN 61000-4-x compliant |
| Dimensions (W x H x D) | 120 mm x 140 mm x 85 mm |
| Weight | 0.59 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 07EA90 analog input module?
A1: The module is used to acquire four safety-related analog signals in the range of 4–20 mA and transmit them to the Advant Controller 31-S via the CS31 bus.
Q2: How many 07EA90 modules can be connected to one CS31 system bus?
A2: A maximum of six modules can be connected, occupying addresses EW00.00 to EW05.15.
Q3: What bus transmission time is associated with the 07EA90?
A3: The typical bus transmission time per 07EA90 module is 1050 microseconds.
Q4: Can the 07EA90 be mounted both on DIN rail and by screws?
A4: Yes, the module can be mounted on a DIN rail per DIN EN 50022 or fixed using screws.
Q5: Is the analog signal electrically isolated from the CS31 system bus?
A5: Yes, the analog input signals are electrically isolated from the CS31 bus interface for enhanced safety.
Q6: What is the required voltage supply for the 07EA90?
A6: The module operates on 24 V DC with a tolerance of +20% to -15%.
Q7: Are there special environmental conditions for operating the module?
A7: The operating temperature range is 0 °C to 55 °C, and the module must be used in environments with 5% to 95% non-condensing humidity.
Q8: How is the module protected against external influences like vibration and shock?
A8: The module is built to withstand vibration (up to 0.5 g) and shock (15 g, 11 ms) in compliance with industrial standards.
