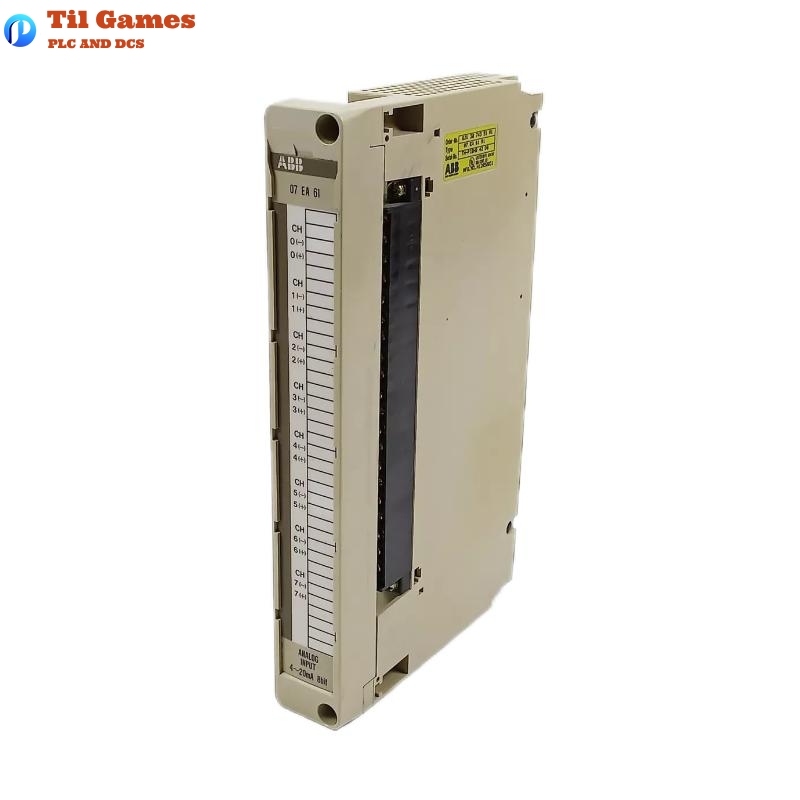

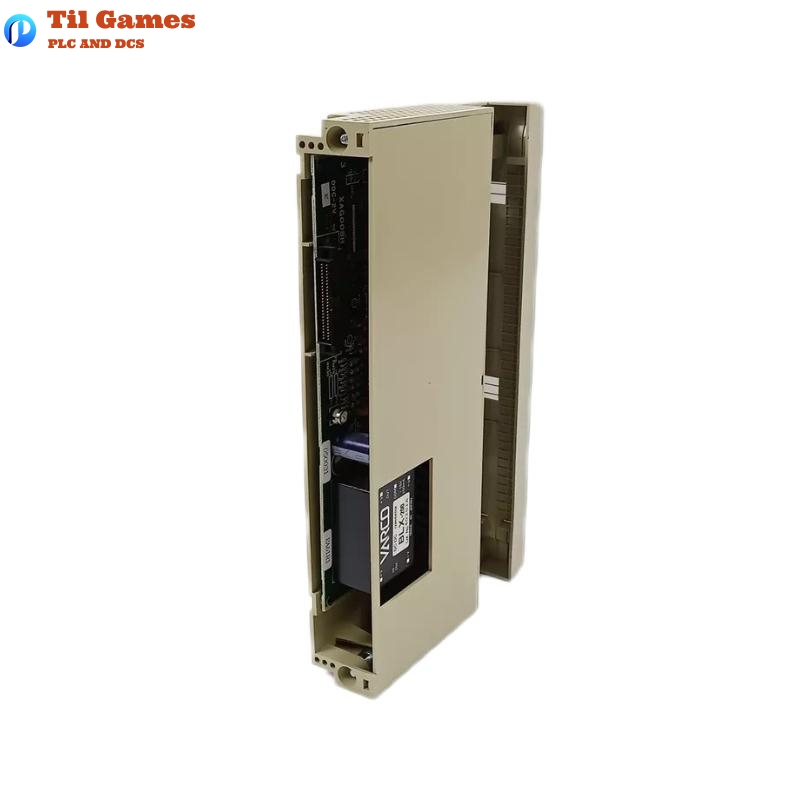

Technical Specifications – ABB 07EA61R1 Analog Input Module
| Parameter | Specification |
|---|---|
| Product Code | 07EA61R1 |
| Ordering Code | GJV3074351R1 |
| Module Type | Analog Input Module |
| Input Channels | 8 isolated channels |
| Input Signal Range | 4 to 20 mA |
| Resolution | 8-bit |
| Electrical Isolation | Yes |
| Power Supply | 24 V DC |
| Mounting Type | Slot-based installation in subrack |
| Connector Type | Front connector with screw-type terminals |
| Bus Connection | Integrated CS31 fieldbus |
| Operating Temperature | Standard industrial range (as per T200 systems) |
| Certifications | CE, UL, CSA |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Weight | 0.59 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What signal type does the 07EA61R1 module support?
A1: The 07EA61R1 module supports 4–20 mA analog input signals.
Q2: How many channels are available on the 07EA61R1 module?
A2: The module is equipped with 8 individually isolated analog input channels.
Q3: What is the resolution of the analog input conversion?
A3: The input resolution is 8-bit.
Q4: Is electrical isolation provided for each input channel?
A4: Yes, each channel is electrically isolated from the others and from the bus.
Q5: What is the recommended power supply voltage for this module?
A5: The module operates on a 24 V DC power supply.
Q6: Can this module be used in safety-related applications?
A6: No, the 07EA61R1 is not classified for safety-related systems; refer to modules like 07EA90-S for those requirements.
Q7: What type of installation is required for the 07EA61R1?
A7: It is designed for slot-based installation within ABB Procontic T200 subracks.
Q8: Which communication bus is used by this module?
A8: It uses the CS31 fieldbus for communication within the control system.
