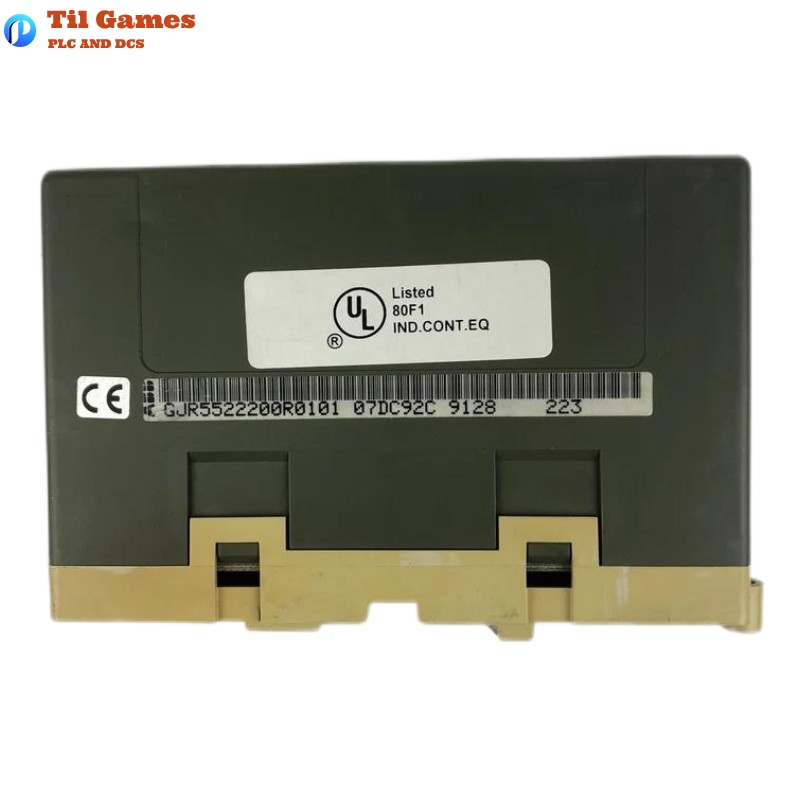

Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Digital Input/Output Module |
| Input/Output Channels | 32 configurable digital I/Os (24 V DC) |
| Grouping | 4 groups of 8 channels each |
| Channel Configuration | Individually configurable via user program (input/output/re-readable output) |
| Rated Signal Voltage | 24 V DC |
| Supply Voltage | 24 V DC |
| Maximum Load per Output | 0.5 A (500 mA) |
| Maximum Group Load | 4 A per group |
| Output Type | Transistor outputs, overload and short-circuit protected |
| Input Delay | Typically 7 ms |
| Input Voltage Recognition | Logic 0: -6 to +5 V (connected), -30 to +5 V (unconnected) Logic 1: +13 to +30 V |
| Input Current at 24 V | Typically 7.0 mA |
| Leakage Current at Logic 0 | < 0.5 mA |
| Switching Frequency (Inductive Load) | Max. 0.5 Hz |
| Switching Frequency (Lamp Load) | Max. 11 Hz (at 5 W) |
| Overload Detection | > 0.7 A (error indicated via LED and central report) |
| Short-circuit Protection | Yes, with automatic reset |
| Electrical Isolation | Between groups and from system |
| System Bus | CS31, RS-485 standard, electrically isolated |
| Diagnostic Features | LED indicators for each I/O, test button, overload/short-circuit indication |
| Addressing | Via DIL switch under slide cover |
| Mounting | DIN rail (15 mm height) or screw mounting (4 x M4) |
| Operation Temperature Range | 0 to 55 °C |
| Power Dissipation (Max, loaded) | 10 W |
| Connectors | Removable with screw terminals (1.5 mm² or 2.5 mm²) |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Weight | 0.45 kg (450 g) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can all 32 channels be configured as either input or output?
A1: Yes. Each of the 32 channels can be individually configured by the user program to operate as an input, an output, or a re-readable output.
Q2: How does the module protect against short-circuit or overload?
A2: Outputs are protected by thermal shutdown and current limiting. If the current exceeds 0.7 A, the output is deactivated and the error is signaled by a flashing LED.
Q3: Is manual acknowledgment required after an output short-circuit?
A3: No. Once the fault is corrected, the module automatically reactivates the output. However, the error message must be acknowledged.
Q4: What type of output does the 07DC92 module use?
A4: The module uses transistor-type outputs designed to switch 24 V DC loads with up to 0.5 A per channel and 4 A per group.
Q5: Is the CS31 system bus connection galvanically isolated?
A5: Yes. The CS31 bus interface is electrically isolated from the rest of the module to ensure signal integrity and safety.
Q6: How is the module addressed in a system?
A6: The address is set using a DIL switch under the right-side slide cover. The module can occupy input/output or output-only addresses depending on switch configuration.
Q7: What diagnostic functions are available on this module?
A7: The module includes LED indication per channel, a red error LED, and a test button to scroll through diagnostic states. Errors such as overloads and communication faults are reported.
Q8: Can the module be mounted in any orientation?
A8: The recommended mounting is vertical, with connectors facing up and down, to ensure proper convection cooling within the control cabinet.
