Technical Specifications
| Parameter | Specification |
|---|---|

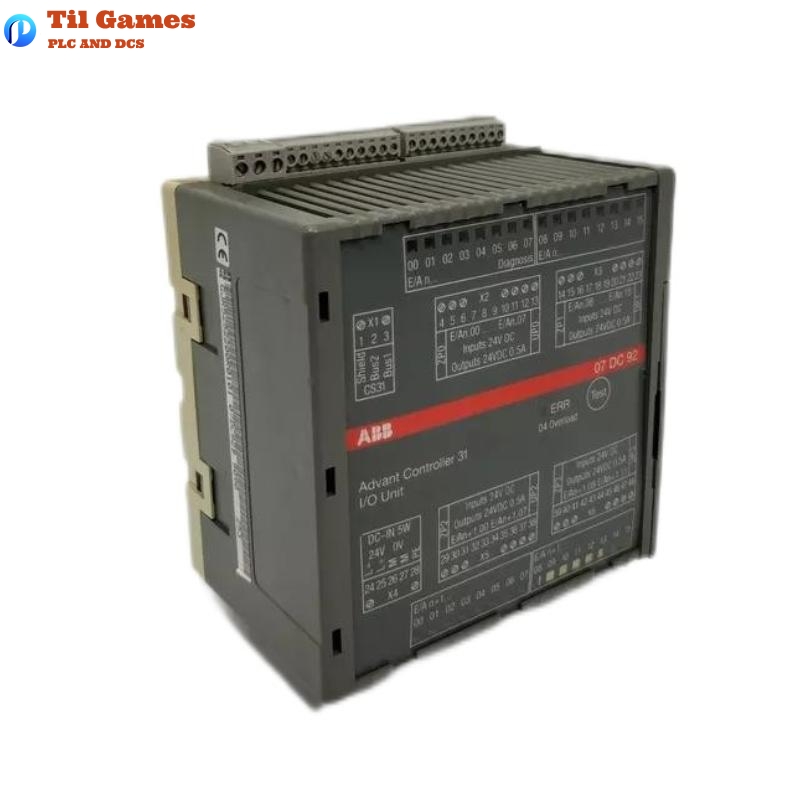

| Product Type | Digital Input/Output Module |
| Model Number | 07DC92 |
| ABB Order Code | GJR5252400R0101 |
| Number of Channels | 32 configurable channels (input/output) |
| Channel Grouping | 4 groups with 8 channels each |
| I/O Type | Digital (configurable as input, output, or re-readable output) |
| Supply Voltage | 24 V DC |
| Max. Current per Output | 500 mA |
| Max. Group Load Current | 4 A per group |
| Output Protection | Short-circuit and overload protection |
| Max. Switching Frequency | 0.5 Hz (inductive load), 11 Hz (lamp load at 5 W) |
| Electrical Isolation | Between groups, I/O, and system bus |
| Input Voltage Range | 0 signal: -6…+5 V, 1 signal: +13…+30 V |
| Input Delay | Typ. 7 ms |
| Output Leakage Current | < 0.5 mA at 0 signal |
| System Bus Interface | CS31 (EIA RS-485 standard, isolated) |
| Addressing | Via DIL switch under side cover |
| Diagnostic Functions | Short-circuit, overload, bus fault, internal error |
| LEDs | 32 yellow for channel status, 1 red for error |
| Mounting | DIN rail (EN 50022-35) or 4 M4 screws |
| Cooling Method | Natural convection |
| Connectors | Removable, screw-type terminals |
| Max. Conductor Cross Section | Signal: 1.5 mm², Power/Bus: 2.5 mm² |
| Power Dissipation | 5 W (no load), 10 W (full load) |
| Max. Current Consumption | 0.15 A (no load) |
| Dimensions (W x H x D) | 120 × 140 × 85 mm |
| Weight | 0.59 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many I/O channels does the 07DC92 module support?
A1: The module supports 32 configurable digital channels, which can function individually as inputs, outputs, or re-readable outputs.
Q2: Can each I/O group be isolated from the others?
A2: Yes, the module provides electrical isolation between the four I/O groups and also from the rest of the unit and the CS31 system bus.
Q3: What is the rated output current per channel?
A3: Each output channel is rated for 500 mA. The total maximum current per group is 4 A.
Q4: How is addressing configured on the 07DC92 module?
A4: Addressing is configured using a DIL switch located under a sliding cover on the right side of the housing.
Q5: What happens if there is a short circuit on an output?
A5: The module automatically limits the current, disables the output, and indicates the fault with a flashing LED. After the issue is corrected, the output is re-enabled automatically.
Q6: Is it necessary to supply voltage to the UPx terminals if all channels are used as inputs?
A6: No, if all channels in a group are configured as inputs, supplying voltage to UPx is not required.
Q7: How is diagnostic information accessed on the module?
A7: Diagnostic information can be accessed using the test button on the front panel. LEDs indicate error type and location.
Q8: What mounting options are available for the 07DC92 module?
A8: The module can be mounted either on a DIN rail (15 mm height) or using 4 M4 screws.
