Technical Specifications
| Parameter | Description |
|---|---|

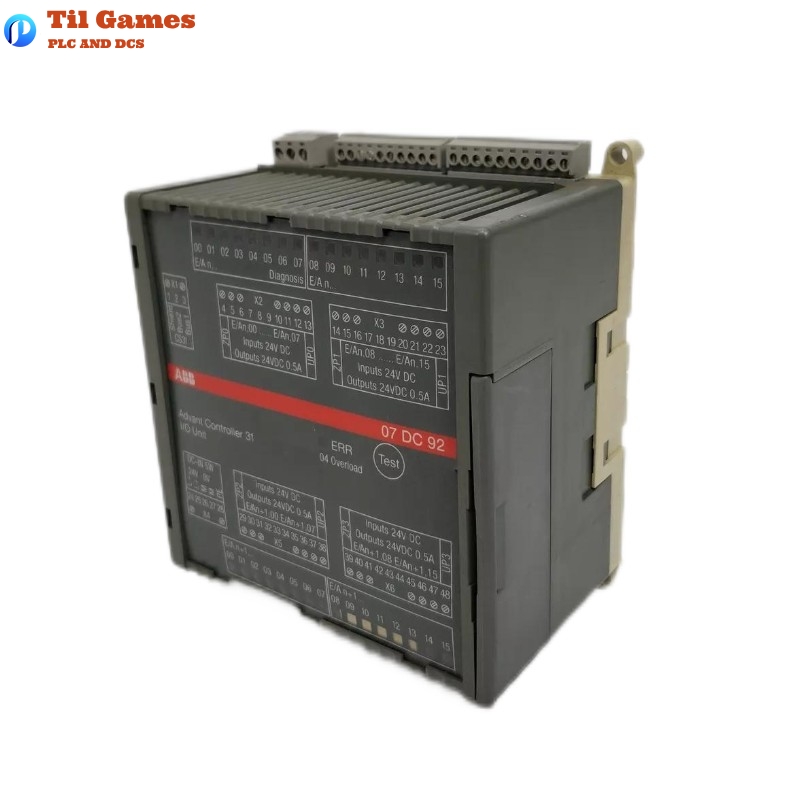

| Model Number | 07DC92 GJR5252400R0101 |
| Type | Digital Input/Output Module |
| Number of Channels | 32 configurable digital I/Os (used as input, output, or re-readable output) |
| Channel Grouping | 4 groups of 8 channels (electrically isolated) |
| Signal Voltage (Input/Output) | 24 V DC |
| Input Delay | Typical 7 ms |
| Output Type | Transistor outputs |
| Output Current per Channel | 0.5 A nominal, max. 4 A per group |
| Short-Circuit/Overload Protection | Yes, with automatic recovery |
| Short-Circuit Threshold | > 0.7 A (shutdown after approx. 100 ms) |
| Power Supply Voltage | 24 V DC |
| Current Consumption (No Load) | 0.15 A |
| Max. Power Dissipation (No Load) | 5 W |
| Max. Power Dissipation (With Load) | 10 W |
| I/O Signal Indication | 32 yellow LEDs (1 per channel) |
| Error Indication | 1 red LED |
| Diagnostic Test | Test button with LED indication per channel |
| Bus System | CS31 system bus (EIA RS-485 standard) |
| Electrical Isolation | Group-to-group, bus-to-I/O, bus-to-power supply |
| Mounting Options | DIN rail (15 mm deep) or 4 x M4 screws |
| Conductor Cross Section | Max. 2.5 mm² (power, bus), Max. 1.5 mm² (signals) |
| Operating Temperature Range | 0 to 55 °C |
| Cooling Method | Natural convection (must not be obstructed) |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many channels can the ABB 07DC92 module handle?
A1: The module supports 32 configurable digital channels, which can each be independently used as input, output, or re-readable output.
Q2: Are the input and output channels electrically isolated?
A2: Yes, the channels are divided into 4 groups, and each group is electrically isolated from the others and from the rest of the module.
Q3: What is the maximum current that can be drawn from each output?
A3: Each output channel can supply up to 0.5 A, with a total maximum of 4 A per group.
Q4: What kind of protection is provided against short circuits?
A4: The module includes protection against short circuits and overloads, with automatic shutdown at >0.7 A and automatic reactivation after the fault is cleared.
Q5: How is diagnosis performed on the module?
A5: Diagnosis is done using the built-in test button and LED indicators. Each channel can be tested individually, and overloads or errors are shown via the red LED and flashing yellow LEDs.
Q6: Can the module be mounted both horizontally and vertically?
A6: No, the module should be mounted vertically, with connectors facing upward and downward, to ensure proper natural convection cooling.
Q7: What type of system bus is used for communication?
A7: The 07DC92 module communicates via the CS31 system bus, based on the EIA RS-485 standard.
Q8: Does the module require manual reset after a short circuit is cleared?
A8: No manual reset is needed. The module automatically resumes normal operation after the fault condition is corrected.
